Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China

Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China thumbnail-1
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China thumbnail-2
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China thumbnail-3
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China thumbnail-4
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China thumbnail-5
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China thumbnail-6
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China photo-1
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China photo-2
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China photo-3
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China photo-4
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China photo-5
Introduction of QTJ4-26C Semi-automatic Concrete Block Making Machine Supplier in China photo-6
US$ 7,600 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hollow/paver Brick Making Machine
Brick Raw Material:
Cement
Contact Supplier Request Quote Chat Now
Shandong Shengya Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Hollow/paver Brick Making Machine
Brick Raw Material Cement
Processing Brick Production Line
Method Other, Moulding vibration
Automatic Other, Semi automatic
Capacity 4000-60000 Pieces/day
Place of Origin Shandong, China
Brand Name Shengya
Model Number QTJ4-26C
Voltage 220V/380V/440V
Power 21KW
Dimension(L*W*H) 3000*1600*2500mm
Certification CE/SGS/ISO9001
Warranty One Year
After-sales Service Provided Overseas service center available



Product Description

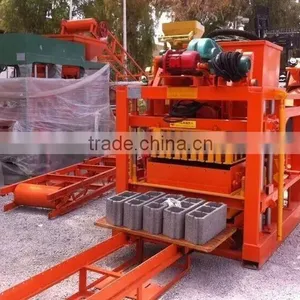

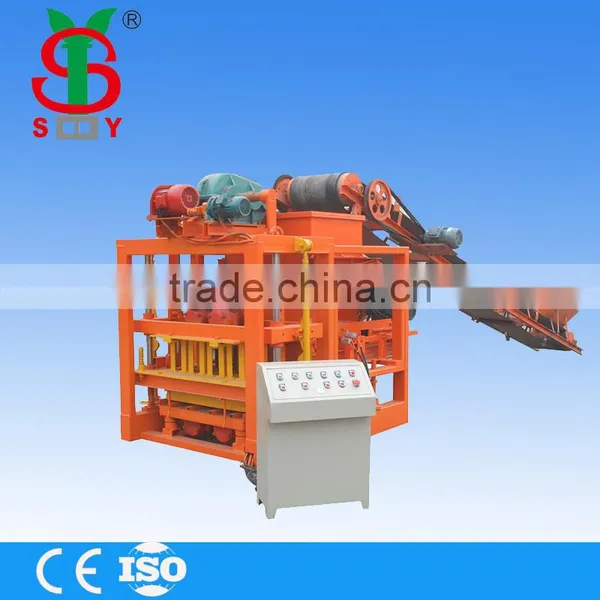

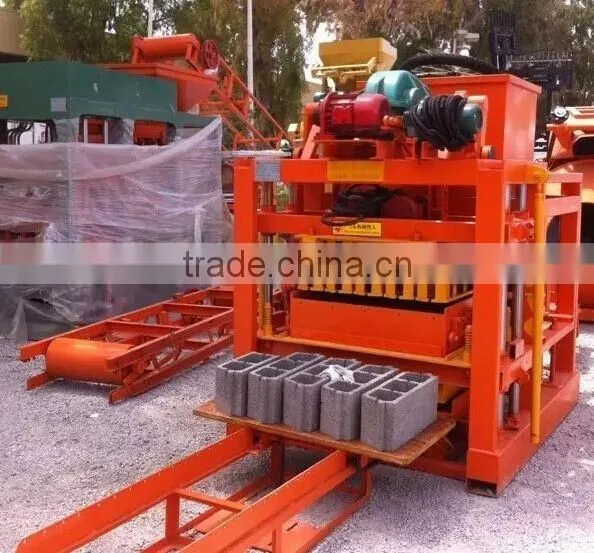

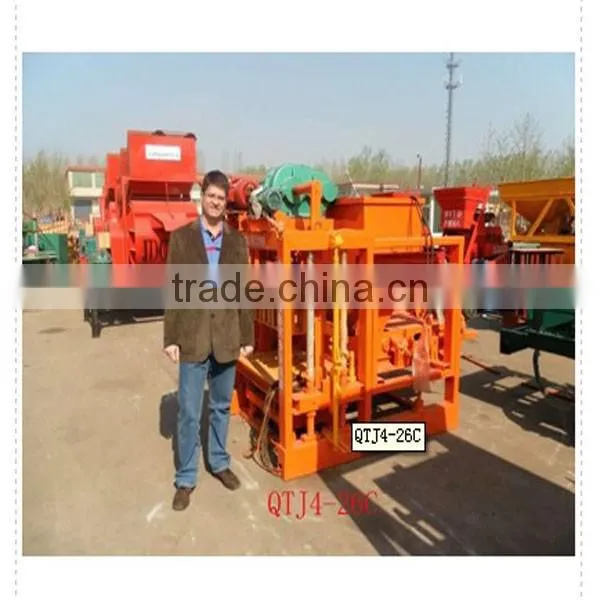

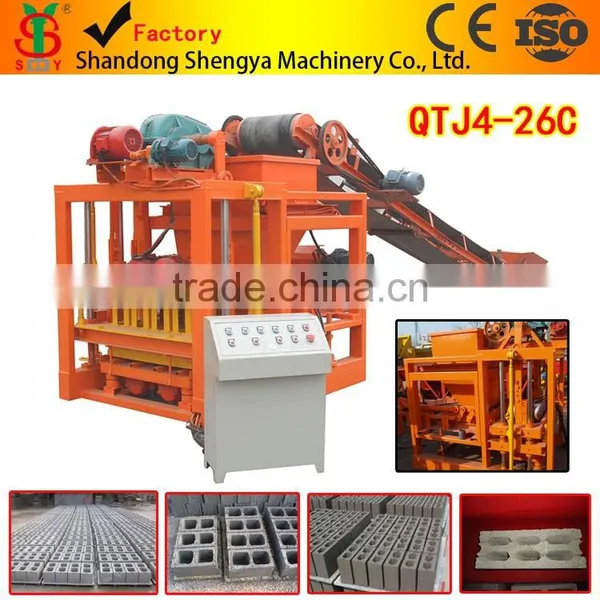

 Introduction of QTJ4-26C semi-automatic concrete hollow block making machine/cement brick making machine

QTJ4-26C is one kind of semi-automatic concrete hollow block machine, which is developed on the basis of small and medium model. The position-setting of the mould and the discharge head are more accurate. The down-mould adopts the vertical, directional vibrating device while the up-mould uses the pressure vibrating. So the blocks made by this machine are even, high in density and strength. Also the automatic material distributing system greatly increase the productivity.



Specification of QTJ4-26C semi-automatic concrete hollow block making machine/cement brick making machine

1)ProductName

QTJ4-26C block machine

2)Standards

ISO,CE,SGS

 3)Overall Size

3000(L)×1600(W)×2500(H)mm

4)Cycle

26 Seconds for one sheet

5)Production Capacity

400*200*200MM(4pcs/sheet)

400*150*200MM(5pcs/sheet)

 240*115*53MM(26pcs/sheet)

 6)Raw Material

Concrete, sand, cement

and others in your condition

7)Carriage Size

Plastic pallet   850(L)*470(W)*20(H)mm

Bamboo pallet  850(L)*470(W)*25(H)mm

8)Vibration Force

22KN

 9)Electrical Source

380V/50Hz/11.75KW

10)Weight

4000kg

11)Packing

Sheet iron or nude
