Specifications
PLD 1200 Concrete Batching Machine,1.Capacity of compound material box (L):1200L
2.material weighting system

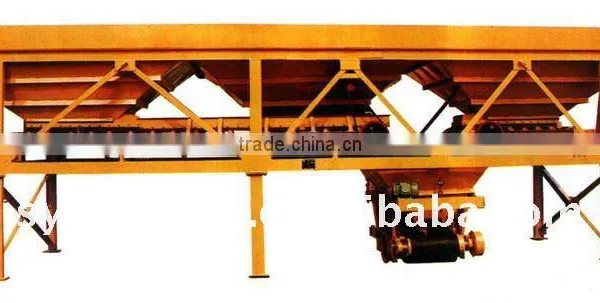

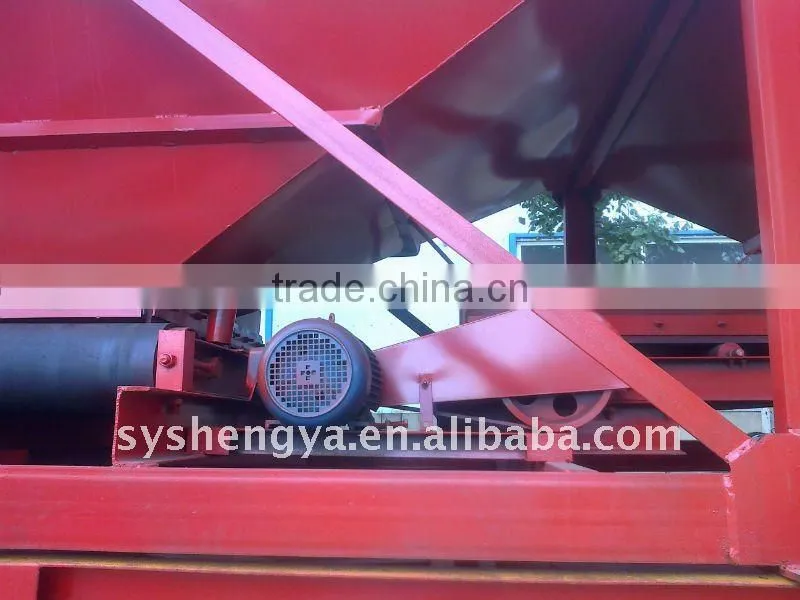

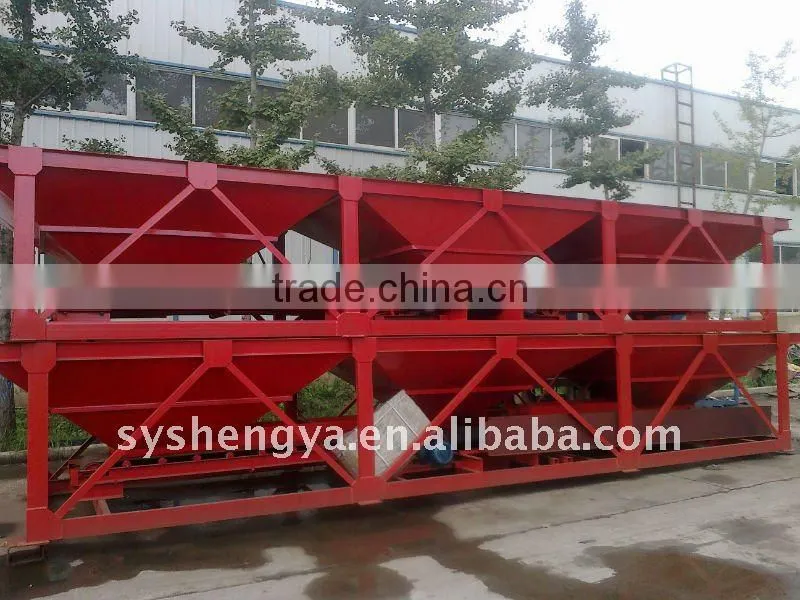

PLD 1200 Concrete Batching Machine,
The PLD Electronic Computation Material Compounding Machine is mainly used to match kinds of materials proportionally for live construction, which can be designed into four or more material boxes as clients 'demand. The controlling system of the machine adopts imported controller to provide its good and reliable performance, and conveyer passing way to make sure materials' high precision.
1) Cubage of weighing hopper: 1.2m3
2) Cubage of reserve hopper: 3 x 3m3
3) Productivity: 60m3/h
4) Batching precision: ± 2%
5) Max. Metage: 2000kg
6) Batching category: 3
7) Loading height: 2, 400mm
8) Measurement: Electronic weigher
9) Batching mode: Electronic strap (horizontal)
10) Unloading mode: Electronic strap (horizontal)
11) Power: 10.6kW
12) Weight: 3760kg
13) Dimensions: 8, 390 x 2, 000 x 2, 800mm
| Hopper volume | 1200L | ||
| Productivity | 72m 3 /h | ||
| Max. Cycle | 50s | ||
| Weighting Error | ≤1% | ||
| Roller Diameter | 160mm | ||
| Belt Width | 500mm | ||
| Belt Speed | 123m/min | ||
| Electric Engine | Y132S-6 3KW 960r/min |
