Specifications
pp low smoke zero halogen Flame retardant filler yarn1.v0
2.0.5mm--10mm
3.breaking tenacity>2g/D
4.halogen free

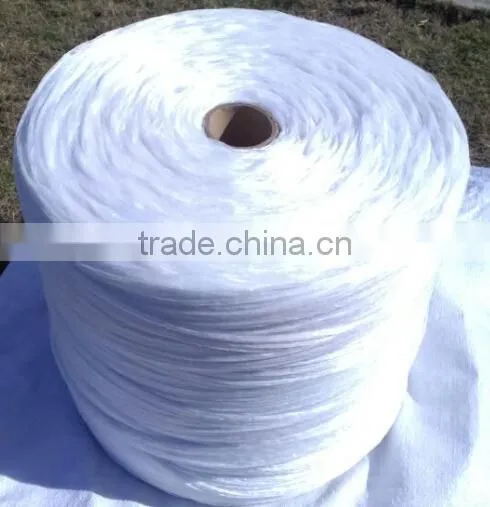

Low Smoke Zero Halogen Retardant PP Filler Yarn
New product- (LSOH) Low Smoke Zero Halogen Fire flame Retardant PP Filler Yarn
The product which replace glass fiber rope
Glass fiber rope and asbestos rope are mainly used for fire retardant cable filling marketing in the past 10 years. But they still exists some disadvantages, such like usability and environmental protection issues. Considering this marketing demand, we developed this (LSOH) Low Smoke Zero Halogen Fire Retardant Filler Yarn.
It using polypropylene as main raw material, with the feature of low smoke and zero halogen, it can be used for fireproof voltage cable filling and heatproof fire-resisting cable filling etc.
Other special features as below:
legible line and thickness, hypobarism, low smoke and halogen free, gentle to hand, cheap price and fire retardant etc.
Compared to glass fiber rope and asbestos rope:
Glass fiber rope: heavy property, high hardness, not environment-friendly ,contains halogen, not environment-friendly .
Asbestos rope: heavy property, ,easily broken ,contains asbestos, not environment-friendly .
| Compare: | |||||||
| Item | Diameter mm |
weight g/m |
LOI | Eco-Friendly | G/cm3 | Smole intensity | usability |
| Glass fiber | 2 | 4.5 | 30 | N | 4 | general | harmful |
| asbestos | 2 | 4.5 | 30 | N | 4 | general | No eco-friendly |
| PP fire retardent | 2 | 1 | 28 | Y | 0.92 | slight | convenient |
Flame retardant PP filler yarn
Specifications:
Item |
Unit |
General FR PP filler yarn |
LOW SMOKE FR PP filler yarn |
Denier |
D |
+/- 10% |
+/- 10% |
Density |
|
0.92 |
0.92 |
Tenacity |
g/D |
>2.0 |
2.5 |
Oxygen index |
|
28 |
28 |
Elongation |
% |
10 |
10 |
|
Heat shrinkage(100deg20min)
|
% |
5 |
5 |
Hologen |
|
>10000PPM |
<1000ppm |
Burning smoke |
|
Big smoke |
Less smoke |
Appearance |
Raw white,no obvious stain |
||
Package |
Mark:Product name, weight,denier,batch No. |
||
1. 100% PP filler yarn
2.cheap wire cable pp filler yarn with mixed caco3
or pp +Caco3 material,
3. pp twist wire cable pp filler yarn ,4---100TPM
4.FR wire cable pp filler yarn with Halogen , LOI :29---35
low smoke szero Halogen Flame retardant pp filler yarn
Our advantage:
A. The best price at good quality
B. Excellent service and prompt delivery
C. Effective and attractive packaging
wire cable pp filler yarn
| 100% pp , pp filler yarn Specificatioms | ||||||
| Item | Unit | standard | Remark | |||
| Fineness | D | specification±8% | 3000D-300000D | |||
| Breaking | g/d | >2 | ||||
| tenacity | ||||||
| Tensibility | % | <20 | ||||
| shrinkage | % | <6 | 120*30min | |||
| in hot air | ||||||
| Appearance | Natural Color or White,color | |||||
| obvious stations | ||||||
In a wide range of denier from 3000D to 300KD,Widely used in wire and cable.These are sold in shrink-wrapped coreless rolls,rolled on paper cores and capable of working with continuing throughout their length.
| pp+caco3 wire cable pp filler yarn Specificatioms | ||||||
| Item | Unit | standard | Remark | |||
| pp filler yarn Fineness | D | specification±8% | 3000D-300000D | |||
| pp filler yarn Breaking | g/d | >0.3,>1g/d | ||||
| tenacity | ||||||
| Tensibility | % | <20 | ||||
| shrinkage | % | <10 | 120*30min | |||
| in hot air | ||||||
| Appearance | Natural Color or White,No | |||||
| obvious stations | ||||||
5.high tenacity polyester yarn and polyester thread
| polyester sewing thread Spec. |
sewing thread weight (g/spool) |
sewing thread Length (Y/spool) |
|
840D/3 (0#) |
90 | 300----5000 |
|
630D/3 (5#) |
90 | 380----80000 |
|
500D/3 (10#) |
90 | 550---9000 |
|
250D/4 (20#) |
90 | 800-----12000 |
|
250D/3 (30#) |
90 | 1100---20000 |
|
250D/2 (40#) |
90 | 1600----25000 |
|
150D/3 (60#) |
90 | 1600------30000 |
|
120D/3 (80#) |
90 | 2100-----300000 |
6. aramid yarn:200D,400D,1000D,1500D,3000D
kelvar aramid yarn
aramid yarn is ahigh performance material,it comnines the characteristics of high strength and light weight. under the condition of equal weight,it is 5 times the strength of steel wire,2.5 times fiberglass.
ARAMID YARN PROPERTY
| aramid yarn Denier (D) |
aramid yarn Break Strength (kg) |
Klongation At Break (%) |
aramid yarn Modulus (g/D) |
1000 |
20 |
3.5 |
24.0 |
1500 |
32 |
3.8 |
24.0 |
400 |
9.5 |
3.3 |
24.0 |
20S/2 |
3 |
3.0 |
15.0 |
7. al-pet ,pp foamed tape
