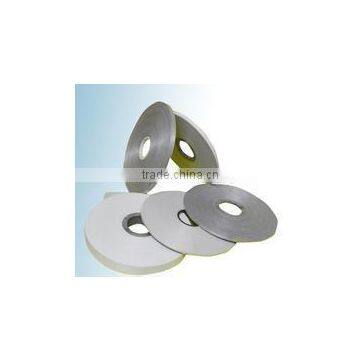

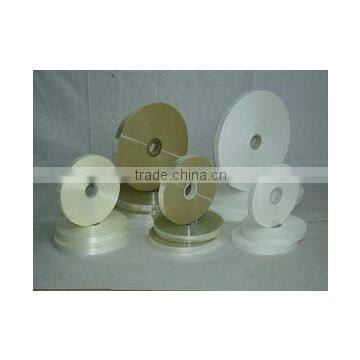

Mica tape
Mica Plate is mica lamination designed for providing outstanding electrical insulation at high temperature, which consist of approximate 90% Muscovite(or Phlogopite)and 10% temperature resistant silicone resin.
Prorerties
1. Excellent thermal resistance, muscovite mica retain insulation properties at 500℃ and phlogopite mica sheet resistant tem perature up to 750℃.
2. Excellent electric insulation, normally the breakdown voltage is more than 15KV/mm.
3. Excellent flexural strength and easy to be punched and machined.
4. Environmental safe. It is incombustible, asbestos and halogene free and does not create toxic gases.
| Item | Single side synthetic mica tape with glass fiber | ||
| tapy | 058 | ||
| thickness (mm) | 0.10±0.015 | 0.11±0.015 | 0.125±0.015 |
| quantitate (g/m²) | 125±12 | 148±12 | 173±12 |
| mica content (g/m²) | 80±5 | 100±5 | 120±5 |
| glass fiber content( g/m²) | 32±3 | 32±3 | 32±3 |
| resin content (g/m²) | 13±4 | 16±4 | 21±4 |
| distrubtive strength(kv/layer) | >1.0 | >1.2 | >1.4 |
| tensile strength(n/cm) | >100 | >120 | >120 |
Available
1. Thickness:0.1mm 0.15mm 0.2mm-100mm
- 2. Size:1000*600mm 1000*1200mm 1000*2400mm
Thickness below 2.0mm can be punched, while above 2.0mm can be machined by agreement.
Storage
No limitation under dry and room temperature.
