Centrifugal spinning machine for prestressed spun concrete electrical pole is a kind of mold equipment, which is used for producing reinforced concrete poles and other cement products with a variety of different diameter and length.
Centrifugal spinning machine for prestressed spun concrete pole is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes are good of quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are well sealed and reliable, long service. Random electric control equipment is complete and easy to operate.
Our Automatical Prestressed Concrete Spun Pole/pile Production Line can make pole/pile range from 6,7,8,9,12,15,16,30m,design according to your demand
Overview |

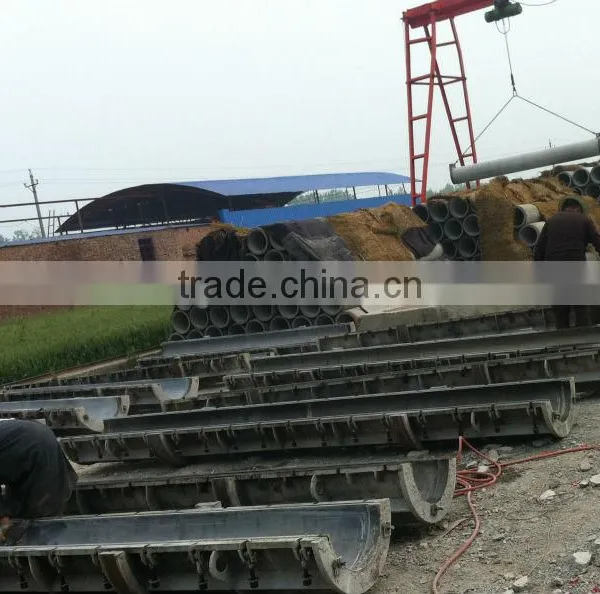

This machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products. |
Working Principle |
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect. |
Features |
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%). |
No. | Item | Unit | Types and forms of composition | |||
Double Riding Wheel | Three Riding Wheel | |||||
1 | Riding wheel trea d | MM | 2000 | 2000 | ||
2 | Riding wheel base | MM | 800 | 800 | ||
3 | Riding wheel external diameter | MM | 550 | 550 | ||
4 | Width of riding wheel | MM | 80 | 80 | ||
5 | The angle of center of riding wheel and wired of the center of steel mould α | (°) | 75°-110 | |||
6 | Max. Length of Molding Pole | M | 15 | 15 | ||
7 | Diameter of molded pole | Root apex of tapered pole | M | 550 | 550 | |
Equal-diameter pole | M | 500 | 500 | |||
8 | Motor Power | KM | 22 | 45 | ||
9 | Range of speed of drive shaft | r/min | 60-600 (continuously) | 60-600 (continuously) | ||
Technical Parameter
Item | Maximum dimension | Maximum dimension |
Pole/Pile Mold length | 43m (140’) | 3m (10’) |
Pole/Pile Mold diameter | 1m (3’) | 0.3m (1') |
Spinning wheel pitch | 2m, 3m | |
Number of mold per spinning machine | Single, double, and up to maximum six molds | |
Company: ShouGuang LinXi Economy and Trade Co., Ltd
Factory Address: West side ,3KM from north of the QINGZHOU train station
Address: Zone A,fudi center,south of the shengcheng street,west of the zhengyang road,shouguang city,shandong ,P.R China.
Mob:86-13793616696
Tel: 86-0536-5618188
Fax: 86-0536-5618188
Skype: pansy8054
