Specifications
1.wood tree debarker,wood tree debarker,2.is very easy to operate ,tree barking machine

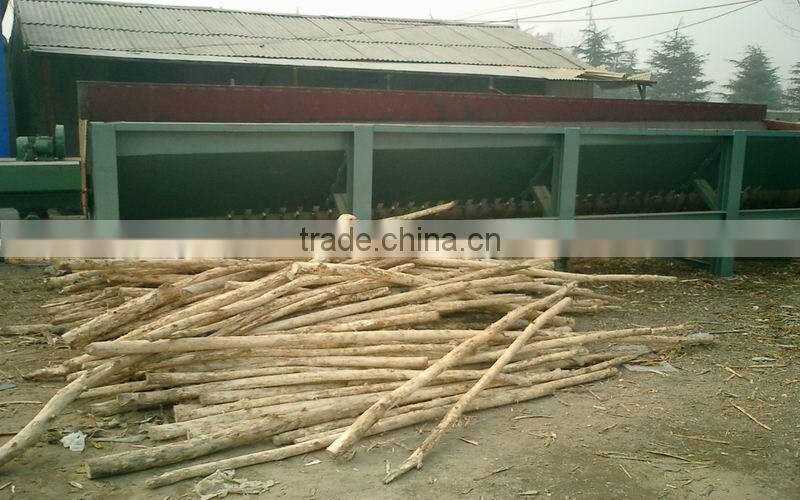

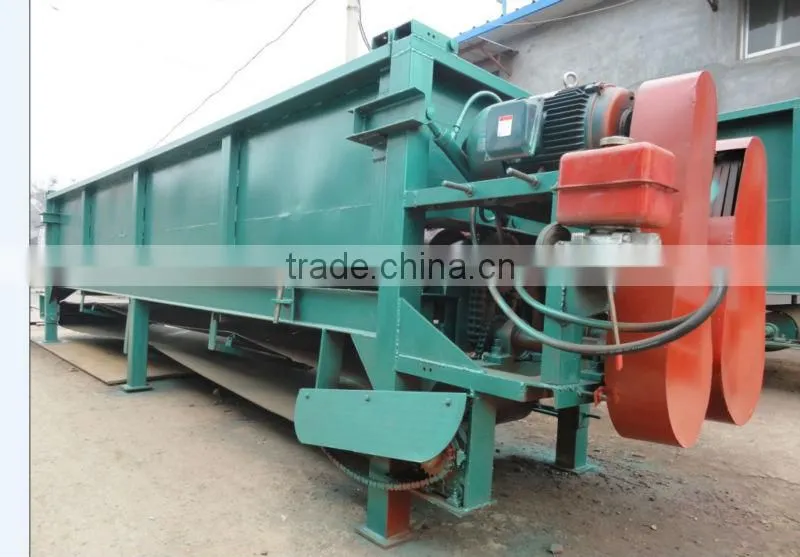

Wood debark or wood peeling machine/tree/wood bark peeling machine/log debarker machine 0086-15238010724
1>This machine is the rotor teeth with stripping produced a unique force, so that wood in the hopper tank plate section of a recurring cycle of movement, but also around its own axis to do wood turning motion segment and irregular beating. To this paragraph with wooden teeth, wood and wood paragraph paragraph paragraph wood and keep the friction between the storage tank, impact, compression, fast bark are separated, to achieve effective peeling effect.
2>One end to put in and the other for outlet , it’s better than the rotary one which have to stop the motor to take the peeled trees out
3>Can suit for many kinds of different trees , especially for the bend one have more high peeling rate than the traditional rotary type
4>The machine is fixed when working , so the power consumption and the failure rate is small and with low noise ,
Wood barker is a new generation wood peeling equipment with high efficiency which was innovated by our factory on the basis of foreign advanced technology. It had single and double roller type according to different wood with different diameter. This machine adopts open groove peeling room, the wood come into the peeling room from one side and come out from the other size. So it is continuous working. It conquer the defect of rolling drum and improve capacity greatly. It is suitable for big diameter wood and large scale factory.
Technical data:
Model |
HX-8000 |
HX-10000 |
Motor |
11kw, 3 phases, 380v.50 hz |
15kw,3 phases,380v,50hz |
Capacity |
6-8 t/h |
10-12 t/h |
Barking rate |
> 90% |
>95 % |
Log length |
3-4 m |
5-6 m |
Log loss rate |
< 2% |
< 2% |
Log diameter |
No limitation |
No limitation |
Diamension |
8*1.4*1.7 m |
12*1.5*1.7 m |
If you have great interest in our products, please feel free to contact me. Very happy to do more for you.
