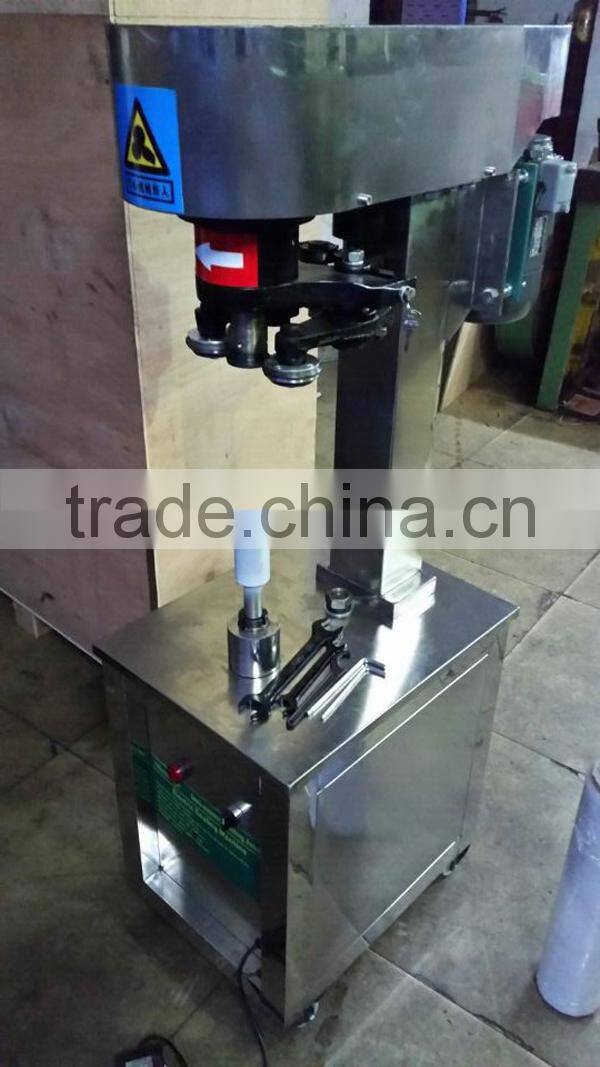

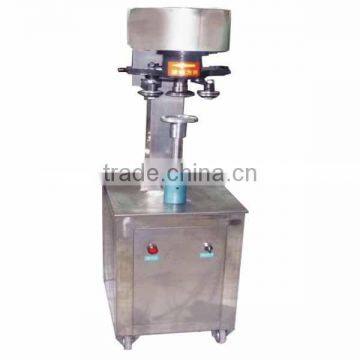

the New Technology Stainless Steel Semi Automatic Can Seamer Seaming Machine Sealing Machine

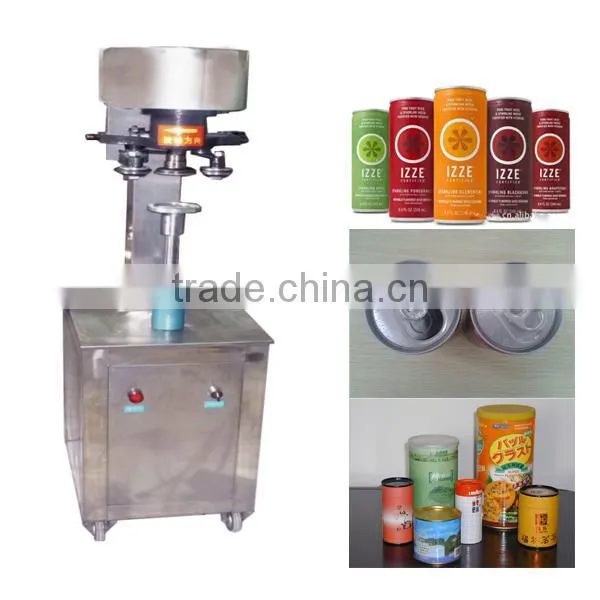

the New Technology Stainless Steel Semi Automatic Can Seamer Seaming Machine Sealing Machine photo-1
the New Technology Stainless Steel Semi Automatic Can Seamer Seaming Machine Sealing Machine photo-2
the New Technology Stainless Steel Semi Automatic Can Seamer Seaming Machine Sealing Machine photo-3
the New Technology Stainless Steel Semi Automatic Can Seamer Seaming Machine Sealing Machine photo-4
the New Technology Stainless Steel Semi Automatic Can Seamer Seaming Machine Sealing Machine photo-5
the New Technology Stainless Steel Semi Automatic Can Seamer Seaming Machine Sealing Machine photo-6
US$ 500 - 1,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bottles, Cans, Foil
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai DAF or other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bottles, Cans, Foil
Packaging Material Metal, Paper, Plastic
Automatic Grade Semi-Automatic
Driven Type Other, Electric, electric
Voltage 220v/110v
Power 550w
Place of Origin Henan, China
Brand Name Qixin
Model Number QX4A2
Dimension(L*W*H) 680*380*1280MM
Weight 130KG
Certification SGS
After-sales Service Provided Engineers available to service machinery overseas

 the new technology stainless steel semi automatic can seamer seaming machine sealing machine

Product Description

Product introduction about sealing machine  :

This machine can seal perfect tin seam ,simple construction and easy to operate .small bulk, less noise and suitable for different size tins .

It was used in pop-top can ,paper can, metal can especially ,in beverage ,food and can factory .



Product feature about sealing machine  :

1. Good for small production, easy operation, low costs

2. Sealing can by the right and left round seaming wheel, simple structure, convenient adjustment

3. The can lifting mechnical was control by cam, stable and reliable

4. It was used for aluminum can, tin can, plastic can etc closing machine

 the new technology stainless steel semi automatic can seamer seaming machine sealing machine

the new technology stainless steel semi automatic can seamer seaming machine sealing machine

Technical parameter about the sealing machine

1.dimension:780*490*1420mm
2.power: 110v,60hz,550w
3.capacity: 1520 pcs/h
weight: 110kg
5.height of can: 30-220mm(customized)
6.diameter of can 50-200mm
7.mould: one set

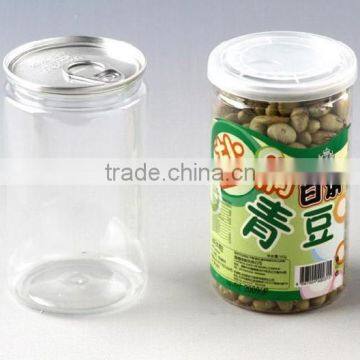

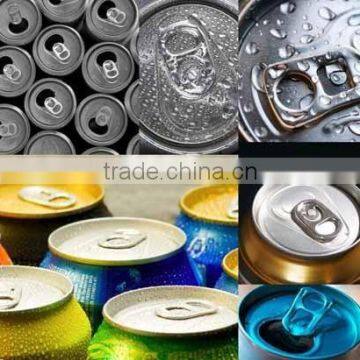

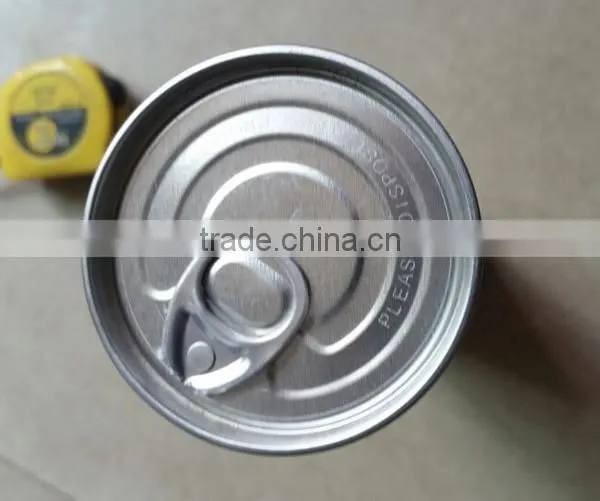

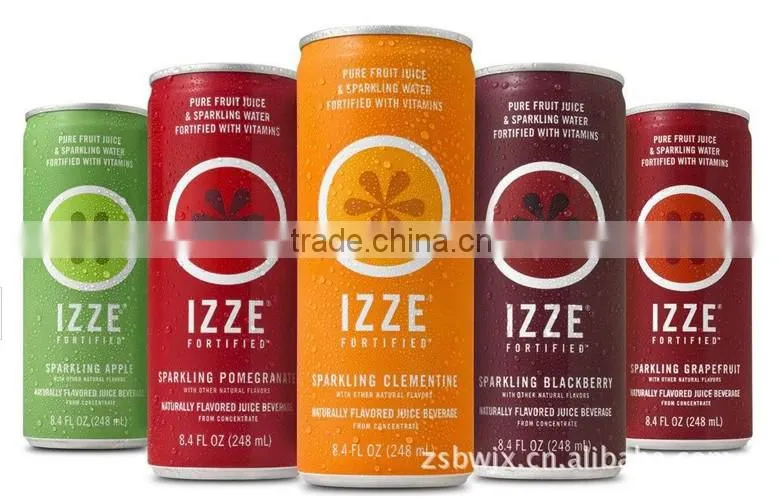

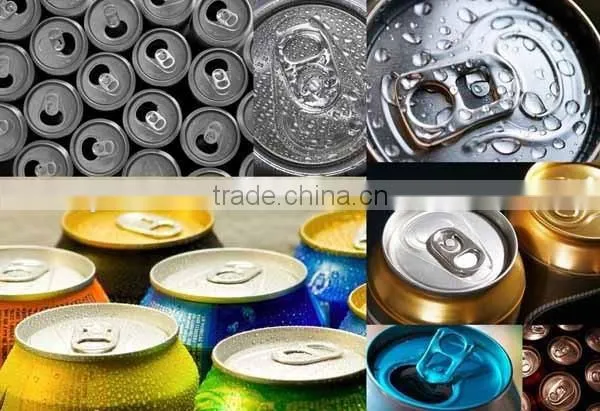

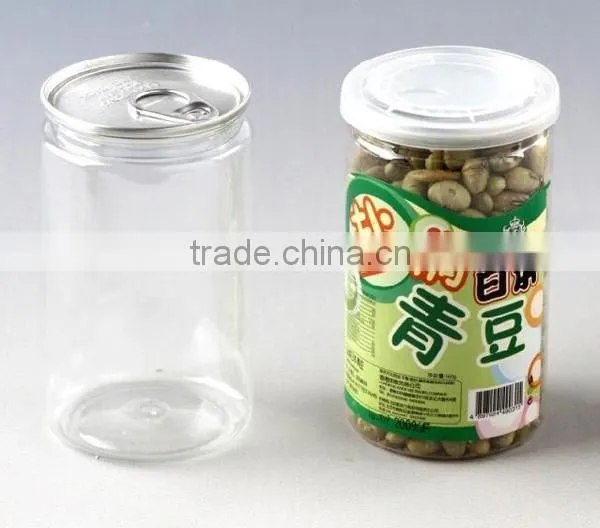

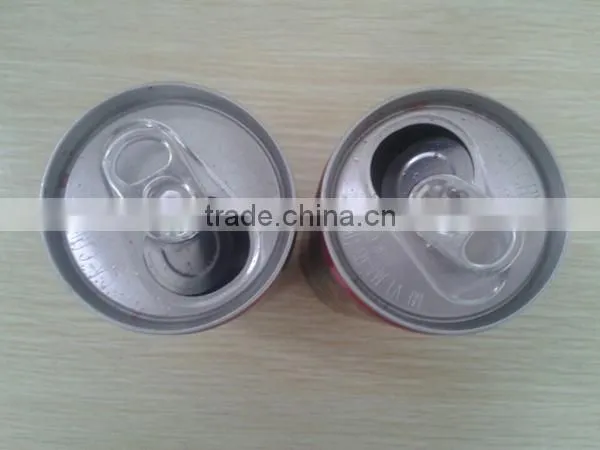

Samples about the sealing machine

the new technology stainless steel semi automatic can seamer seaming machine sealing machine

the new technology stainless steel semi automatic can seamer seaming machine sealing machinethe new technology stainless steel semi automatic can seamer seaming machine sealing machinethe new technology stainless steel semi automatic can seamer seaming machine sealing machinethe new technology stainless steel semi automatic can seamer seaming machine sealing machine



Operation Skills:
Before started:
1). Check every parts of the machine are all well smooth
2). Check for loose firmware, if anything damaged, like power wire.
3). Check rotation systerm any abnormal sound or everything is perfect for running.

Adjustment:
a). Turn on inching switch, screw lifting spiral to applicable cans height.
b). Adjust 2 trolley place to right position.

Operating:
c). Turn on switch, place caps on cans manually.
d). Place cans on the mould tray of the machine, and make it on right place.
e). Right caps and cans position and step on controlling switch for sealing.

Attention:
1). 3 or more people needed when replacing this whole machine
2). No pulling and extruding power wire.
3). No water when machine cleaning. (Wet rag is OK)
4). No hands touch or adjust pinch roller when operating.
