Specifications
Our company has been dealing in chain link fence for more than 30 years and has superior producing machineMaterial: Low carbon steel wire, stainless steel wire, aluminum alloy wire.
Weaving: Woven diamond pattern provides strong, durable and flexible construction. The closely spaced diamond mesh construction gives your fence linear strength and springy texture to protect horses from injury and prevent predators from entering paddocks and pastures.
Uses: Diamond mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing.
Benefits: Low carbon steel diamond mesh has a heavy galvanized coating to ensure a long life.
The Diamond Mesh wire construction is:
strong;
safe and flexible;
does not break;
does not sag or roll up at the bottom.
Sizes of Diamond Wire Mesh
Mesh |
Hot-dip Galvanized Wire |
PVC Coated Wire |
|||||||
| Wire Gauge BWG | Wire Diameter mm |
Weight Kg/square meter | Roll Diameter mm 4'X50' |
Wire Diameter | Weight kg/ square meter | Roll Diameter mm 4'X50' |
|||
| Before Coating/After Coating | |||||||||
|
1" (25mm) |
12 | 2.8 | 3.87 | 220 | 2.6/3.2 | 3.7 | 280 | ||
| 13 | 2.4 | 2.9 | 200 | 2.0/2.6 | 2.3 | 240 | |||
| 14 | 2.1 | 2.3 | 180 | 1.4/2.0 | 1.2 | 220 | |||
| 16 | 1.6 | 1.34 | 160 | 1.0/1.6 | 0.7 | 200 | |||
|
1.5" (40mm) |
10 | 3.4 | 3.7 | 280 | 3.4/4.0 | 3.9 | 290 | ||
| 11 | 3.0 | 3 | 250 | 2.6/3.2 | 2.4 | 280 | |||
| 12 | 2.8 | 2.4 | 230 | 2.0/2.6 | 1.4 | 240 | |||
| 14 | 2.1 | 1.4 | 220 | 1.4/2.0 | 0.8 | 220 | |||
|
2" (50mm) |
8 | 4.2 | 4.5 | 280 | 3.4/4.0 | 3.2 | 280 | ||
| 10 | 3.4 | 2.9 | 250 | 2.6/3.2 | 1.9 | 250 | |||
| 12 | 2.8 | 1.9 | 230 | 2.0/2.6 | 1.2 | 230 | |||
| 14 | 2.1 | 1.2 | 220 | 1.4/2.0 | 0.6 | 220 | |||
|
2.25" (56mm) |
8 | 4.2 | 3.9 | 290 | 3.4/4.0 | 2.8 | 280 | ||
| 10 | 3.4 | 2.6 | 280 | 2.6/3.2 | 1.7 | 250 | |||
| 12 | 2.8 | 1.7 | 250 | 2.0/2.6 | 1.0 | 230 | |||
| 14 | 2.1 | 1.0 | 220 | 1.4/2.0 | 0.55 | 220 | |||
Besides the above meshes,we can also produce 2.4",2.5",3" meshes.As the space of alibaba is limited,we cannot show all.Pls understand we can produce 2.4",2.5",3"meshes

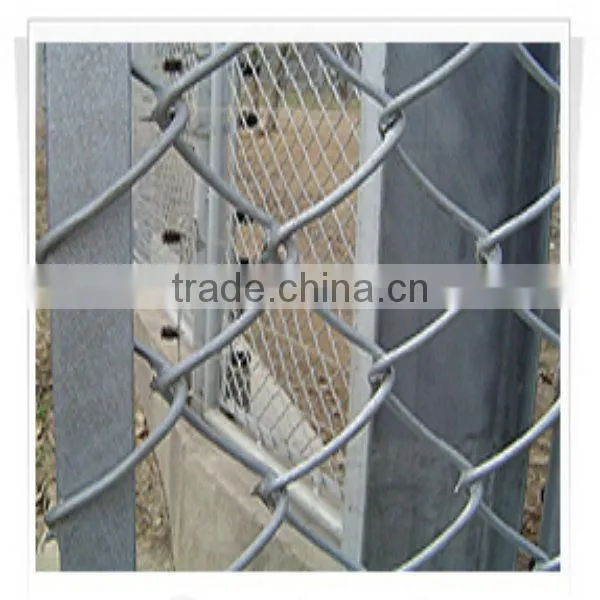

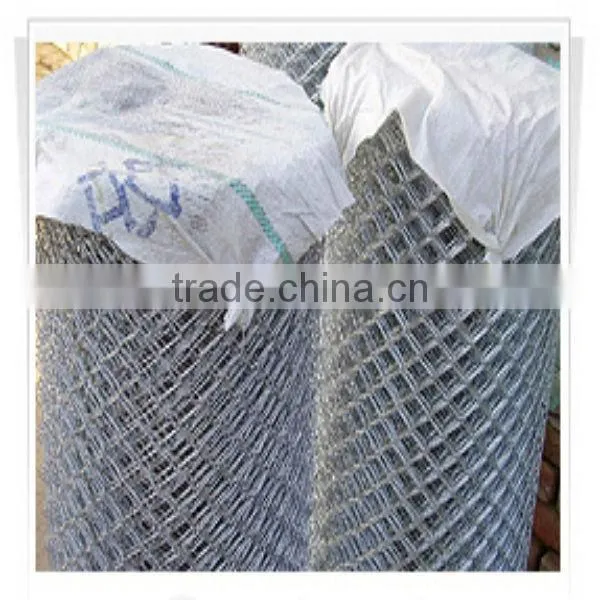

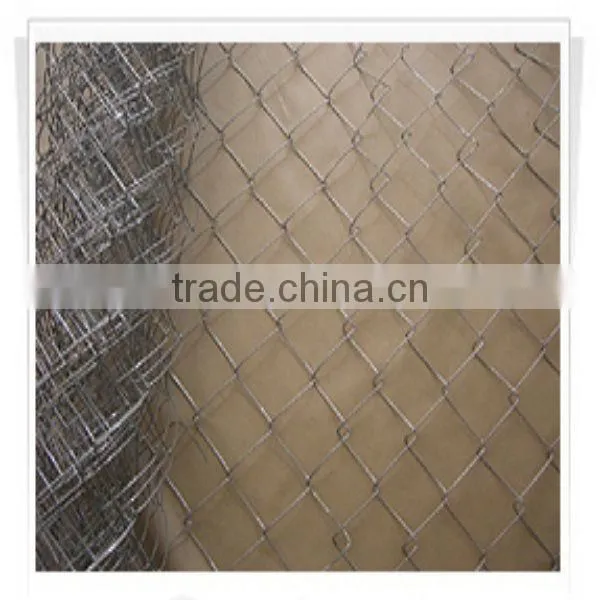

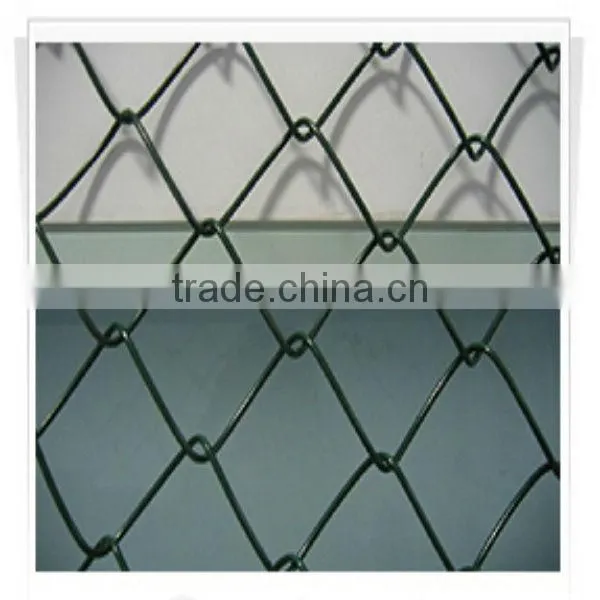

Pls see following photos
