Mattress Compressor Machine Mattresses Wrapping Machine

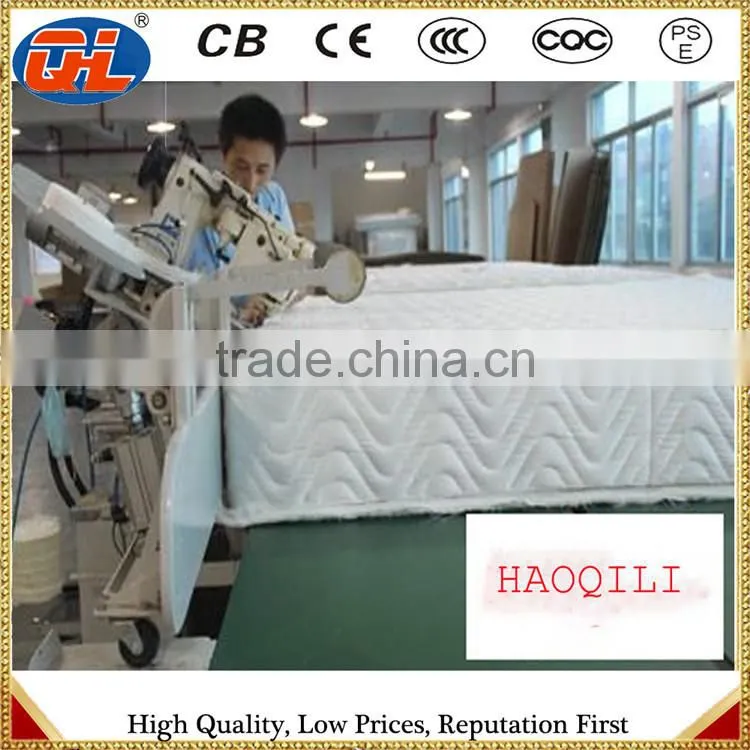

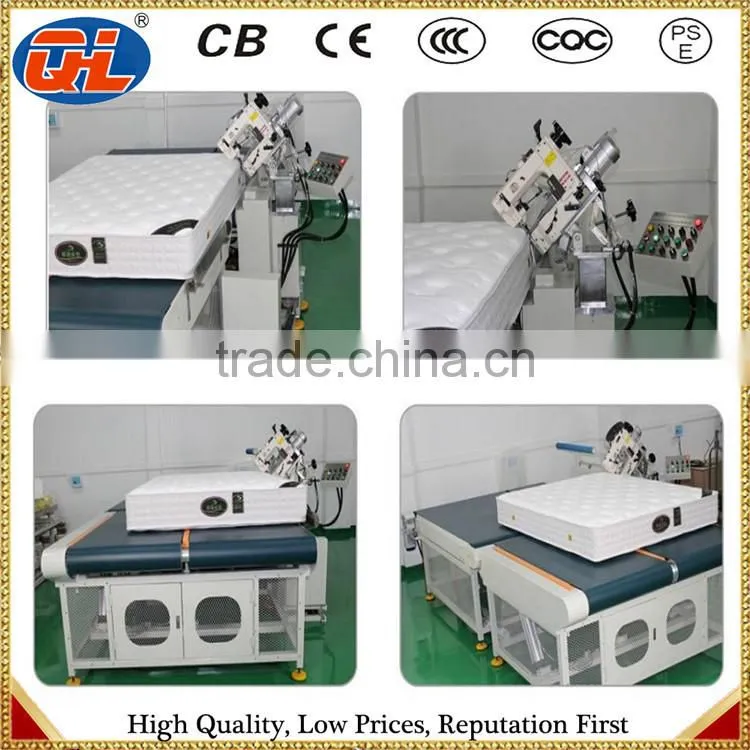

*Description of automatic mattress tape edge machine
HQL-4-RN-8B Mattress Tape Edge Machine is mainly used for taping edge of mattress
panel and soft cushion. It adopts advanced Servo motor drive system, high efficiency,
easy operate and stable performance. It is the perfect equipment for manufacturing mattress enterprises.
*Technical characteristics:
1, Featuring the heavy-duty 300U Chain stitch sewing head and variable speed control, the
TapeMaster is capable of taping all sizes of mattresses from crib to king.
2, Specifically designed for today’s heavy premium and pillowtop mattresses, the high-speed
head sews up to 3000 RPM.
3, The operator remains in a stationary sewing position while wide controlled conveyor
belts move the mattress. The patented compression and turning devices built into the
machine bring the mattress to the sewing head.
4, The process is further automated by the unique design that turns and flips the mattress
in preparation for taping the other side.
*The Technical Parameters:
Model |
HQL-4-RN-8B |
Motor Power |
220V, 550W |
Machine head rotation |
1100-3000r/m |
Needle use |
DP×17 |
|
Machine head working angle |
30°-58° |
Mattress thickness sewing range |
50-500mm |
Table-board lifting range |
380mm(adjustable) |
Max sewing speed |
2000 needle/min |
Table-board Size |
1300*1930mm |
Max sewing mesh |
8.0mm |
Machine weight |
350kg |
Packing size |
2200*1480*800mm |
*Features of automatic mattress tape edge machine

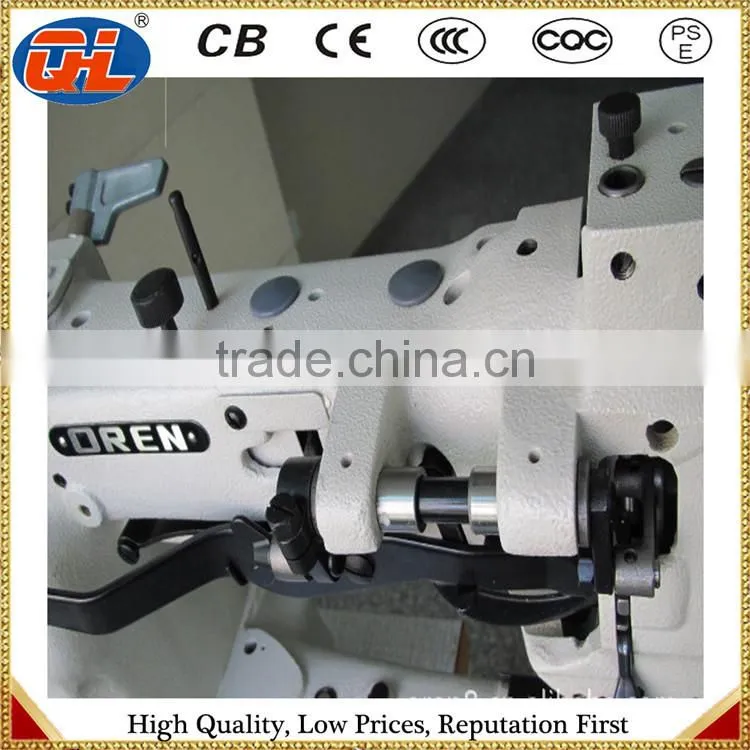

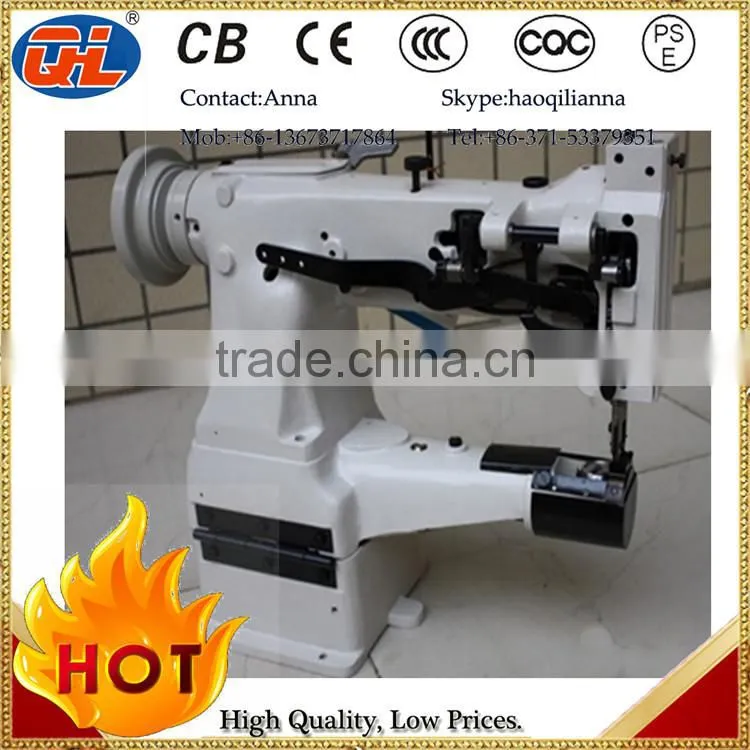

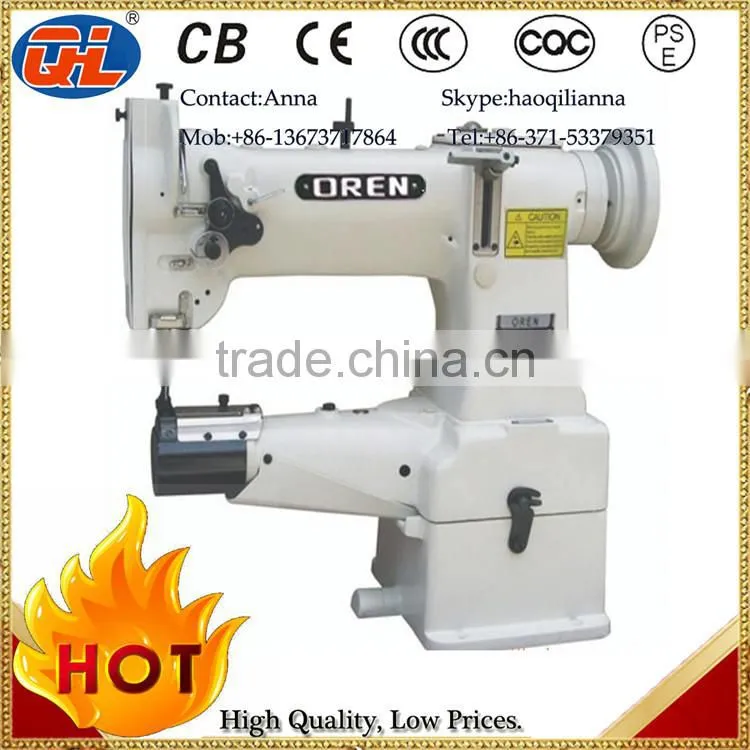

1.It adopts advanced 300U chain stitch high-speed sewing head
2.Electric lift working table, manual adjustable sewing head
3.Sewing, sliding guide move adopt variable frequency stepless speed regulation,
speed auto slowdown at corner
4.The stitches are straight, even and beautiful
5.Rustless steel table
6.Stands set the level adjustment device
7Built-rotating electrical power supply, no special requirement for installing space
Stable performance, low vibration and noise
*Applications of automatic mattress tape edge machine

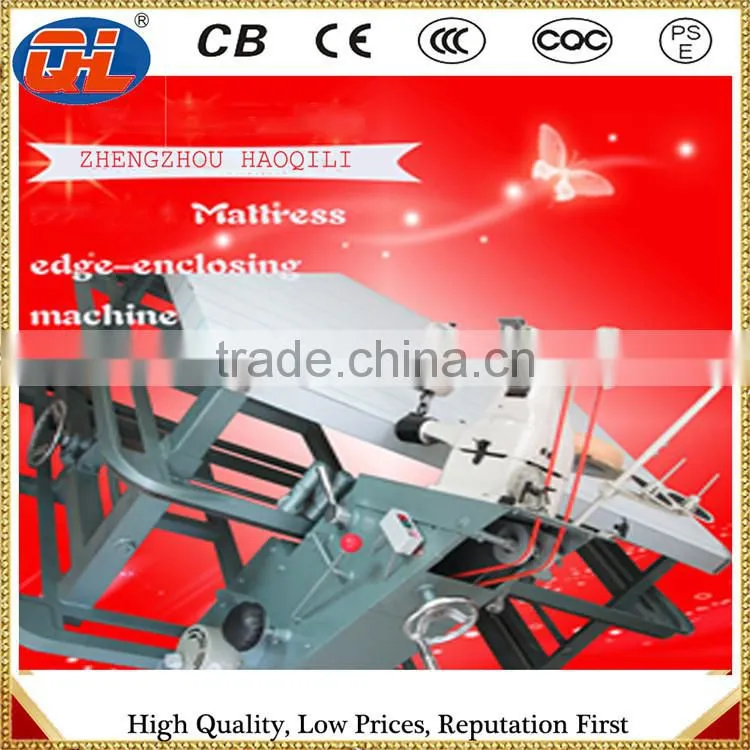

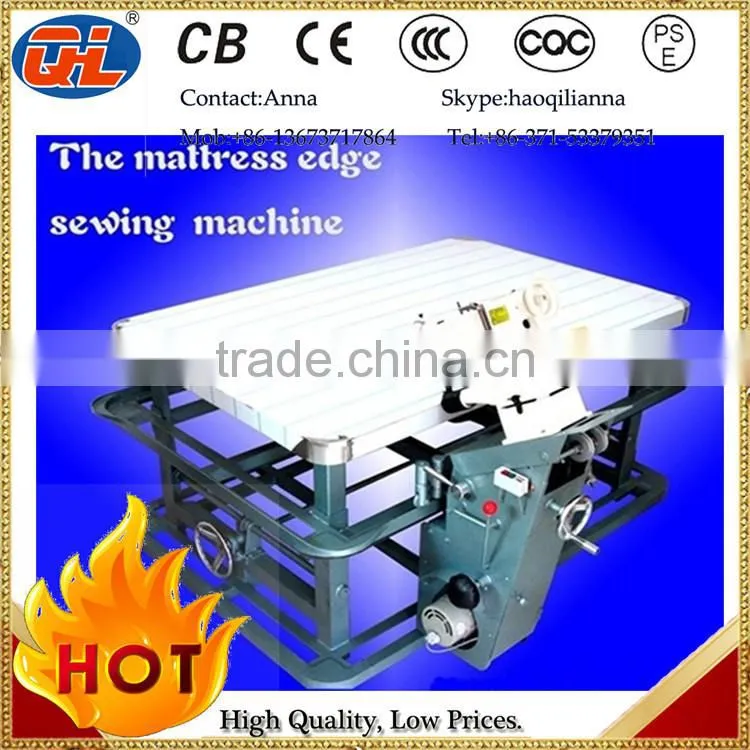

Mode OR-E-WB3 tape edge machine is mainly used for sewing mattress.A precision
guide track is equipped on its support frame.Which makes the walking carriage move
accurately and the machine run smoothly.At the same time,its walking carriage running,
sewing head tilting and working table height are controlled by electricity.This feature
makes operation more convenient.With buffer and speed-down at corner. Apply of
much new technology a perfect equipment for manufacturing high- class mattress.

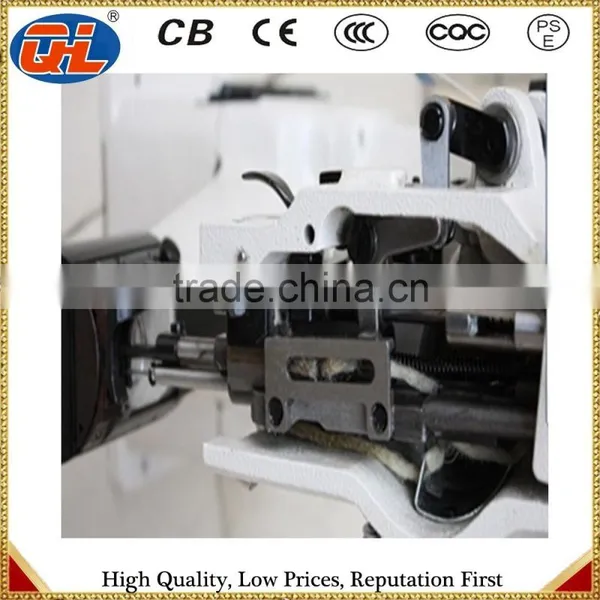

*Detail show
*Aftersales Service:
*Company Advantages
1.We are experience in exporting and international trade.
2.We are knowledge in market demands and product satisfaction.
3.We are professional in production team and control system.
4.We are sincere and honest to customers
If you like our machine,contact me.
