wire wrapper features:
1.good quality
2.high efficiency
3.hot selling
4.low labor
Usage:
This machine is the vertical double layer paper package machine, this machine will package the naked wire by Mica tape, tissue paper tape, transparent tape, fire-resistant tape, aluminum foil,etc.
Working principle:

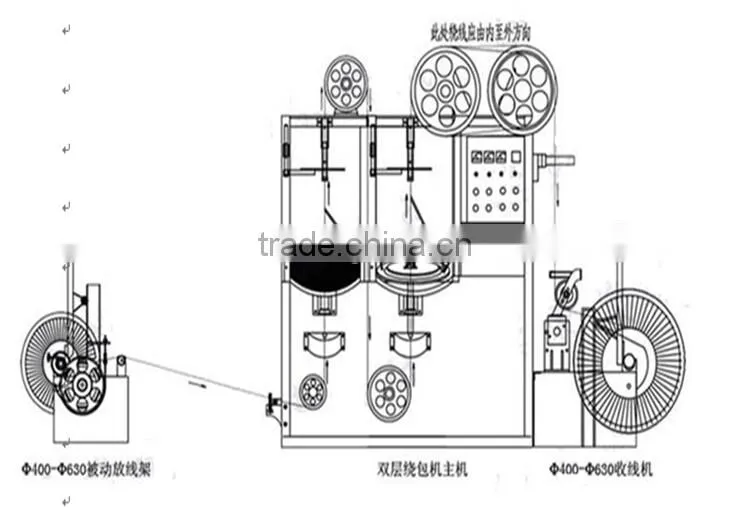

This machine for single head around to package , by the AC motor through belt drive gear , then through a couple of cone gear rotation to make wrapped tray to turn round. The core wire was lead to take the wheel drive.
Technical parameter:
high speed wire wrapping machine | |
Model |
HD-630 |
Suitable tape for the machine |
Mica tape,cotton paper tape, aluminum foil,paper tape Transparent tape ,drawing tape,etc |
Suitable wire diameter |
Soft structure of diameter 0.8-15mm Hard structure of diameter less than 10 square millimeter |
Suitable tape size |
Tape width:6mm-18mm Package material dick hole diameter:52mm |
Adjustment |
stepless adjustment |
Tape rotary speed |
Without loading max: 2500r/min With loading max:2200r/min |
Suitable pay-off disk size |
Disk diameter:400-630mm Disk width:300-475mm Disk hole diameter:50-80mm |
Machine occupy area |
4000*1200*2000mm |

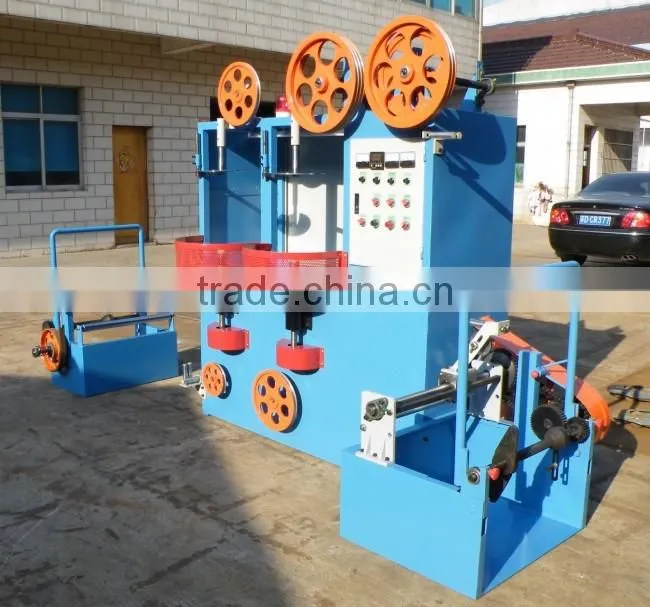

Double head high speed wire wrapping machine | |
Model |
HD-630 |
Suitable tape for the machine |
Mica tape,cotton paper tape, aluminum foil,paper tape Transparent tape ,drawing tape,etc |
Suitable wire diameter |
Soft structure of diameter 0.8-12mm Hard structure of diameter less than 10 square millimeter |
Suitable tape size |
Tape width:6mm-18mm Package material dick hole diameter:52mm |
Adjustment |
stepless adjustment |
Tape rotary speed |
Without loading max: 2500r/min With loading max:2200r/min |
Suitable pay-off disk size |
Disk diameter:400-630mm Disk width:300-475mm Disk hole diameter:50-80mm |
Machine occupy area |
4000*1200*2000mm |

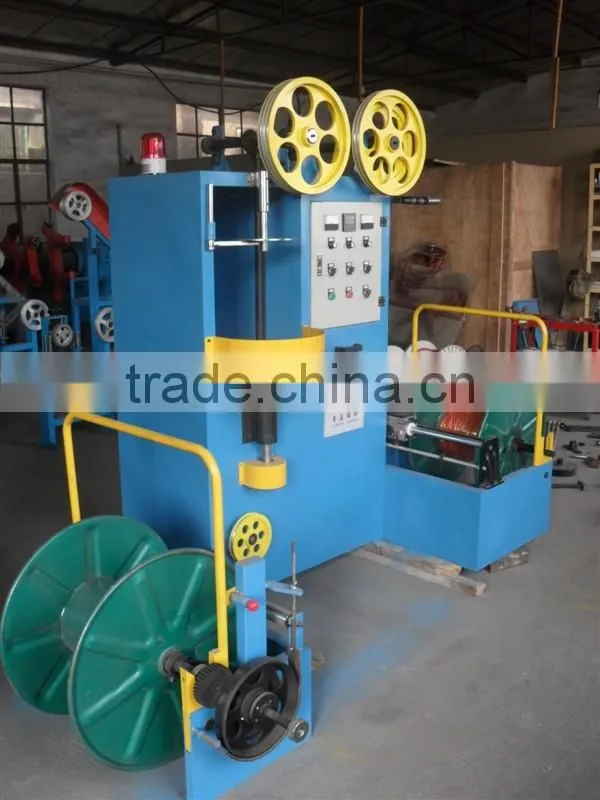

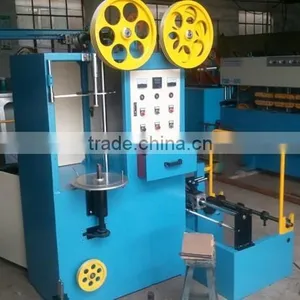

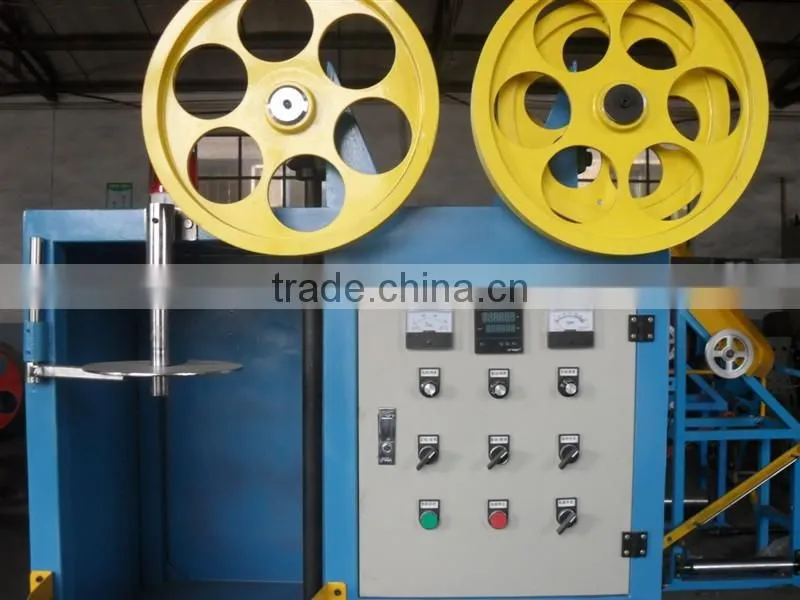

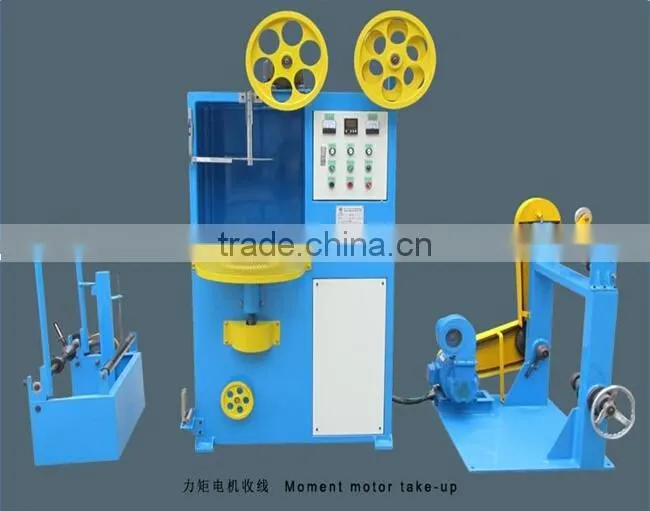

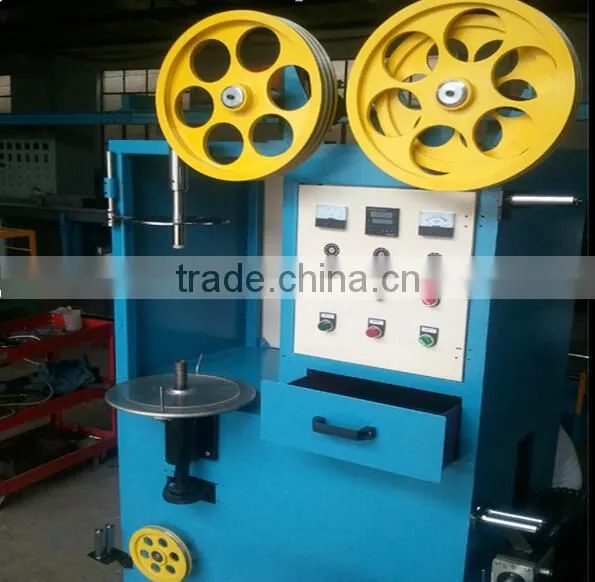

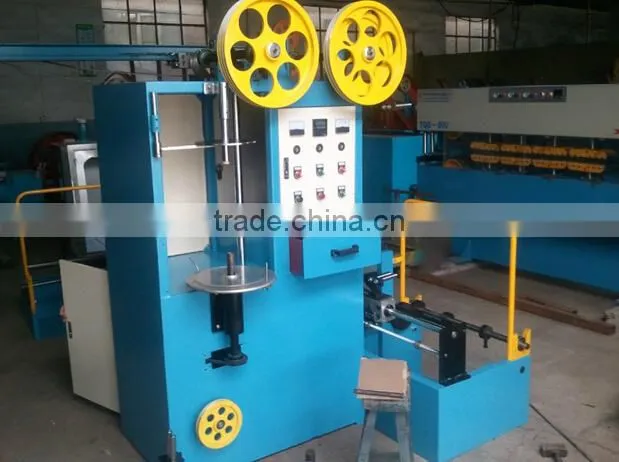

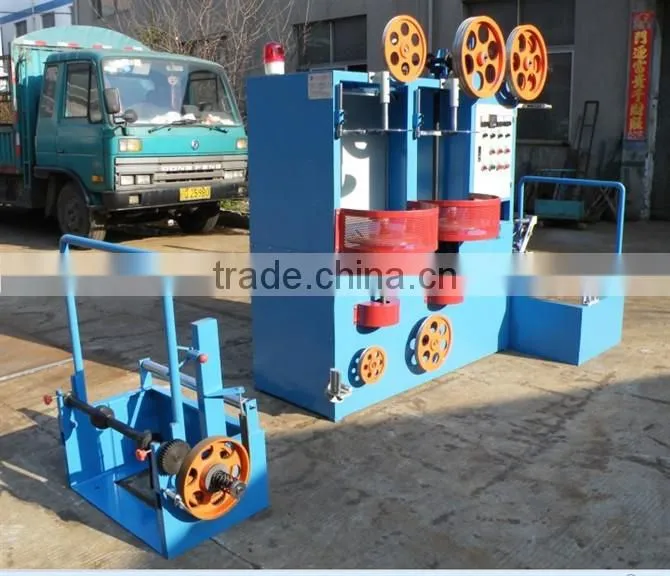

pictures of the wire wrapper :
if you are interested in this machine,please contact Miss Lemon Zhao
mobile phone :0086 13140123617
