Professional high performance foam concrete brick making machine
foam concrete brick making machine
Scope:
1 .in order to cement, sand, fly ash, powder as raw materials such as foam concrete production.
2, in high-rise building roof insulation works to warm the project, large trenches filled works.
3, blocks the production of foam concrete wall.
10m³/h Foam concrete machine group
Brief:
Model LK-10 foam concrete machine is a kind of small group machine according our many years of working experience. The machine capacity is 8-10 cubic meter per hour which is special design for village and county market. which can put directly on the truck for working.
Features:
1. Split design and easy to move
2. Low electrical consumption, which special suitable for village usage, and also can working with the 15kw electrical generator
3. Each machine single controller , easy to operate
4. The machine use high pressure screw pump, can convey max height of 30meters
5. The machine compare similar machine save about 50-100kg concrete per cubic meter
6. The machine good design ,low weight machine can delivery by manual forklift.
Technical parameter:
Model |
LK-10 |
Capacity |
8-10cubic meter per hour |
Voltage |
380v |
Power |
12kw |
Vertical max convey height |
30m |
Level max convey distance |
150m |
Max pressure |
1.6Mpa |
Outlet pressure |
1.2Mpa |
Machine dimension |
1300*900*900mm |
Net weight |
760kgs |
15m³/h Foam concrete machine group
Brief:
Model LK-15 Foam concrete machine is a special designed machine according our many years working experience. The machine capacity is 15-18cubic meter per hour. Easy to move the machines
Features:
1. The machine according the frequency control to control speed,which easy to control the machine to get the suitable density foam concrete.
2. The machine easy to operate can control at ease.
3. Foam agent controlled by the measure pump, can accuracy control the quantity of foam agent.
4. The machine use high pressure convey pump system, high capacity and can reach higher height.
5. The machine compare the similar machine save 50-100kg concrete per cubic meter.
6. The machine good design ,low weight machine can delivery by manual forklift.
Technical parameter:
Model |
LK-15 |
Capacity |
15-18cubic meter per hour |
Voltage |
380v |
Power |
13kw |
Vertical max convey height |
60m |
Level max convey distance |
200m |
Particle size |
Less than 5mm |
Max pressure |
1.6Mpa |
Outlet pressure |
8Mpa |
Machine dimension |
1600*900*900mm |
Net weight |
960kgs |
25-30m³/h Foam concrete machine group
Brief:
Model LK-30 Foam concrete machine is a kind of automatic foam concrete machine group. With hydraulic system, automatic foam generator system, pump conveys system and electrical controller system. Easy to control the machine and adjust the machine to get the suitable density foam concrete.
Features:
1. The machine use the double cylinder full hydraulic driving pump to convey cements to let the machine get high pressure at the outlet which is suitable for high buildings.
2 Each part of the machine and each materials feeding controlled automatically, the density of the final foam agent can be easily controlled.
3. The foam generator with the wheels can easy to move.
4. Special design of the pump head easy to take off to clean.
Technical parameter:
Model |
LK-30 |
Capacity |
25-30cubic meter per hour |
Voltage |
380v |
Power |
26.5kw |
Convey way |
Hydraulic position |
Max hydraulic pressure |
16Mpa |
Vertical max convey height |
150m |
Level max convey distance |
500m |
Particle size |
Less than 5mm |
Foam agent pump power |
5.5kw |
Max pressure |
1.6Mpa |
Mixing power |
3kw |
Mixing volume |
0.8cubic meter |
Max convey quantity |
9200kg |
Air compressor pressure |
4Mpa |
Machine dimension |
2400*1400*1500mm |
Net weight |
1600kgs |
Single machine:
|
|
Small foam generator |
|
This is kind of small foam generator Capacity: 30 cubic meter per hour for generating foam Voltage:380v Power:3kw- 3phase/4.5kw-2phase Pressure:0.8Mpa Net weight:70kgs Dimesion:1100*600*760mm
| |
|
|
Middle foam generator This is kind of middle foam generator Capacity: 50-60 cubic meter per hour for generating foam Voltage:380v Power:4kw Pressure:1.6Mpa Net weight:170kgs Dimesion:1200*700*760mm
|
|
|

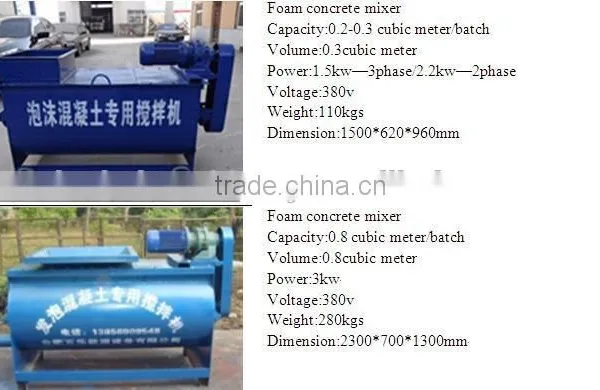

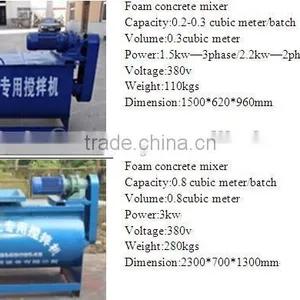

Foam concrete mixer Capacity:0.2-0.3 cubic meter/batch Volume:0.3cubic meter Power:1.5kw—3phase/2.2kw—2phase Voltage:380v Weight:110kgs Dimension:1500*620*960mm
|
|
|
Foam concrete mixer Capacity:0.8 cubic meter/batch Volume:0.8cubic meter Power:3kw Voltage:380v Weight:280kgs Dimension:2300*700*1300mm
|
|
|
|
|
|
Foam concrete block mold Size:1200*1200*600mm |
Packaging: Export wooden box package
Delivery time: 10 working days
