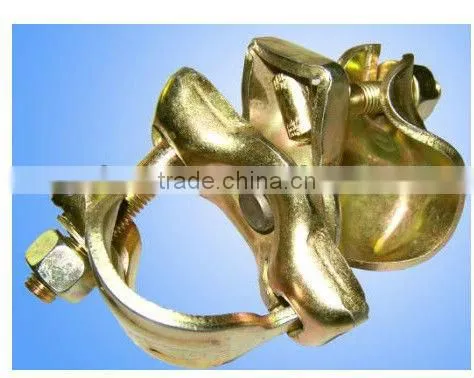

Pressed Universal Coupler

Name: Pressed Universal Coupler
Brand: GOLE
SKU: 137511491

US$ 0.5 - 1.5 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Henan, China

Brand Name:

GOLE

Type:

Scaffolding Parts

Henan Province Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANGHAI/TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name GOLE

Type Scaffolding Parts

Scaffolding Part Type Scaffolding Couplers

Specifications

pressed universal coupler
hydraulic-forming steel scaffolding swivel clamp
Material: carbon steel
high quality and assuranc

pressed universal coupler

Material: carbon steel Q235

Specification: 48.3*48.3mm

Thickness: 5MM

Manufacturing Technology: Hydraulic Forming

Function: Connecting steel scaffolding pipe or other similar pipe

Surface Treatment: Zinc plated, power coated, chrome plated, hot-dip galvanized or other

Quality: Up to or above the standards of Chinese GB15831/ EN74-1/BS1139.2-1/ AS15762 and ISO4054

Quality Assurance: Products liability insurance underwritten by Liberty Insurance CO,. LTD;

Technical Indicators:

Standard	Slipping force	Failure force	Deformation	Pull apart force
national standard GB15831	P₁=7.0KN D₁≤7.00mm P₂=10.0KN D₂≤0.5mm	No crack at P=25.0kN	f≤70.00mm at moment=900N.m	D₁≤2.00mm at P=4 kN
Ji brand standard QB2010.1	P₁=10.0KN D₁≤7.00mm P₂=12.0KN D₂≤0.5mm	No crack at P=30.0kN	f≤60.00mm at moment=900N.m	D₁≤2.00mm at P=5kN
Quality	Up to or above the standards of Chinese GB15831/ EN74-1/BS1139.2-1/ AS15762 and ISO4054
Quality Assurance	Warranty: Replacement for free in case of broken under normal usage within one year; Full compensation for product quality accident.
