Laborotary Scale Vacuum Lyophilizer Laboratory Mini Freeze Dryer for Sale

Name: Laborotary Scale Vacuum Lyophilizer Laboratory Mini Freeze Dryer for Sale
Brand: HERALD
SKU: 137500943
Availability: InStock

US$ 200 - 800 MOQ: 1 Unit

Key Specifications

Brand Name:

HERALD

Model Number:

Deep Freezer, Freeze Dryer(Table Type)

Place of Origin:

Shandong, China

Qingdao Herald Cryogenic Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name HERALD

Model Number Deep Freezer, Freeze Dryer(Table Type)

Place of Origin Shandong, China

Product Description

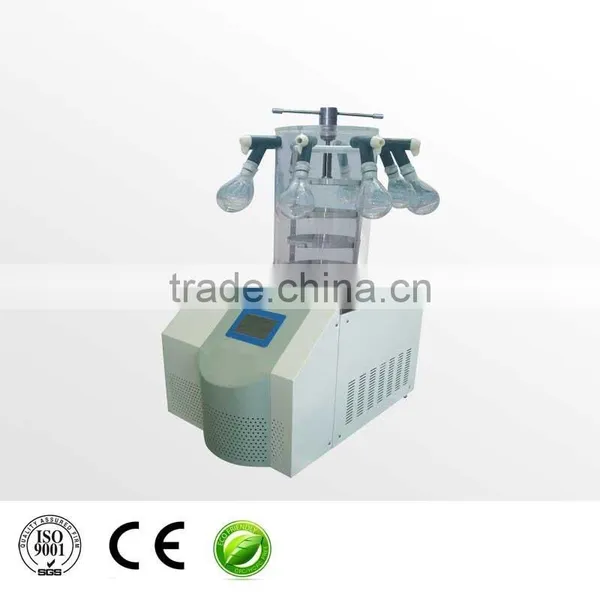

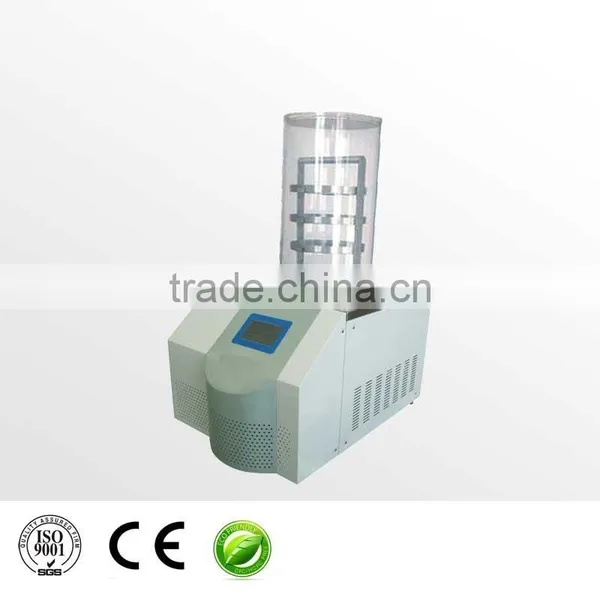

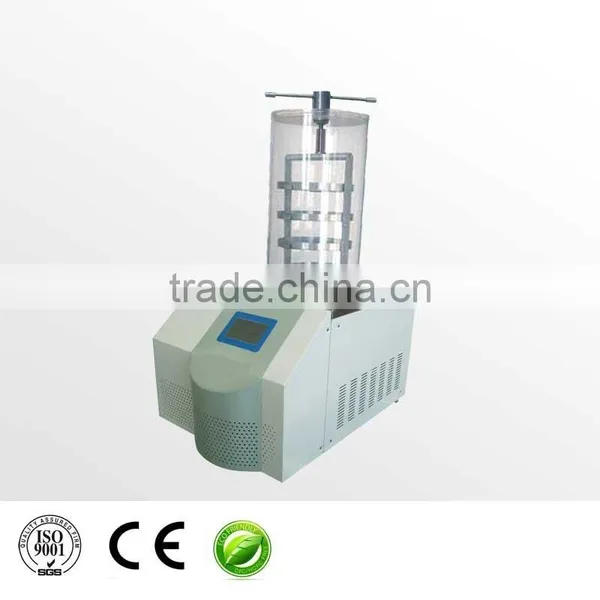

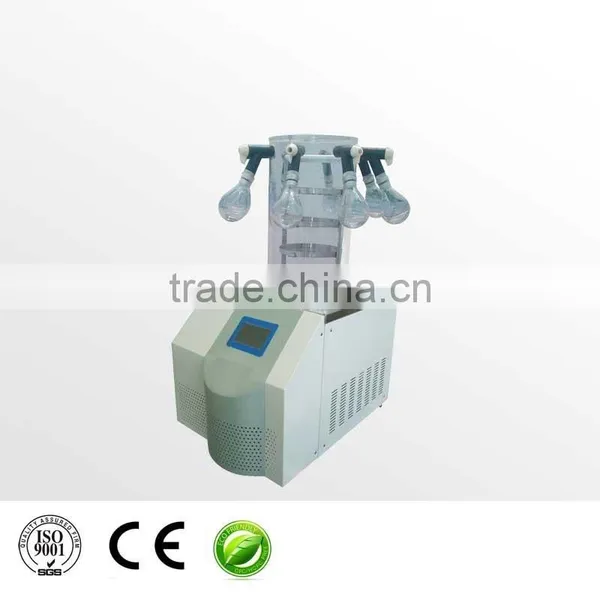

Laborotary scale vacuum lyophilizer laboratory mini freeze dryer for sale

Characteristics of the product function:

1.Purpose

The machine is suitable for freeze drying test of laboratory samples and a samll amount production.

2. Series

The product has 4 series : Standard (S), Top-press (T), Multi-pipeline (P) and top-press (PT).

3. Specification

The LCD display panel ,which is for English language,can display drying curve,cold trap temperature,running time,vacuum degree,etc.
Large opening trap,no coil inside,with samples pre-freeze function.
Cascade refrigeration technology,imported compressor which is low noise,large cooling capacity and hign capacity of water capture.
The pre-freeze shelf can be used as guide barrel to speed up the drying rate.
Cold trap and operation panel are made by stainless,corrosion-resistant and easy to clean.
Transparent bell-cap drying cabinet is visual and safe.
The sample shelves are stainless steel,which can be adjustable as per the requirement.
Valve with Nitrogen is optional.

Technical Parameters

Model	DFD-10S	DFD-10T	DFD-10P	DFD-10PT
Type	Standard chamber		Standard chamber with 8 port manifold
Final condenser temp (℃)	-55
Vacuum Degree (Pa)	<10
Freeze drying area (m²)	0.12	0.09	0.12	0.09
Ice condenser capacity (Kg/24h)	3	3	3	3
Qty of shelf	4	3	4	3
Material loading capacity/shelf (ml)	300	300	300	300
Material loading capacity (ml)	1200	900	1200	900
Freeze drying time (h)	24	24	24	24
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y	Y	Y	Y
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz, 120V/60Hz
Exterior dimension (WxDxH mm)	582625530/960
Note	Shelf heating function is optional; Accessories for different chamber and manifold are optional; The vacuum pump for evacuation is independent and packed in a separate package.
