Cold Chain Equipments Monitoring System 7-days Temprature Recorder Chat Temperature Recorder
Applicable to blood bank refrigerators, medical, low temperature, and ultra low temperature units.
Characteristics of the product function:
- The product mainly applies to blood bank refrigerators, ultra low temperature freezers and
other medical equipment that requires temperature recording over time.

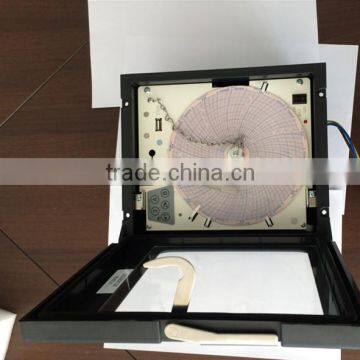

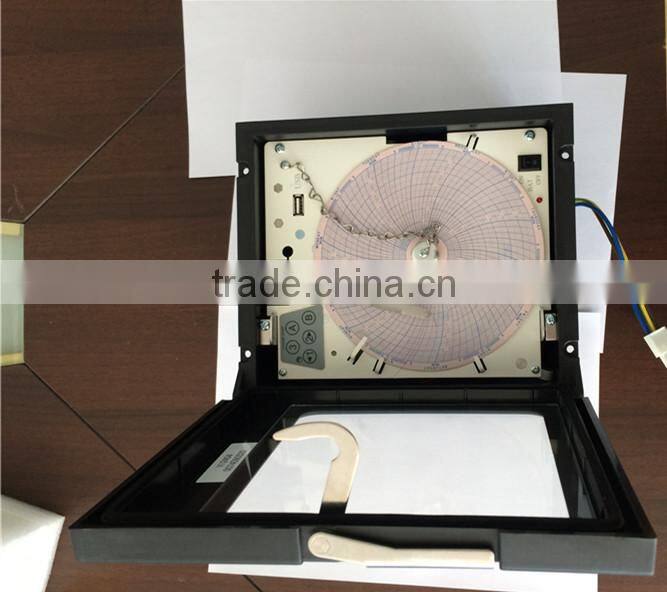

- The record chart paper is circular. Reading of temperature is simple and reliable. The
operation of the unit is rather straightforward.
- The unit is designed to operate with a precise microchip to ensure an accurate and reliable
recording of time.
- The recorder is also designed with a special circuitry to protect the operation of the motor
from external electronic disturbance.
Ambient conditions
Please perform operation under the following conditions in order to ensure accuracy.
- Indoor use;
- Elevation above sea level ≤ 2,000m;
- Ambient temperature within -10°C ~50°C;
- Ambient humidity within 0% ~ 90% RH;
- The fluctuation of voltage of the main power supply without exceeding the rated voltage.
Technical parameters
Main parameters
a) Range of test temperature:
-40°C~+30°C, resolution: 1°C;
-115°C~+50°C, resolution: 5°C;
-200°C~0°C, resolution: 5°C;
b) Temperature and humidity of working environment: -10°C ~50°C and 0 ~90% RH;
c) Recording time cycle: 7 days or 24 hours;
d) Working power supply: AC 100V ~240V and 50 Hz or 60 Hz;
e) Rated power: ≤8W;
f) Installation method: Mosaic installation on the wall;
g) Back-up battery: Lithium Battery(When the battery is fully charged, it can run the recorder for at least 24 hours.)
Feature Product for Your Reference
Packaging Detail : By export wooden carton outside and pallet at bottom for Deep Freezer.
Delivery Detail :15-45 workdays
Why choose HERALD?
We have engaged in Low temperature refrigeration field more than 14 years ,we own low temperature refrigeration core technology.
Herald has passed ISO9001 quality system certification and the international alliance certification.
Supporting manufacturers integrated in technical and production personnel,also can Resolve customer personalized demand.
Production line is equipped with the world's leading production equipment to ensure product quality and delivery date.
