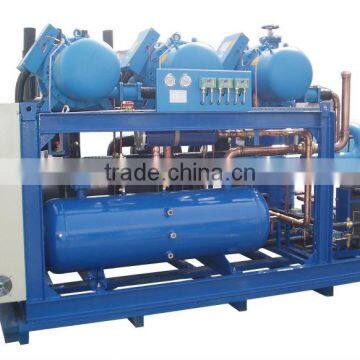

Parallel compressed condensing units for chiller
- 500 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
- Sterile vacuum vegetable cooling machine
- Green Precooling Vegetable Sterile cooling machine
- Vegetables Fruits Fresh vacuum precooling machine
- Precision air conditioner for computer room & data center
- Rooftop packaged air conditioner unit for commercial and industry use
- Hitachi heat pump scroll compressor DD98NHDG-D1K2 DC frequency conversion R410A
Product Details
Type: | Compressor | Place of Origin: | Jiangsu, China | Brand Name: | Frigeast |
Model Number: | NJBZFG/FNJBZFZ | Certification: | CE |
Product Description
Specifications
It is applies widely for freshness preservation and cold storage in supermarket and commercial cold rooms,food processing.Temperature code | Evaporator temperature
| Sunction temperature | Evaporator cooling | Water cooling | Air cooling | ||||||
R22 R134A | Dry ball temp. | Wet ball temp. | Condensing temp. | Inlet temp | Out let temp | Condensing temp. | Dry ball temp | Ambient temp. | Condensing temp. | ||
G | 7 | 8 | 35 | 24 | 35 | 30 | 35 | 40 | 35 | 32 | 50 |
Z | -7 | 5/18 | 35 | 24 | 35 | 30 | 35 | 40 | 35 | 32 | 50 |
D | -23 | 5 | 35 | 24 | 35 | 30 | 35 | 40 | 35 | 32 | 5 |
model | NJBZF-30G/Z(R090) | NJBZF-40G/Z(R120) | ||||||||||||||
Tc/ | 30 | 35 | 40 | 45 | 30 | 35 | 40 | 45 | ||||||||
Te/ | Q | P | Q | P | Q | P | Q | P | Q | P | Q | P | Q | P | Q | P |
-20 | 42.2 | 15.9 | 39.9 | 17.3 | 37.7 | 18.6 | 35.2 | 19.9 | 57.0 | 21.4 | 53.9 | 23.2 | 50.8 | 24.9 | 47.5 | 26.8 |
-15 | 52.1 | 16.8 | 49.4 | 18.2 | 46.7 | 19.7 | 43.8 | 21.2 | 70.3 | 22.6 | 66.7 | 24.5 | 63.0 | 26.4 | 59.1 | 28.4 |
-10 | 63.6 | 17.6 | 60.5 | 18.9 | 57.3 | 20.7 | 53.9 | 22.4 | 85.9 | 23.6 | 81.6 | 25.7 | 77.3 | 27.8 | 72.7 | 30.0 |
-5 | 76.9 | 18.3 | 73.3 | 19.1 | 69.6 | 21.6 | 65.6 | 23.4 | 103.8 | 24.5 | 98.9 | 267 | 93.9 | 29.0 | 88.6 | 31.5 |
0 | 92.2 | 18.8 | 88.0 | 20.6 | 83.7 | 22.4 | 79.1 | 24.4 | 124.4 | 25.2 | 118.8 | 27.6 | 113.0 | 30.1 | 106.8 | 32.7 |
2 | 98.9 | 18.9 | 94.5 | 20.8 | 89.9 | 22.6 | 85.1 | 24.7 | 133.5 | 25.4 | 127.5 | 27.9 | 121.4 | 30.4 | 114.9 | 33.1 |
5 | 109.6 | 19.1 | 104.8 | 21.0 | 99.9 | 23.0 | 94.6 | 25.1 | 147.9 | 25.6 | 141.4 | 28.2 | 134.8 | 30.9 | 127.7 | 33.7 |
7 | 117.1 | 19.2 | 11.2 | 21.1 | 106.9 | 23.2 | 101.4 | 25.4 | 158.1 | 25.7 | 151.3 | 28.4 | 144.3 | 31.1 | 136.9 | 34.1 |
10 | 129.2 | 19.2 | 123.7 | 21.2 | 118.2 | 23.4 | 112.2 | 25.7 | 174.3 | 25.8 | 167.0 | 28.5 | 159.5 | 31.4 | 151.4 | 34.5 |
NJBZFG/FNJBZFZ series compression condensing unit data(high ,middle temp.)R22
