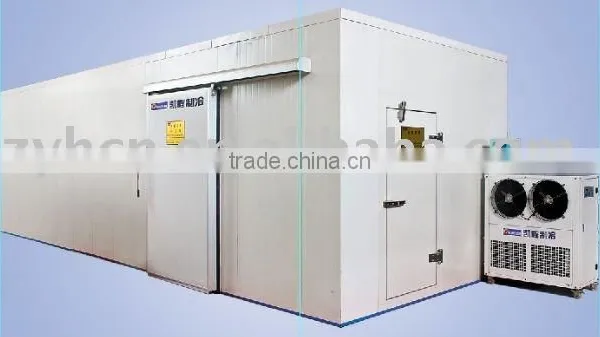

Cold room to store meat and fish and other fruits.1).Material.
Polyurethane Sandwich Panels,the external and inner panels cover is of zinc-coated steel sheet with a plastic finish.the heat insulation is of rigid foam polyurethane.
2).Specifications.
Panel Available Thickness: 50mm, 75mm, 100mm, 120mm, 150mm, 175mm & 200mm
Panel Available Width: 500-1200mm.
Both Surface of Panels: to be plating 0.326mm,0.4mm, 0.5mm or 0.6mm Thickness Pre-painted hot galvanized Steel Sheet coated with 200 micron PVC.
3).Installations.
Panels Connect Method: Dry-Joint System with Cam Lock,between two panels are male and female.the floor panels are reinforced and they withstand distributed load up to 2000Kg/SQ meters.also the cold room should be installed in a sheltered place away from direct sunshine,dust and rain.
4).Others.
Regular Steel Sheet Color Code: RAL 9002(Grey White)
PU Material Origin: Germany, Japan or Korea
Density: 40 +/- 2 kg/M3
Heat Transfer Quotiety: <0.022 W/M2*K
Pressure: 0.10Mpa
Cubic Area Change : <1% (-30 C-100 C/96h)
Safety: <3 %
Fire Rating:B2
