Help CenterCold Room for Frozen Meat and Fish
Related Products
Specifications
1).Polyurothane Sandwich Panels with double colored sheet.2).World Brand compressor and good quality refrigeration system.
Feature of cold room:
1).Material.

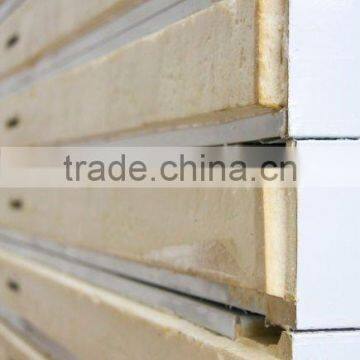

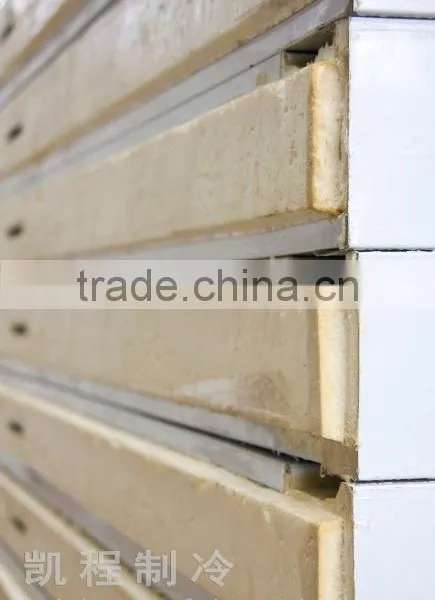

Polyurethane Sandwich Panels,the external and inner panels cover is of zinc-coated steel sheet with a plastic finish.the heat insulation is of rigid foam polyurethane.
2).Specifications.
Panel Available Thickness: 50mm, 75mm, 100mm, 120mm, 150mm, 175mm & 200mm
Panel Available Width: 500-1200mm.
Both Surface of Panels: to be plating 0.326mm,0.4mm, 0.5mm or 0.6mm Thickness Pre-painted hot galvanized Steel Sheet coated with 200 micron PVC.
3).Installations.
Panels Connect Method: Dry-Joint System with Cam Lock,between two panels are male and female.the floor panels are reinforced and they withstand distributed load up to 2000Kg/SQ meters.also the cold room should be installed in a sheltered place away from direct sunshine,dust and rain.
4).Others.
Regular Steel Sheet Color Code: RAL 9002(Grey White)
PU Material Origin: Germany, Japan or Korea
Density: 40 +/- 2 kg/M3
Heat Transfer Quotiety: <0.022 W/M2*K
Pressure: 0.10Mpa
Cubic Area Change : <1% (-30 C-100 C/96h)
Safety: <3 %
Fire Rating:B2
5).Shipment.
All the panels were separated to piece by piece,and packed waterproof package before shipment.A 20ft container can fit about 250sqm for 10cm and 40ft container can fit about 500sqm 10cm thickness panels.
2.Cold room door.
1).Swing door.Swing Door:Standard dimension:10mm thicness/W750mm×H170mm(with frame and lock)
2).Sliding Door:Standard dimension:10mm thickness/W120mm×H230mm or W130mm×H250mm(with frame and lock)
