Specifications

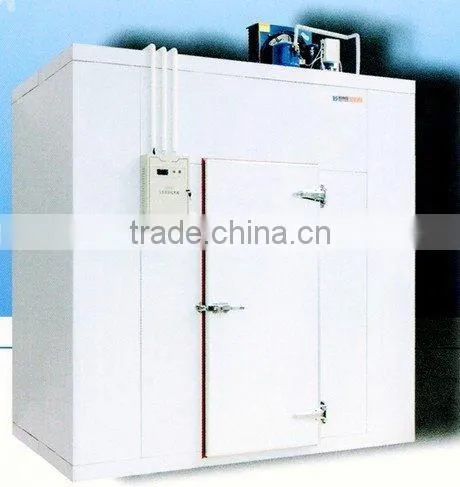

Used to store fish, fresh and freeze rice products, ice cream, and so on such as low-temperature storageFeatures:
1) Most advanced refrigeration technology and the insulation board manufacturing technology.
2) Perfect AutoCAD engineering design, advanced production technology, strict quality management, guarantee the production of products in each link, so that bring the user's requirements into reality.
3) The thickness of body board: 150mm, 200mm. Plate is filled with EPS insulation materials, double-sided for the colored coating steel plate, colored steel plate surface processed into stealth groove, and its light weight, high strength, good insulation properties, corrosion resistance, anti - aging, the library board easily and quickly assembled, are cold body insulation Treasury select one of the best materials.
4) Freezing storage uses advanced micro-computer control system and advanced control method. Liquid crystal is used to display, inner temperature , boot time, defrosting time, fan motor delay time, alarm instructions and other technical parameters. Easy operatation is very convenient to the user.
5) The main components of freezing storage are selected famous brands, which will ensure the stable running, good insulation, low energy and high-quality.
6)The outline dimensions, storage temperature, unit placement, doors opening style, storage layout and so on, all of which can be based on the user's specific requirements. The design of custom-made meet the needs of users maximumly.
Parameters are as following:
| Model | Volume (m3) |
Overall Dimensions | Ref(w) | Compressor (Frascold) |
Equip Unit | Evaporator | Power (HP) |
Power Supply |
|
| Model | Qty | ||||||||
| ZKG60 | 60 | L5m×W4m×H3m | 7450 | S10 39Y | SA-S10 39Y | PCE-8/40 | 1 | 10HP | 3Ph 380V 50Hz |
| ZKG90 | 90 | L7.5m×W4m×H3m | 9770 | S15 51Y | SA-S15 51Y | PCE-12/60 | 1 | 15HP | |
| ZKG150 | 150 | L12.5m×W4m×H3m | 12540 | S20 56Y | SA-S20 56Y | PCE-12/60 | 2 | 20HP | |
| ZKG200 | 200 | L16.5m×W4m×H3m | 17870 | V30 84Y | SA-V30 84Y | PC-16/80 | 2 | 30HP | |
Note:
1)Refrigerant:R22 or R404a
2)Italy Semi-hermetic Piston Compressor(Originally)
3)Room Temp:-18C to -20C
4)Evaporative Temp:-25C to -27C
5)Condensing Temp:+50C for air-cooled,+40C for water-cooled
6)Air-cooled or water cooled
7)PU foam sandwich Panels.120cm thickness of panels
This is just our factory standard type.if you need any other size of coldroom.please inform me soon.then we will offer you our best solutions soon.
