Help CenterLifting Un-balanced Hydraulic Choke Manifold
Related Products
Choke & Kill manifold:
♦Choke manifold is necessary to control well-kick & blowout and put the pressure control technology on oil/gas well into force.
♦Complete with hydraulic control console for remote control.
♦The manifold is matched with barrel choke valve that is required to be orifice choke valve in case of stop function being required.

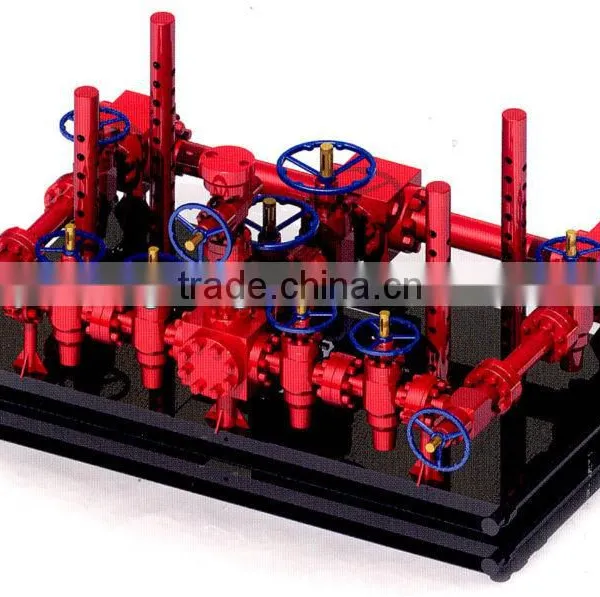

Lifting un-balanced hydraulic choke manifold
Main technology parameters:
SN |
Type |
MPa(Psi) |
mm(in) Main bore |
Mm(in) Side bore |
Remarks |
1 |
(Y)JG14 |
14MPa (2000Psi) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
Various make-up models shall be provided according to the actual requirement of user in any oil fields |
2 |
(Y)JG21 |
21MPa (3000Psi) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
|
3 |
(Y)JG35 |
35MPa (5000Psi) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
|
4 |
(Y)JG70 |
70MPa (10000Psi) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
|
5 |
(Y)JG105 |
105MPa (15000Psi) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
