Commerical Ball Press/briquetting Machine Jumbo 90 With High Quality

Commerical Ball Press/briquetting Machine Jumbo 90 With High Quality photo-1
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
3-5t/h
Motor Type:
Other, according to requirement
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Ningbo/Shanghai/Tianjin port of china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Production Capacity 3-5t/h
Motor Type Other, according to requirement
Power(W) 7.5kw
Place of Origin Henan, China
Brand Name Furui
Model Number FR360-4
Dimension(L*W*H) 2.26*1.53*1.98m
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Commerical ball press/briquetting machine jumbo 90 with high quality

Product Description



Introduction:

1.Ball press machine is also called powerful pressure ball press machine, dry powder

ball press machine,the roller ball press machine, goose egg molding machine, and so on.

2.The machine has the characteristic of high molding pressure, main engine RPM adjustable

 and a spiral feeding device.



3.The ball press machine is mainly used in coal forming; Dry powder molding;Desulfurization gypsum molding; Coke powder molding; Scrap iron and various metal mineral powder molding and so on.

Commerical ball press/briquetting machine jumbo 90 with high quality



Processing:

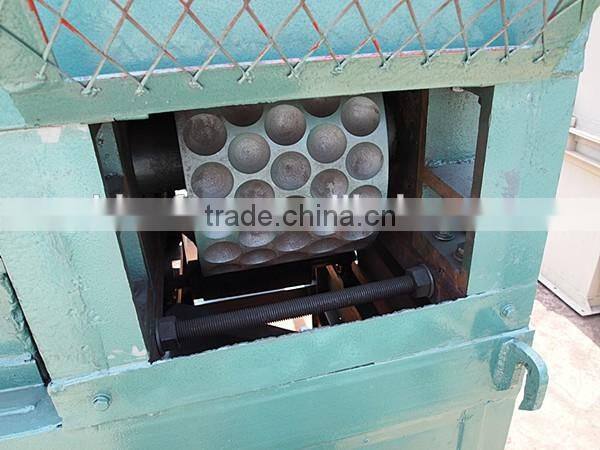

This series briquette machine pass power materials onto two pressure rollers through the reducer, then two rollers rotate to two sides, so materials naturally enter the roller molds, with



the rollers rotation.  When the material reach the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.



Technical parameter:

Model

Reducer

Roller Dimension

Shaft Speed(r/min)

Motor Type

Motor Power(kw)

output(T/H)

Overall Dimension

FR360-4

ZQ350

φ360*250

15-17

Y132M-4

7.5KW

3-5

2.26*1.53*1.98

FR360-2

ZQ350

φ360*250

15-17

Y132M-4

7.5KW

3-5

2.26*1.53*1.76

FR400-4

ZQ400

φ400*250

15-17

Y160M-4

11KW

4-7

2.3*1.38*1.96

FR400-2

ZQ400

φ400*250

15-17

Y132M-4

7.5KW

4-7

2.2*1.38*1.91

FR430-4

ZQ400

φ430*250

15-17

Y160M-4

11KW

5-8

2.4*1.53*2

FR430-2

ZQ400

φ430*250

15-17

Y132M-4

7.5KW

5-8

2.3*1.53*1.9

FR500-4

ZQ500

φ500*350

15-17

Y180L-4

22KW

8-10

2.61*1.75*2.35

FR500-2

ZQ500

φ500*350

15-17

Y160L-4

15KW

8-10

2.61*1.75*2.1

FR650-4

ZQ650

φ650*350

15-17

Y1200L-4

30KW

12-20

3.42*2*2.4

FR650-2

ZQ650

φ650*350

15-17

Y180L-4

22KW

12-20

3.42*2*2.2

FR750-4

ZQ750

φ750*380

14-16

Y200L-4 Y112M-4

30KW 4KW

25-30

3.7*2.55*2.6

FR850-4

ZQ850

φ850*436

14-16

Y225S-4 Y112M-4

37KW 4KW

35-40

3.9*2.6*2.7

FR1000-4

ZQ1000

φ1000*530

14-16

Y225M-4 Y112M-4

45KW 4KW

40-45

4*2.8*2.8

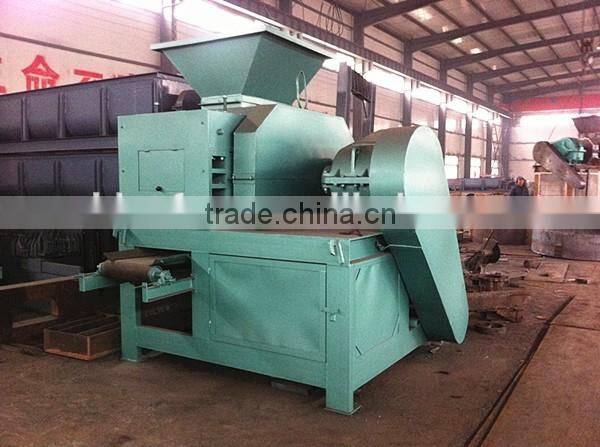

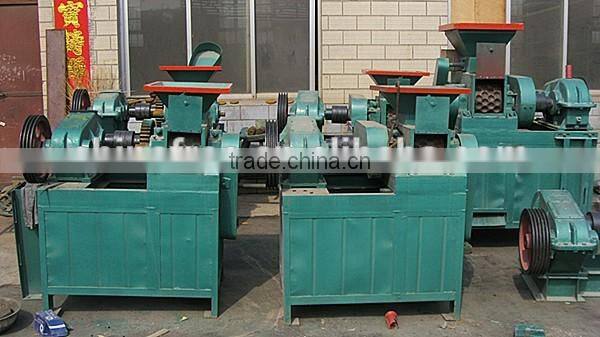

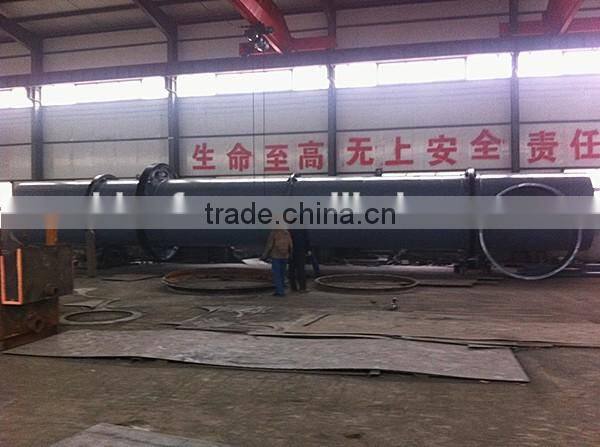

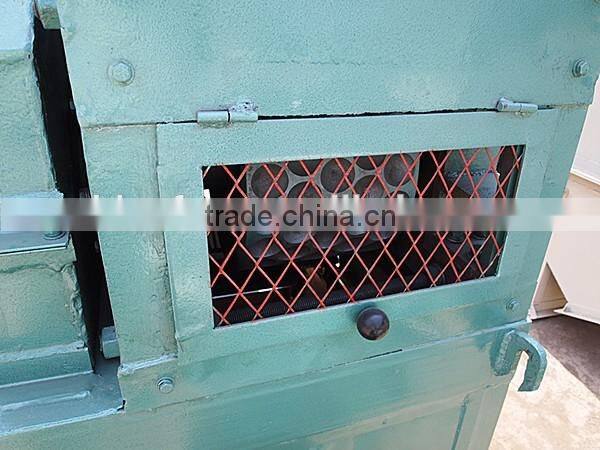

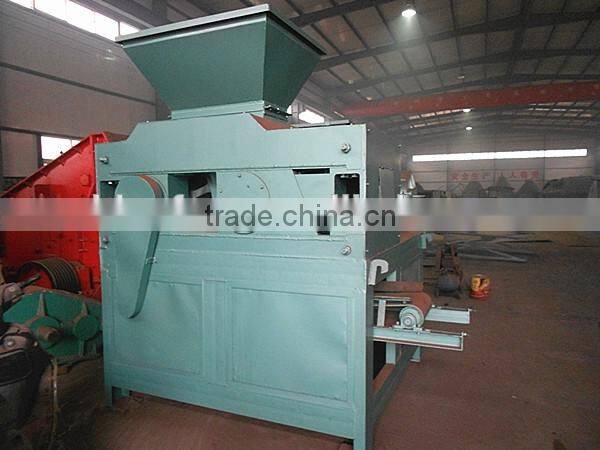

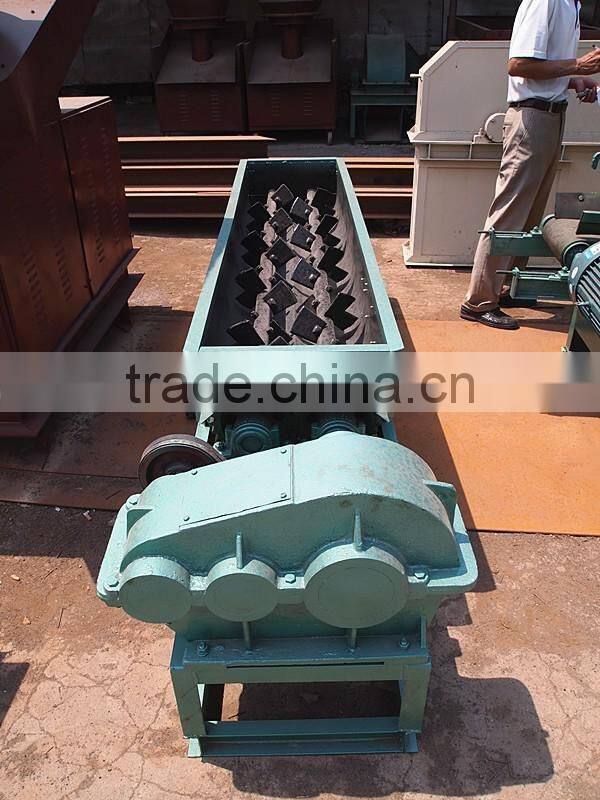

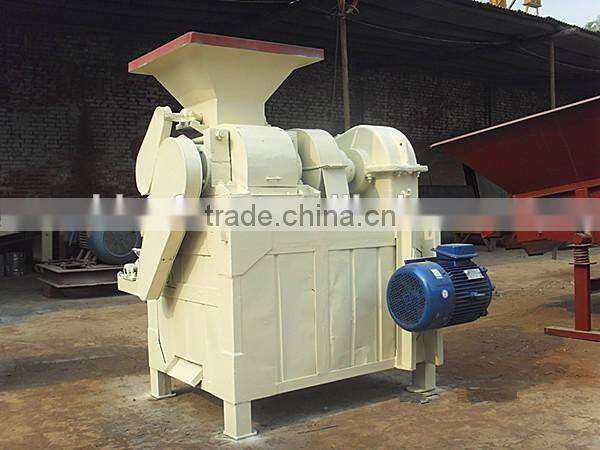

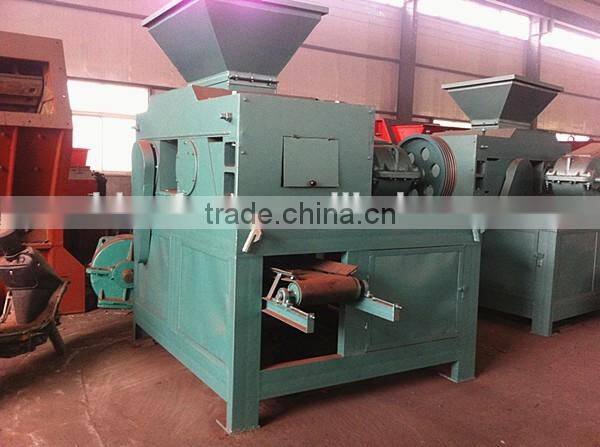

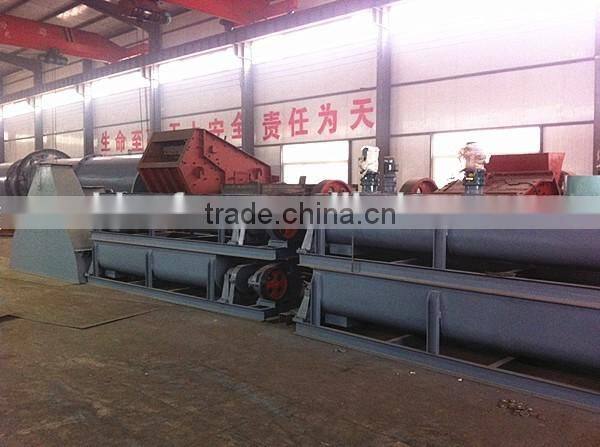

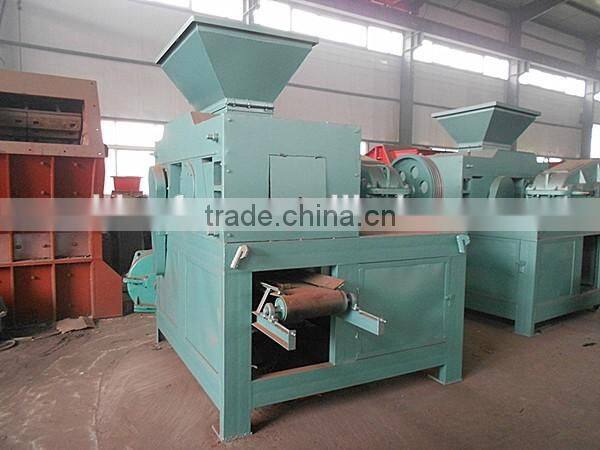

Photos and working shop:

Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality







Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality



Commerical ball press/briquetting machine jumbo 90 with high quality

Commerical ball press/briquetting machine jumbo 90 with high quality

Commerical ball press/briquetting machine jumbo 90 with high quality





Packing&shipping:

1.export standard wooden case packing
2.shockproof packing
3.Or as your specific demand

Commerical ball press/briquetting machine jumbo 90 with high quality



Our service:

1.We can change the mahine voltage as customer requirements.



2.Our engineer can go outside to install and train your workers to operate the



full machine line, such as wood pellet machine line, wood block machine line,



charcoal briquette machine line etc.



3. All the machine warranty time is one year except man-made damage.



4.Professional sales will reply your inquiry within 12 hours and ship your



machine within 15-20 working days.



5. We have 4 year foreign trade experience and more than 20 years machine



producing in this aera,our customers are from USA,UK,India,Colombia,



Spain,Ecuador,Europe etc.



Copmany&information:

Zhengzhou Furui Machanical Equipment Co., Ltd.,a famous manufacturer of



making food machines,industrial machines and agriculture machines in China,is



a research,manufacturing and trade integrated modern enterprise.



Our company has a professional team, and has in-depth study in the application



of all kinds of projects, food machinery, etc. Our brand, Furui, has been the



well-known brand after outstanding development. Our company has diversified equipment.





FAQ:

Q1: What are the payment terms?



A: We usually accept payment by T/T, L/C, Western Union or Escrow.



 Q2 : Can any of the products be custom imprinted?

 A: If you need to print your company logo on the products and that is available to

be custom. Or if you have your own designed idea and that will be our honor to

 customize for you.



 Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?

 A: We are alibaba legitimate certification company (VIP), and we support payment



 terms like L/C, Escrow, to ensure your safety.



 Q4: How to ensure that I received the machine undamaged?

 A: At first , our package is standard for shipping, before packing, we will confirm

 product undamaged, otherwise, please contact within 2days. Because we've bought

insurance for you, we or shipping company will be responsible!



Q5 : Where will the orders be shipped from?

 A: It will ship from the main ports China. And We will find the shipping company

which will offer the best and most economical freight for our customers.

If you are interested in our machine,pls contact me ,thank you!
