Heat-resistant 25.5mm gummed pvc insulating electrical tape
- 300000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Litools | Model Number: | LC-1100 |
Type: | Other, Insulation Tape, Insulation Tape | Material: | Other, PVC, Acetate Cloth | Application: | Other, High Voltage, Low Voltage |
Rated Voltage: | 600~89000V | Tensile Strength: | 1.8N/10mm |
Product Description
Specifications
gummed pvc insulating electrical tape1.wide:0.09-1.03m
2.length:3-50m
3.pvc film coated pressure-sensitive
Heat-resistant 25.5mm gummed pvc insulating electrical tape
Description of electric tape
For insulating and binding electric wire protection, electrical insulation protection.
Features:Usage: Mainly for automobile layout wire wrapping, insulation protection,
the principlematerial used in the field of automobile, home applinance, refrigeration,electron, etc.
Properties: Use PVC film as the basic material, is outstanding in insulation,
coldresistance, voltage resistance, acid-alkail resistance, solvent resistance, etc.
high voltage electrical insulating tape technical data sheet:
Sheet A:
Standard Sizes | |||
Width | Length | Core | Thickness |
19mm | 5m | 32mm | 0.5mm |
19mm | 10m | 32mm | 0.5mm |
25.5mm | 5m | 32mm | 0.5mm |
25.5mm | 10m | 32mm
| 0.5mm |
Sheet B:
Property | Value | Unit | Test method |
Total thickness | 0.13 | mm | ASTM-D-1000 |
Tensile strength | 20 | N/cm | ASTM-D-1000 |
Elongation at break | 200 | % | ASTM-D-1000 |
Continuous operating temperature | 90 | °C | ASTM-D-4325
|
Emergency overload temperature | 130 | °C | ASTM-D-4325
|
Water absorption | 0.02 | % | ASTM-D-570
|
Ozone resistance | pass | - | ASTM-D-4325
|
UV resistance | pass | - | ASTM-D-4325
|
Recommended Use:
For insulating and jacketing of splices on power cable from 600volts through 138,000volts and
forbuilding stress cones and jacketing of terminations on power cable from 600volts through 35,000volts.
A major component in transition joint construction

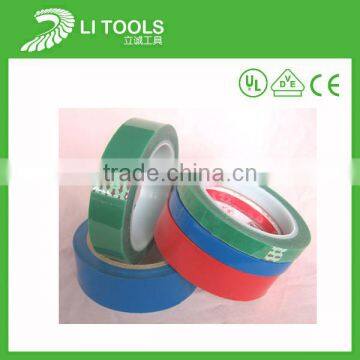

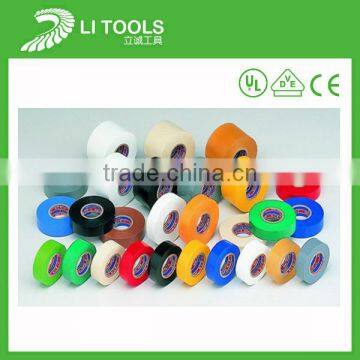

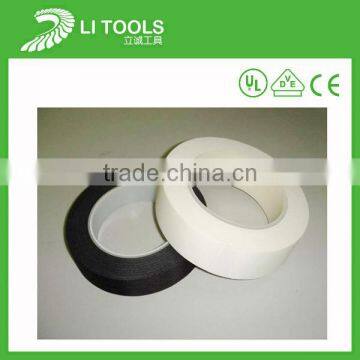

electrical insulating tape show:
Technological process:
Who are we:
Yuyao Yilong Tools Co.,Ltd. is specialized in measure tape, knife and kinds of hand tools.
Established in 2003,we have a strong and experienced team and skilled workers term.
All goods test two times for each one by QC and QA before shipment.Exported to more than 50 countries and regions.
Certification:
Order Process:
Our partner:
Our team:
Why choose us:
FAQ:
1. Are you a trader or manufacturer?
We are both. We have our own factory in Yuyao.
2. What's your main products?
We focus on hand tools. And our vision is to be the best hand tools supplier in China.
3. What is your delivery time?
It depends on your order item and quantity, 15-30days accordingly.
4. Can I request samples?
In stock samples can be sent you in 3 days , and the OEM samples in one week.
5. What's the shipping way?
Regarding the small quantity order, we can send them by DHL/Fedex express which we have 35%
discount and the large quantity goods are shipped by ocean shipping according to client's demands.
6. How can you ensure the quality inspection?
As the order process, all goods test two times for each one by QC and QA before shipment.And we can supply you the picture.
7. Can you accept OEM or ODM?
Yes, of course. And logo acceptable.
8. Still can't find the answer.
Please email us we and will try to help.
If you have any requirement, pls feel free to contact me.
