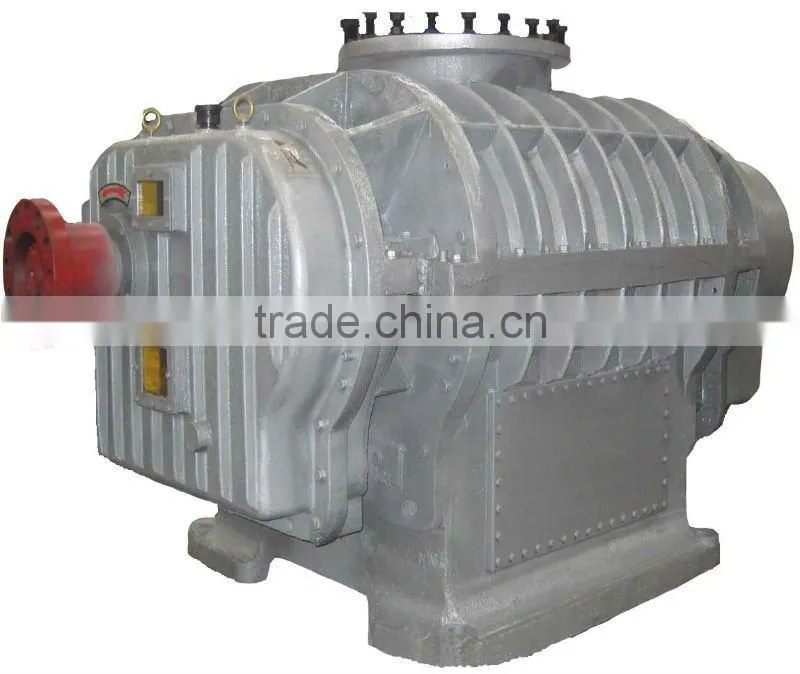

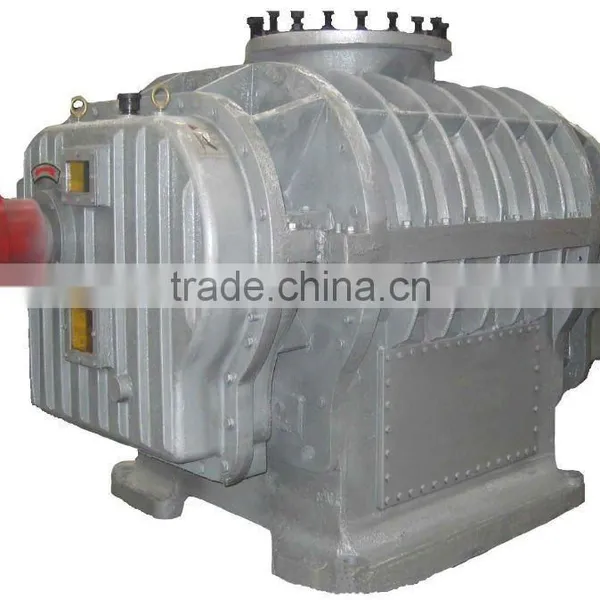

Fully Seal Two-lobe Blower

Fully Seal Two-lobe Blower thumbnail-1
Fully Seal Two-lobe Blower photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hetian
Model Number:
HDRR-L-T-102
Contact Supplier Request Quote Chat Now
Qingdao Hetian Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hetian
Model Number HDRR-L-T-102
Application Air Blower
Type Roots Blower
Pressure Medium Pressure
Power Source Electric Blower
Rated Power 90-450kw
Rated Voltage 380V,400V,415V,6000V

Specifications

1)fully seal two-lobe blower
2)high-pressure conditions
3)more efficient and economical
4)50HZ, 60HZ

 fully seal two-lobe blower



Leading features:
Our company took the lead for the first time the piston ring applied in the roots blower, the process uses a new era of high advanced technology innovation
It has been successfully developed the most advanced piston ring seal and the way to greatly extend the original packing seal maintenance and replacement cycle extended from 6 months to 3 years and above
Ensures no leakage in a variety of gases and at the same time greatly reduce maintenance operation cost, breaking a few big state-owned enterprises have technology monopoly status quo
Thoroughly solved the twin/tri-lobe roots blower oil spill and leakage phenomenon, so the sealing method is more efficient and economical. It's the first option of the special gas industry (natural gas/methane/carbon dioxide/sulfur dioxide/inflammable/explosive gases and more) and high-pressure conditions.





Model: HDRR-L-T-102
Capacity scope: 312-421m3/min
Pressure scope: 9.8-49kPa
Discharge dia.: 600cm
Cooling type: Air Current
Drive type: direct coupline
Matched motor power: 90-450kw
Usable voltage: 380V,400V,415V,6000V
Frequency: 50HZ, 60HZ
Weight: 9200Kg
Dimension: 2519×1880×1700mm
Package Dimension: 2580×1950×1750mm



We have more types available. Please take your choice.



HDRR-L-T-81
HDRR-L-T-82
HDRR-L-T-83
HDRR-L-T-84
HDRR-L-T-92
HDRR-L-T-93
HDRR-L-T-94
HDRR-L-T-95







fully seal two-lobe blower
