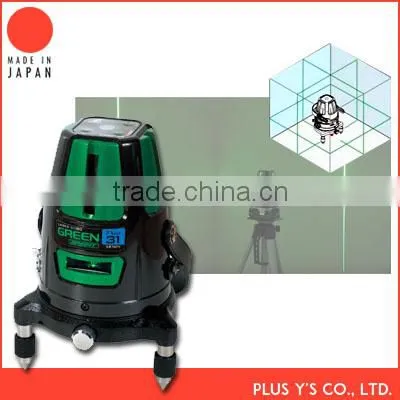

Help CenterFull Horizontal Line Green Laser Marker Made in Japan
Related Products
-
Excellent Visibility Laser Green Laser Module for Construction ApplicationsNegotiableMOQ: 1 -
Construction Equipment Fiber Laser Marker Made in JapanNegotiableMOQ: 1
-
Japanese Quality for Better Accuracy Digital Vernier CaliperNegotiableMOQ: 1
-
For Measuring Outside, Inside, Depth Digital Vernier Caliper Made in JapanNegotiableMOQ: 1
-
Quality for Better Accuracy Digital Vernier Caliper Made in JapanNegotiableMOQ: 1
Compact Line, Dot and Combo Laser Levels for Construction Applications
Excellent visibility Green Laser

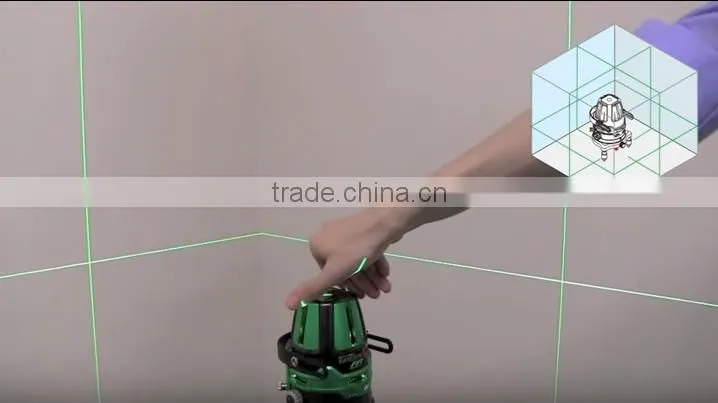

The green laser can be irradiated at an angle of 360 degrees.

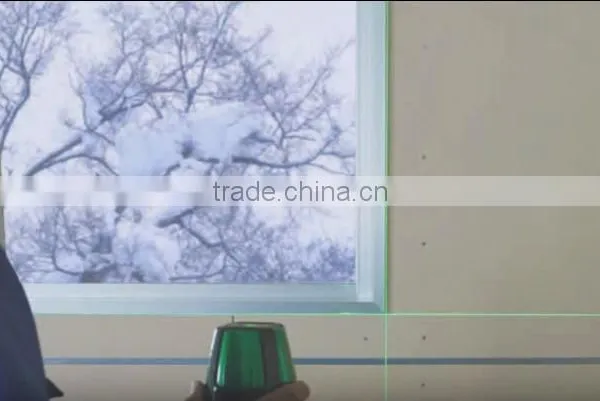

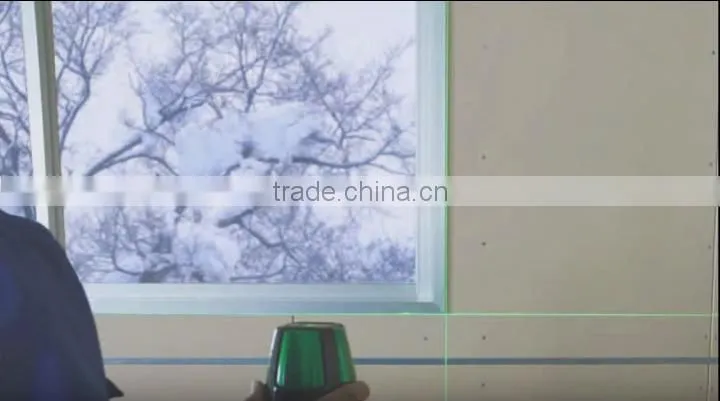

Equipped with a green laser of direct expression, you can irradiated with a stable line even in low temperature field.
Also the visibility of the line compared to the red laser has become much better.
The output of the laser, has become a highly secure JIS class 2.

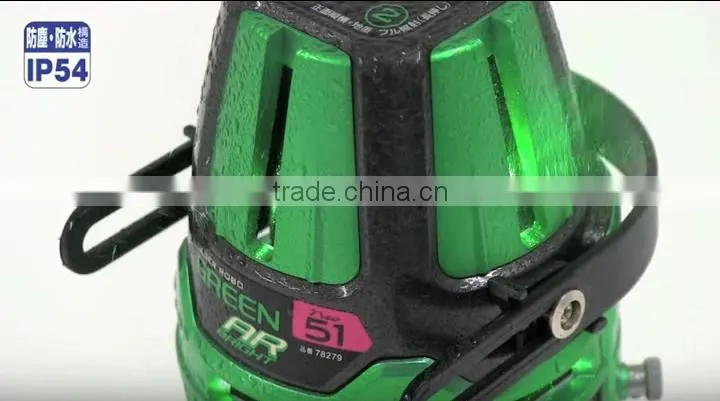

Dustproof and waterproof structure
It is safe in a sudden rain or dusty place.
It is fine in cold place.
Handle can be put to the body
It does not get in the way of laser irradiation.
AC adapter correspondence
It can be used with confidence in the long-term work.

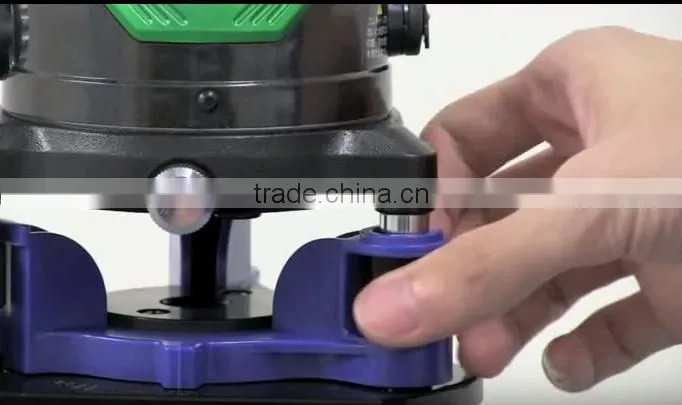

Horizontal tripod adjustment adapter
When you want to use with the tripod, its original adapter can be leveling only at the legs of the body without the adjustment of the legs of the tripod.

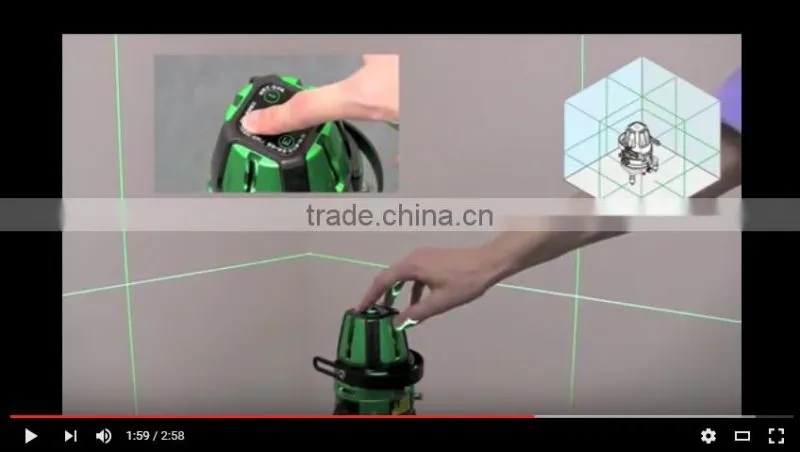

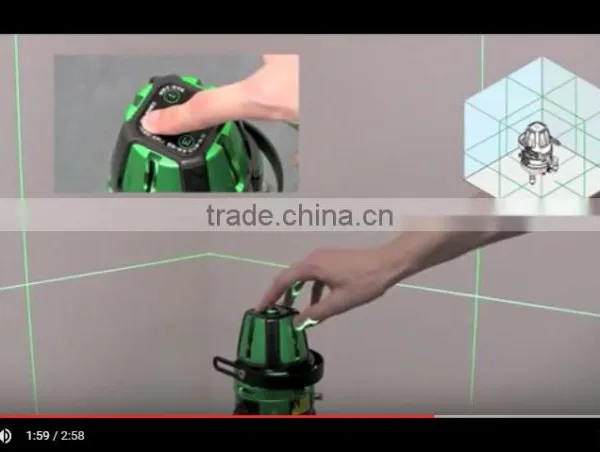

See this video and learn how easy to use it.
Copy following link and open a new browther tab and paste it.
You can see 2:58 min video at YouTube.
/watch?v=YByovz08g0Q
/watch?v=YByovz08g0Q
The video is in Japanese language but you will get to know the benefit of this machine easily.

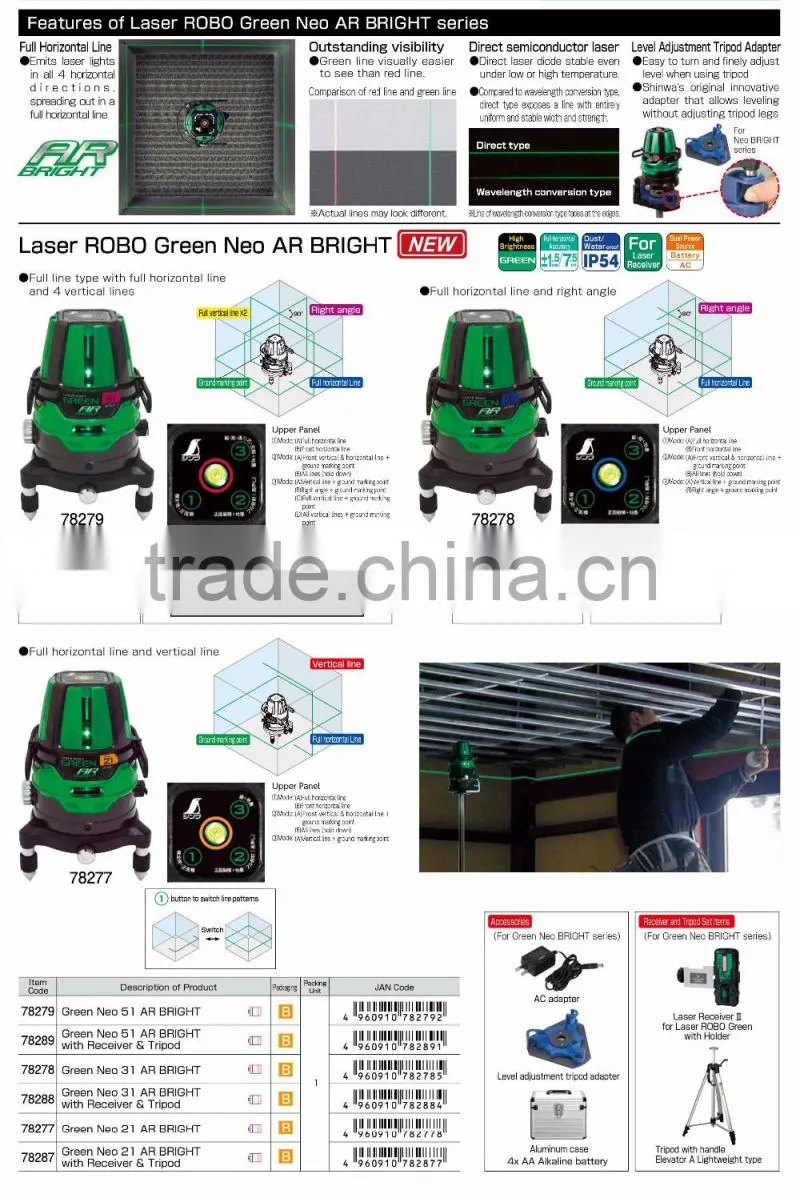

Variation
| Code | 78279 | 78278 | 78277 |
| Model | Green Neo 51 |
Green Neo 31 |
Green Neo 21 |
| Light Source | Visible light semiconductor laser | ||
| Output | Less than 1mW (JIS class 2) | ||
| Wave Length | 520nm (Green) Ground Marking Point : 650nm (Red) | ||
| Display Accuracy | Vertical : ±1mm per 7.5m |
||
| Plumb Point Accuracy | ±1mm per 3m | none | |
| Vertical Accuracy | ±0.03° at 90° | none | |
| Base Line Accuracy | ±1mm per 7.5m | none | |
| Angle of Emergence | Vertical : About 130° Horizontal : About 105° | ||
| Line Diameter | About 1.8mm at 5m ahead (about 2mm at 7.5m ahead) | ||
| Automatic Correction Range | ±2.5° | ||
| Tilt Alarm | Laser light blinks when it gets over automatic correction range (about 1 second interval) *1 | ||
| Rotary Fine-Adjustment Range | 360° | ||
| Braking System | Porcelain | ||
| Power Source | 4x AA Alkaline batteries or AC adapter *2 | ||
|
*3 Continuous Usage Time (A), (B), (C), a nd (D) c o r r e s p o n d t o the previous pages *4 *5 |
1. Mode |
1. Mode (A)7hrs (B)27hrs |
1. Mode |
| Battery Usage Alarm | Laser light blinks for 8secs when turned on (at 0.5secs intervals) | ||
Maximum Range of Line |
About 35m (when with optical receiver) *6 | ||
| Dustproof/Waterproof | IP54 *7 | ||
| Tripod Screw | 5/8inch | ||
| Size(mm) | Diameter 128 × Height 190 (body φ110) | ||
Approximate Weight |
1,320g | 1,290g | 1,260g |
*1 All of the lines will go off, and only the horizontal line will blink. Return to automatic correction range and it will return to the previous state. *2 AA nickel hydride batteries can be used, but the AC adapter will not charge the
device. *3 When using AA alkaline batteries at 20℃. *4 With the AR Series, turning the power switch ON automatically goes into 1. mode’s full horizontal line. *5 Hold down the 2. button to turn on all the lines. Using an
AC adapter is recommended when using full lines over a long period of time. *6 Depends on circumstance and position of use. Receiving over 20m ahead is possible but accuracy is not guaranteed. *7 Dust-proof
performance : It protects from dust coming into the body. A little breaking dust will not prevent it from working properly. Water-proof performance : It will not be harmfully affected by splash of water from any directions.

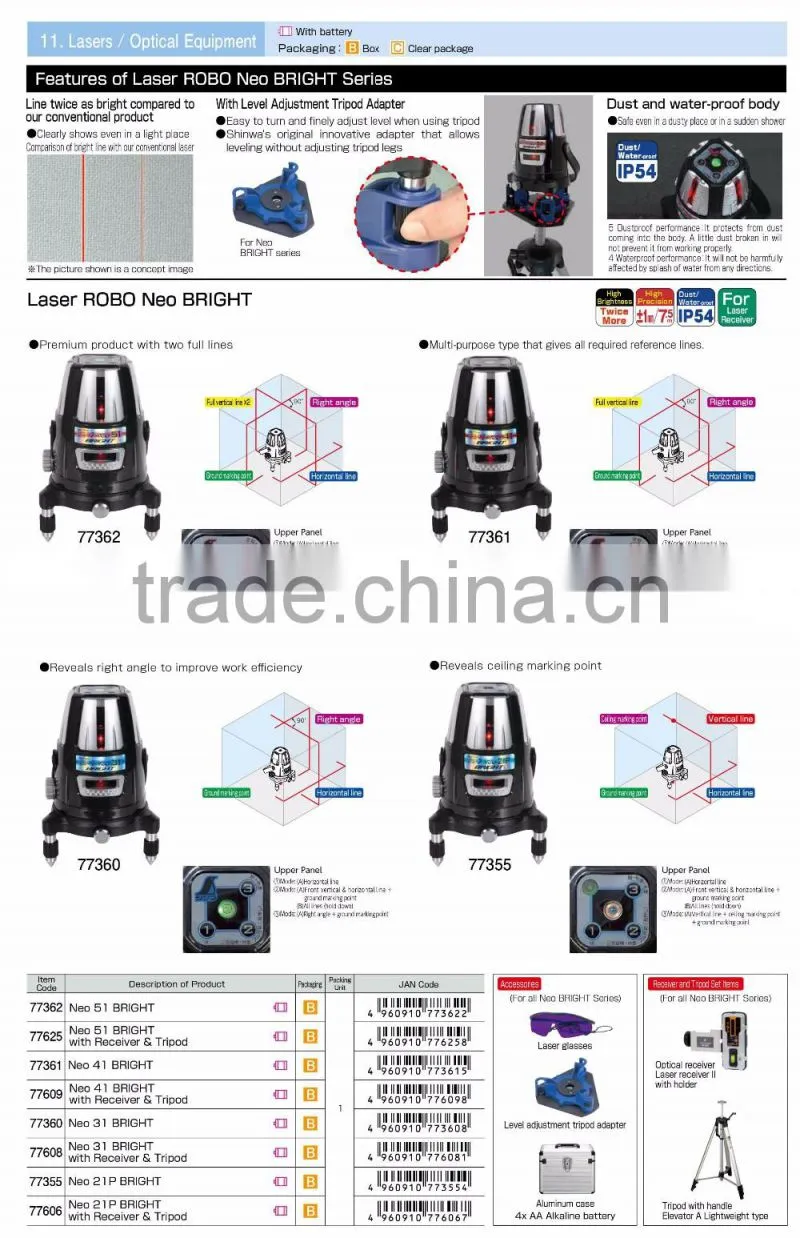

If you are looking for the red lazar type.
The line is much clear than other models.
