refined sugar packing machine

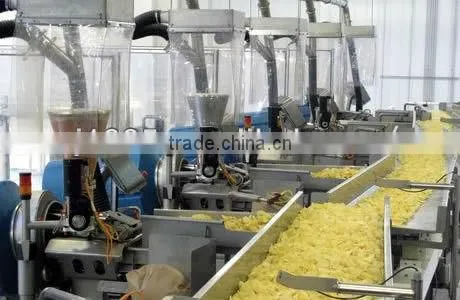

Applications:
Suitable to package snack food demanding high accuracy, such as puffed food, corn flakes, pet food, baby food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, small hardware, medicine etc.
Introduction
| How to choose measuring filler? | |

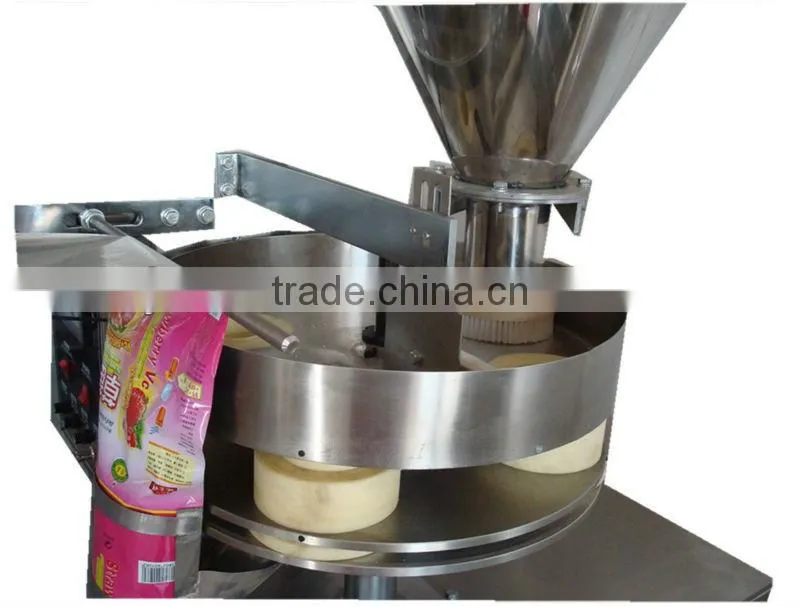

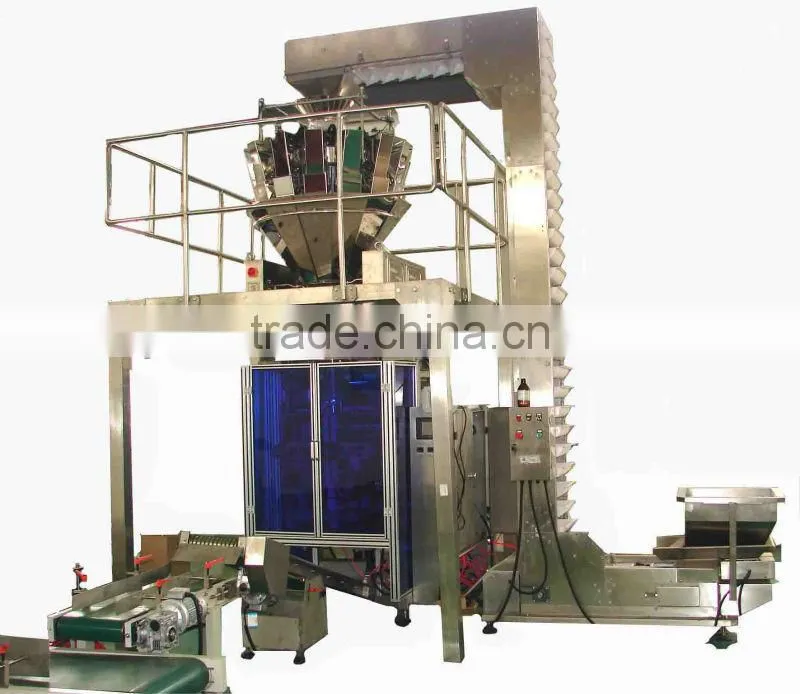

| Granule materials | a) Volumetric cup b) Linear weigher c) Multi-head weigher |
| Powder materials | Auger screw filler |
| Liquid materials | Piston pump |
Features:
- Low cost high gain, high speed and efficiency.
- Famous brand PLC control system, touch screen, convenient to operate.
- Film drawing down system and horizontal sealing controlled by servo motor.
- minimize the loss with complete automatic warn protection function.
- It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

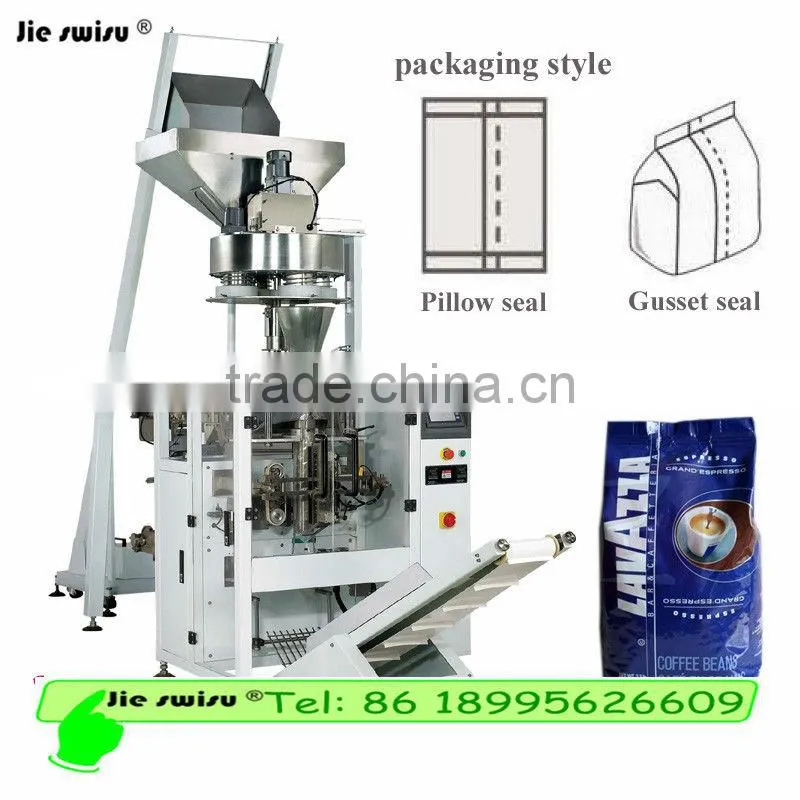

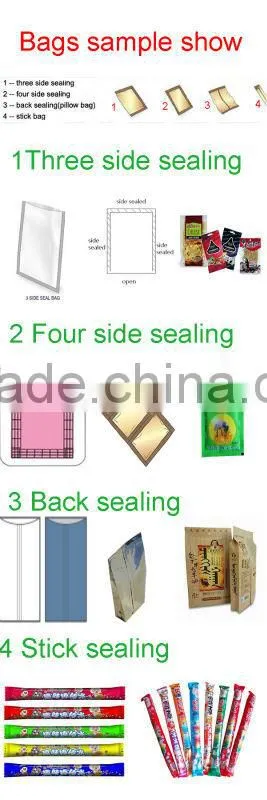

- the way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
Specification:
Model |
CJPC-320 |
CJPC -420 |
CJPC -520 |
CJPC -620 |
CJPC -720 |
Max. Measuring Range |
500 ml |
1000 ml |
2000 ml |
3000 ml |
4000 ml |
Bag Length |
80-200 mm |
60-300 mm |
80-350 mm |
100-400 mm |
100-450 mm |
Bag Width |
50-150 mm |
60-200 mm |
100-250 mm |
100-300 mm |
140-350 mm |
Max. Film Width |
320 mm |
420 mm |
520 mm |
620 mm |
720 mm |
Speed (bags/min) |
15-60 |
15-50 |
15-40 |
10-35 |
10-30 |
Power |
220V, 50Hz, 2kw |
220V, 50Hz, 2.2kw |
220V, 50Hz, 2.5kw |
220V, 50Hz, 4kw |
220V, 50Hz, 4.5kw |
Film Material |
Composite film: OPP/CPP, PET/PE, BOPP/PE, PET/Plated AL/PE |
||||
Special size or bag style, please contact me.
|
|
|
|
|
|
|
Optional Parts for Main Machine:
1. Gusset pouch forming device
2. Sachet header hole puncher
3. Link bag device
4. Date code printer

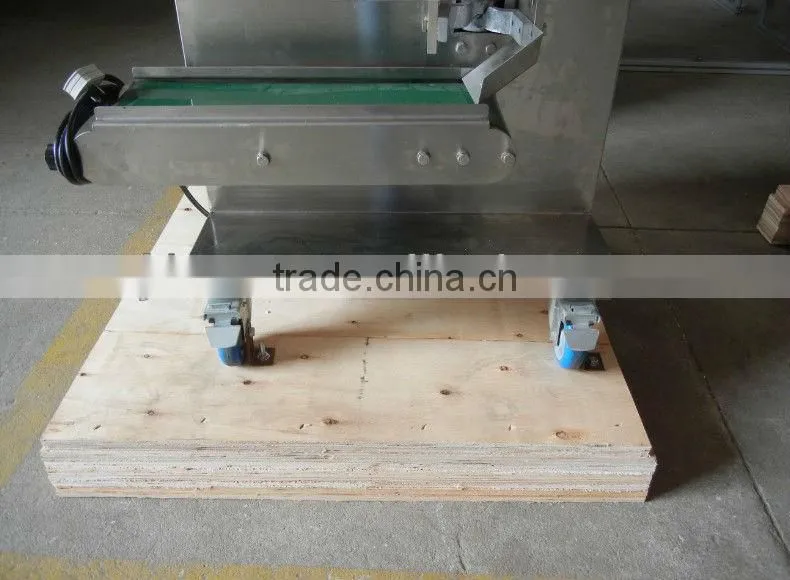

Package :
|
|
|
Packing :
Sale-after service:
- Warranty: One year since the date of delivery. If there is any wearing part be broken within the warranty and isn't caused by un-properly operation, then the we would offer the new parts for free.(If you use it in a stable voltage,and no big wrong with the machine,it can work for about 8 years)
- Inspection and test :The buyer will do the machine inspection and test when the machines are ready.
- Other : Accompany with the machine we will supply the English instruction book and operational video to make sure you can operate the machine .
Welcome friends from all over the world:
Come on,friends! contact us now!
If Possible, welcome to visit our factory at any time !
