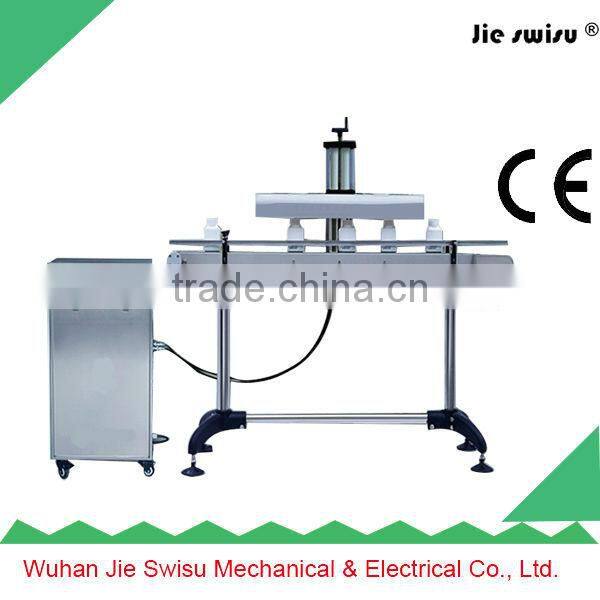

Help CenterLB Series Automatic Aluminum Foil Sealing Machine
Related Products
-
Water Purification MachineNegotiableMOQ: 1 Set -
One Grade High Quality Industrial Water PurifierNegotiableMOQ: 1 Set
-
Water Purifier EquipmentNegotiableMOQ: 1 Set
-
High Quality Water Purifier EquipmentNegotiableMOQ: 1 Set
-
CJ Semi-automatic One Grade Hospital Waste Water Treatment EquipmentNegotiableMOQ: 1 Set
Specifications
1.aluminum foil seaing machine.nnect to production line.
3.stainless steel.
4.CE approval.
5.lowest price.
1. Working principle:

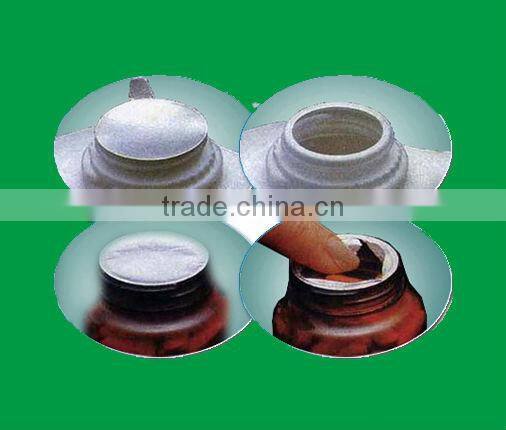

a. Online Continuous Electromagnetic Aluminum Foil sealing machine is making use of the principle of electromagnetic.
b. Bottleneck s aluminum foil makes high heat in a moment, and then make it fused on the bottleneck so that the machine
could be up to the sealing function.
c. Good moisture proof ,mould proof,forged proof, and prolong the length for preservation.The machine mainly working
for assembly line, 24 hours continuously.
2. Feature
a. High speed sealing,equip with assembly line,adapting to assembly line, big batch—type production (seal);
b. The machine has no creeper transmit, especially for the assembly line which has transmitted procedure.
c. Sealing bottle height could be adjust and adapted all kinds of bottle.
d. There are two sets of Main Board and Power Amplifier in the machine so that it could generates enough electirc
current and satisfy the rapid sealing. Match automatic reject device without aluminum foil bottle, automatic sealing bottle er;
e. Match automatic reject device without aluminum foil bottle, automatic sealing bottle er;
f. All stainless steel mould forming case,beautiful and dignified;
g. installing and testing easily,stable performance and reliable;
h. The machine adopt the heating ,adapting to seal all kinds of plastics bottle and compound
i. plastics bottleneck . Meet a criterion of GMP;
j. Sealed containers material quality are polypropylene (PP), polystyrene (PS),polyester(PET), polytene (PE),ABS,Glass and so on .

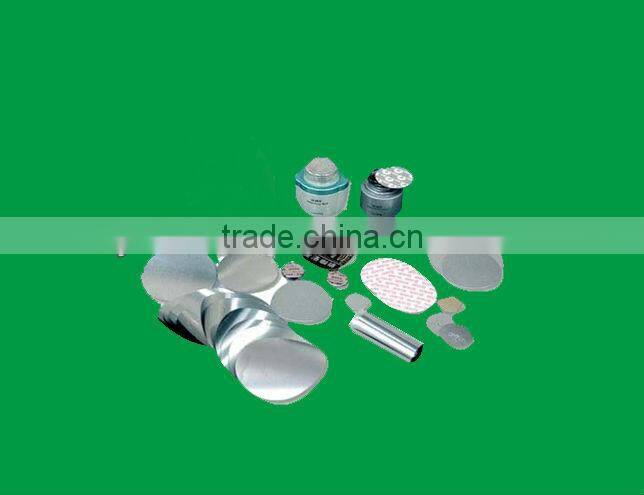

k. there is a wide range of uses of it .Mainly for medicine,grocery,oil,daily chemicals,agrochemicals and other industries.(Our company also provides all kinds of material—induction aluminum foil film.)
|
3. Technical parameter
| |||||||
Model |
LB—ZX—1800Z (separate type) |
LB—ZX—2500Z (separate type) |
|||||
Voltage |
AC220V 50/60Hz |
||||||
Cooling style |
Air cooling |
||||||
Power |
1800W Max |
2500W Max |
|||||
Sealing height |
50—250mm (adjustable) |
50—300mm (adjustable) |
|||||
Conveyor |
PVC nylon straps |
plastics Plate belt |
PVC nylon straps |
plastics Plate |
Stainless steel |
||
width:13cm |
Width:10cm |
Width:13cm |
Width:10cm |
Width:10cm |
|||
Sealing Speed |
≤10 M/MIN ( adjustable ) |
≤12 M/MIN ( adjustable ) |
|||||
Applicable Diameter |
Dia15—60mmDia30—90mm |
Dia10—65mmDia30—90mm/Dia60—120mm |
|||||
Daily capacity |
≤150bottles/min ≤100bottles/min
|
≤210bottles/min ≤150bottles/min ≤120bottles/min
|
|||||
Appearance |
Stainless steel |
||||||
Net weight |
58Kg |
72Kg |
|||||
Working size |
420mm*230mm*890mm |
450mm*250mm*920mm |
|||||
Conveyor size |
(L):1.2M/1.6M/2.0M |
(L):1.6M/2.0M/2.4M |
|||||
