CJP Series Powder Automatic Vertical Packaging Machine

CJP Series Powder Automatic Vertical Packaging Machine photo-1
US$ 4,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, liquid
Packaging Type:
Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case, Other, Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case, plastic pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, liquid
Packaging Type Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case, Other, Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case, plastic pouch
Packaging Material Plastic, Paper, Metal, Glass, Wood
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V 380V 110V
Power 2.0KW
Place of Origin Hubei, China
Brand Name Jie Swisu
Model Number CJXH-YT08
Dimension(L*W*H) 750*850*1750mm
Weight 180KG
Certification ISO CE CO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

CJP series powder Automatic Vertical packaging machine
1.reliable performance
2.CE certificate, PLC
3. 30-70 pouch/mi
4.





CJP series powder Automatic Vertical packaging machine













product description



1. Open type SS304 auger filler,easy for daily cleaning and convenience for maintenance.

2. Servo control system,fast metering,high accuracy and low noise.

3. This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, exhausting and products transporting automatically as well as counting.





parameter





Type

CJP-320AP

CJP-420AP

CJP-520AP

CJP-680AP

CJP-820AP

Packing material

OPP/CPP OPP/CE PET/PE posite film

The bag length

50-200mm(L)

300mm(L)

400mm(L)

400mm(L)

500mm(L)

The bag width

50-150mm(W)

100-200mm(W)

150-250mm(W)

180-320mm(W)

250-400mm(W)

Film width

320mm

420mm

520mm

680mm

820mm

Packing speed

8-60bags/min

5-60bags/min

5-60bags/min

5-50bags/min

5-50bags/min

Measuring range

20-500ml

2500ml

6000ml

10L

15L

Air pressure

0.65Mpa

0.65Mpa

0.65Mpa

0.65Mpa

0.65Mpa

Gas consumption

0.6m3/min

0.6m3/min

0.7m3/min

0.8m3/min

0.8m3/min

Voltage

220V 50/60HZ

220V 50/60HZ

220V 50/60HZ

220V 50/60HZ

220V 50/60HZ

Power

1.5Kw

3.0Kw

4.0Kw

5.0Kw

5.0Kw

Outside dimensions

L1067*W1026*H 1288mm

L1388*W116*H 1536mm

L1795*W1150*1650mm

L1480*W1380*H 1850mm

L1600*W1530*H2100mm

Machine weigh

300Kg

500Kg

600Kg

700Kg

850Kg






Using Range

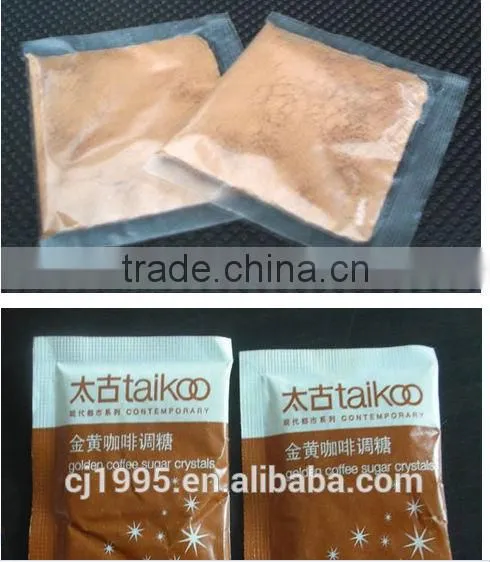

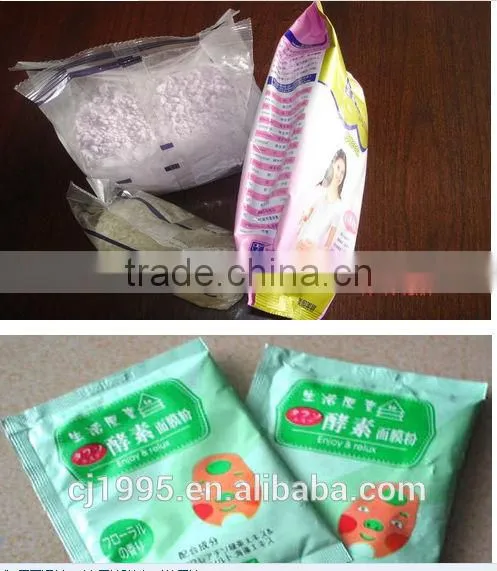

Suitable for non free-flowing products such as wheat flour,grass jelly, bleaching powder,mask powder,paprika,coffee,white cement,feed, chemical powder etc.







 CJP series powder Automatic Vertical packaging machineCJP series powder Automatic Vertical packaging machine







 CJP series powder Automatic Vertical packaging machine



 Packing



 CJP series powder Automatic Vertical packaging machine

CJP series powder Automatic Vertical packaging machine



Any more details, just tell me!



CJP series powder Automatic Vertical packaging machine
