2016 high productive automatic juice filling machine,oil filling machine
Product information :
Basic Info.
| Model NO.: | CJXH-JF2500 |
|---|---|
| Automatic Grade: | Automatic |
| Packing Capacity: | 250-2000ml |
| Carton Material: | PET bottle,glass bottle |
| Machine Material: | Food-Class Stainless Steel |
| Output: | 2500boxes/Hour |
| Export Markets: | Global |
Additional Info.
| Trademark: | Jreas |
|---|---|
| Packing: | One Wooden Case |
| Standard: | 3.7m*1.6m*2.8m |
| Origin: | Wuhan, China |
| HS Code: | 8422303090 |
| Production Capacity: | 2500 Cartons/Hour |
Product Description
CJXH-JF2500 type gable top carton filling machine is automatic with top configuration. The entire machine is made of food-grade stainless steel, and the surface is special processed to be beautiful.
1. Work flow:
Put cardboard into carton holder (manually) -- Bottom preforming -- Bottom heating and sealing -- Ultrasonic capping (Optional) -- Filling -- Top preforming -- Top heating and sealing -- Date printing -- Finished product
The whole process is controlled by PLC, and only need one person to operate.
2. Suitable for filling:
Various kinds of juice, such as acid juice, tea drink, corn drink, soy milk, pure water, oil etc.
technical parameter
1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 1800-2500 cartons/hour
3. Packing material: PET bottle,glass bottle
4. Shelf life: Depend on different product and different process
5. Capping: With capping (Optional)
6. Filling temperature: Hot filling: 88-92 degC / cold filling: 2-50 degC
7. Overall power: 25KW (three phases of electricity)
8. Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 1.4-2M3/min, without oil, water and dust
9. Cooling water: Flow volume: ≥ 40L/ min Temperature: &le: 30 degC
10. Size: (L*W*H): 3.7m*1.6m*2.8m
11. Net Weight: 3500kg
12. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.

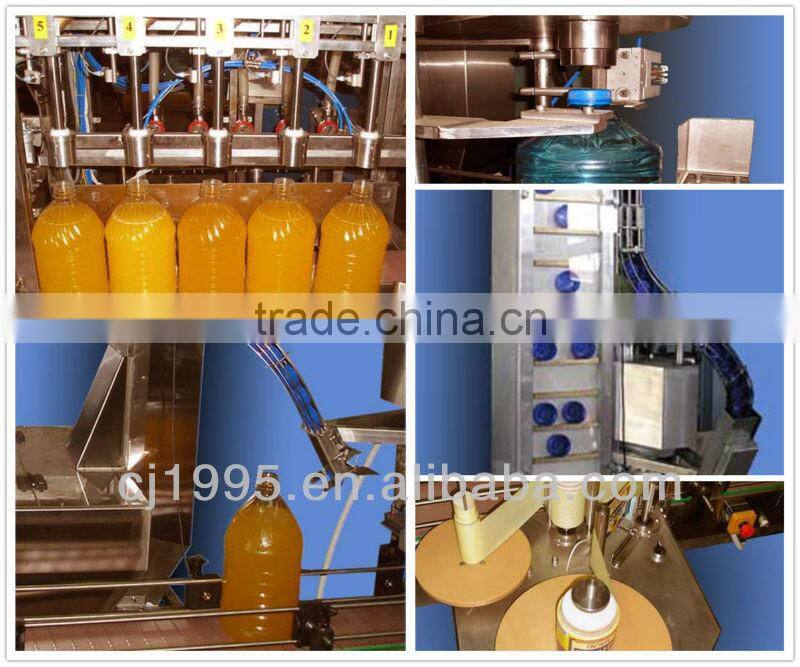

Product show:

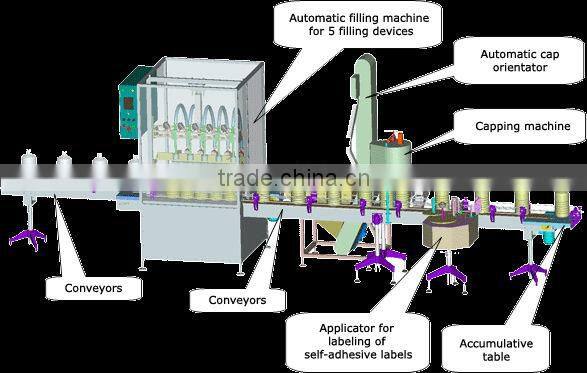

The Automatical type:

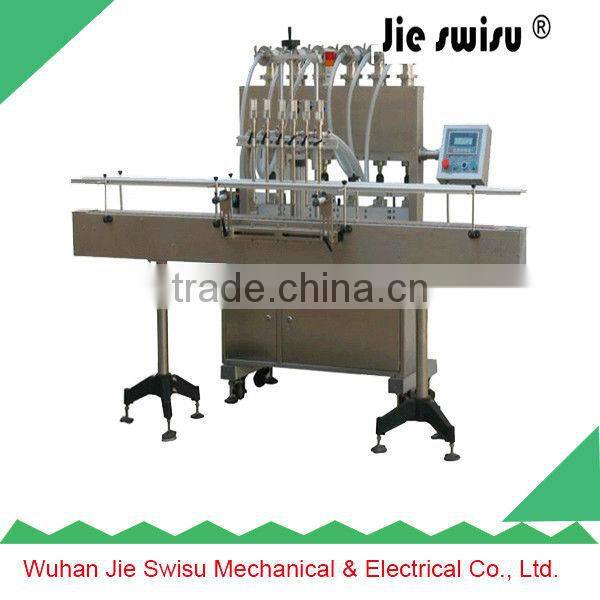

6 heads juice .oil,liquid filling machine:

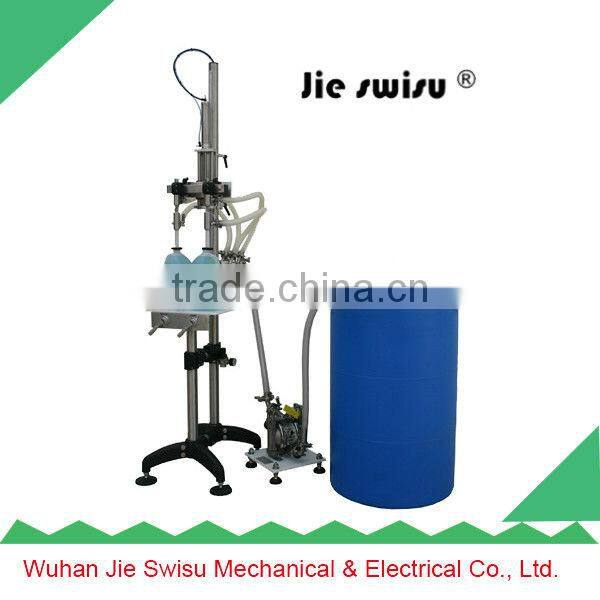

Small Semi-automatical type:
Our machine widely used for :
Welcome friends from all over the world :
Come on,dear friends,Contact us!
