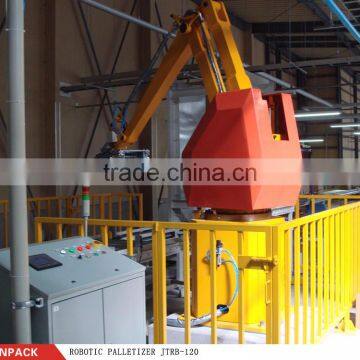

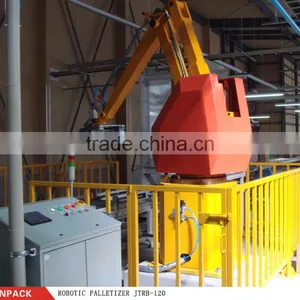

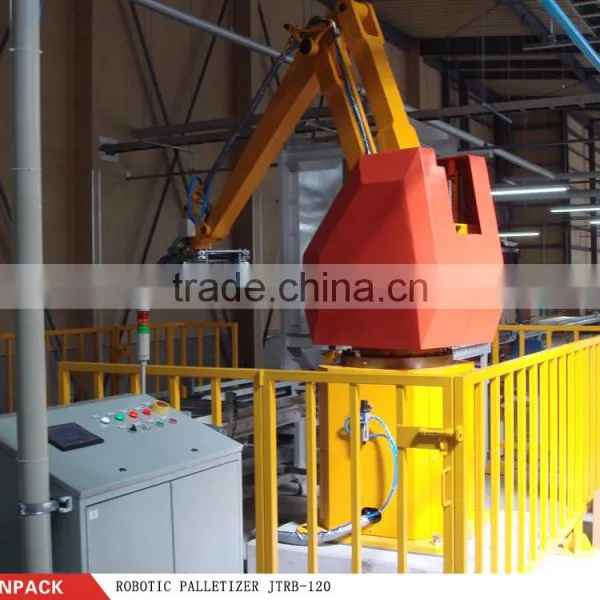

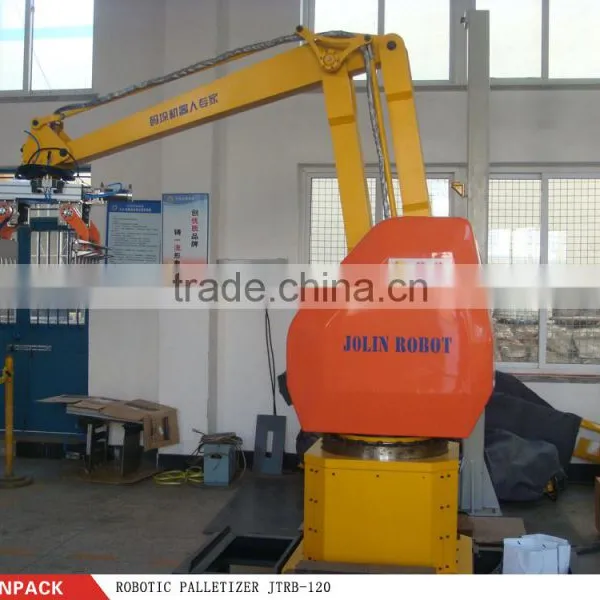

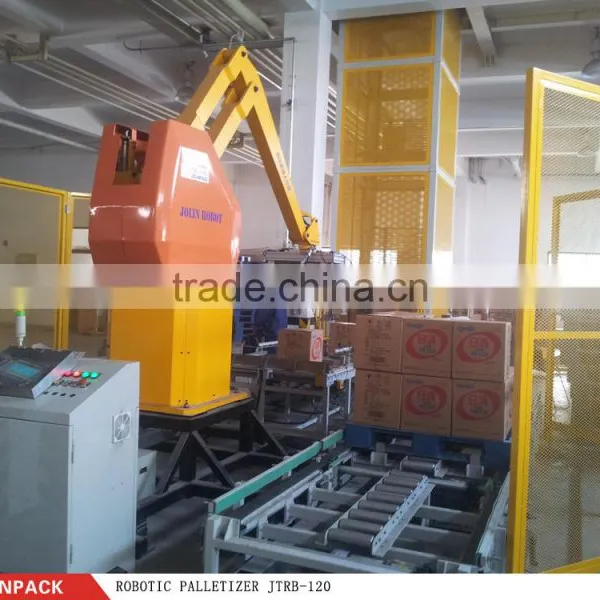

Help CenterJTRB-120 Automatic ROBOTIC PALLETIZER
Related Products
-
Robotic PalletizerUS$ 1 - 999MOQ: 1 Set -
Advanced Robot Palletizer With Conveyor SystemUS$ 1 - 999MOQ: 1 Set
-
Bottles Mechanical Palletizer Robotic Palletizing MachineUS$ 1 - 999MOQ: 1 Set
-
Automatic Robotic Palletizer for Large BagsUS$ 1 - 999MOQ: 1 Set
-
Robot Palletizer for Carton BoxUS$ 1 - 999MOQ: 1 Set
Palletizing robot is a kind of packaging, transportation and orderly placed industrial robots of various shapes cartons, bags, cans, beer boxes, bottles and other product, is widely used for food, fertilizer, hardware, beverage, electronics, steel and other industries.
Machine Model |
JTRB-120 |
||
power supply |
380V 50/60Hz 5.8KW |
||
suitable pallet size |
L1200*W1200 |
||
PALLETIZE WEIGHT |
120KG |
||
action weight |
4 axis |
||
capacity |
1600 C/hr |
||
Gripping device |
clamp plate,finger,sucking plate and others |
||
Tape width |
48,60,75mm(choose one type) |
||
Machine net weight |
Approx.850kg |
||
1.Simple structure, less components. Therefore, the failure rate of the components, the performance is reliable, the maintenance is simple, the need to spare parts and components.
2.It covers an area of less. Is conducive to the layout of the production line in the customer plant, and can set aside a large warehouse area. Palletizing robot can be installed in a narrow space, can be effectively used.
3.Applicability is strong. When the size of the customer products, size, shape and size of the tray to change the size of the only need to do a little change on the touch screen, will not affect the normal production of customers. The stacking machine mechanical changes quite troublesome or even can not be achieved.
4.The low energy consumption. Stacking machine mechanical power is usually at about 26KW, and the power of the palletizing robot is about 5KW. Greatly reduce the customer's operating costs.
5.All control operation can be in control cabinet on the screen, the operation is very simple.
6.The only catch the starting point and put the point positioning, the teaching method is simple and easy to understand.
