Automatic Soy Sauce Bottled Screw Cap Filling Capping Machine for Wholesales

Automatic Soy Sauce Bottled Screw Cap Filling Capping Machine for Wholesales photo-1
Automatic Soy Sauce Bottled Screw Cap Filling Capping Machine for Wholesales photo-2
Automatic Soy Sauce Bottled Screw Cap Filling Capping Machine for Wholesales photo-3
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Medical, Other, Chemical, Commodity, Food, Medical, chemical or commodity or medical
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Medical, Other, Chemical, Commodity, Food, Medical, chemical or commodity or medical
Packaging Type Bottles
Packaging Material Other, plastic or glass or metal
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power can be customized
Place of Origin Shanghai, China
Brand Name Shouda
Model Number SD-YGJ
Dimension(L*W*H) 1800*1000*1500mm
Weight 350kg
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
 Automatic soy sauce  bottled screw cap filling capping machine for wholesales

This machine adopts cylinder transmission, enduring the stability of the equipment, accuracy. All the action of filling, entering, filling, outing and etc can use the search unit tail automatically, besides the detect, control, have no bottle and filling action. If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.



 Automatic soy sauce bottled screw cap filling capping machine for wholesales

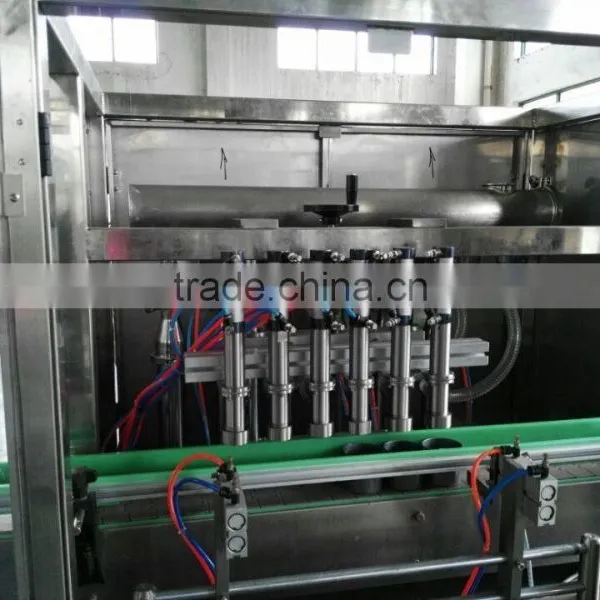

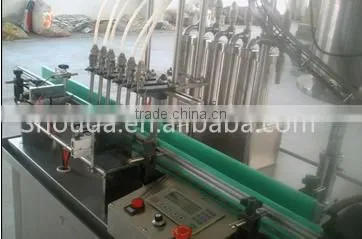

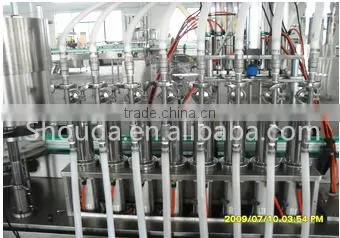

Filling part:

Mainly parts: (1) machine shelf, (2) filling heads, (3) measuring bump group, (4) conveyer belt, (5) electric motor, (6) filling heads disappearing and bumper, (7) cut off bottle machine, (8) nylon convey liquid tube, (9) opto-electrical search unit, (10) valve, and etc.



 Automatic soy sauce bottled screw cap filling capping machine for wholesalesAutomatic soy sauce bottled screw cap filling capping machine for wholesales

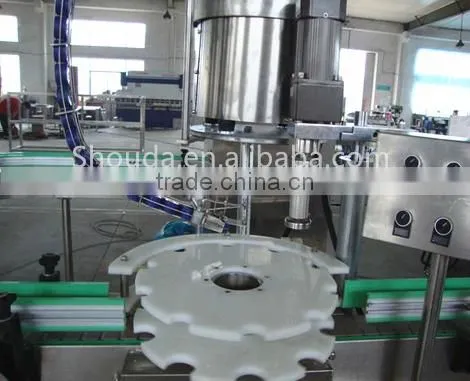

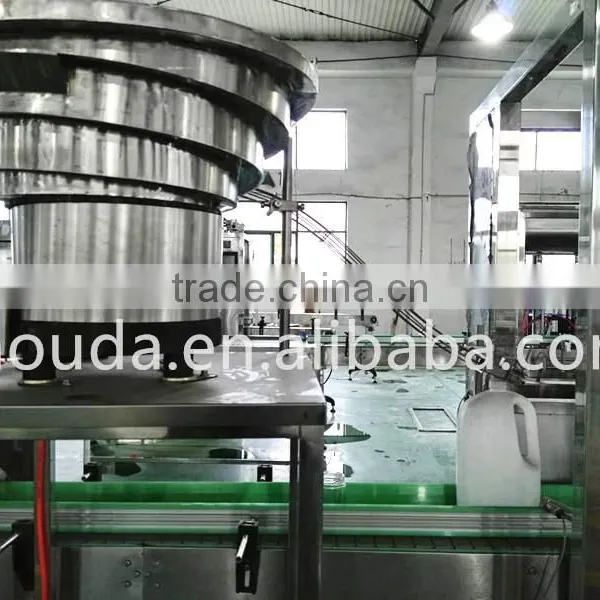

Capping part:



   it adopts eletromagentic shake the hopper, the cap shakes in the hopper, then fallen to the given trial,when the bottle passes this equipment, the mouth of bottle take

away the cap, there is a fixed equipment at the bottom of the bottle, locking the bottle, so it can endure the bottle not to

turn over or overflow, so can endure the efficiency of capping, then it quickly cover spinning in the function of cam, because the cover spinning head is special used for the cap, it can prevent  the cap damage if cover too tightly, the capping head is magnetic moment, and it will skid automatically when the cap is tighened, so no single cap will be damaged, and it can last for very long time without changing anything.

Automatic soy sauce bottled screw cap filling capping machine for wholesales



Summary:



This machine consist of: (1) machine shelf, (2) astrolable, (3) capping head, (4) conveyer belt, (5) Shake hopper, (6) electric motor, (7) electric machine control box, (8) convey cap trail, (9) capping risen and down part.



(You Can also choose the labeling machine, printer, packing platform)

Main counting parameter:





program

SD-GZJ 2-1

SD-GZJ 4-1

SD-GZJ 6-2

Filling head

2

4

6

Capping head

1

1

2

Filling volume

100ml-500ml; 200ml-1000ml; 500ml-2500ml

Filling speed

1000 b/h

2000b/h

3000 b/h

Filling precision

≤±1.0%

Power supply

380V/220 50-60HZ

Power

≤1.6kw

≤2.0kw

≤2.8kw

Air pressure

0.6-0.8Mpa

Net weight

350kg

450kg

550kg

Dimension(mm)

1800*1000*1500mm

1800*1000*1500mm

1800*1000*1500mm
