China Manufactureer Full Automatic Weighing Filling Capping Machine

China Manufactureer Full Automatic Weighing Filling Capping Machine photo-1
China Manufactureer Full Automatic Weighing Filling Capping Machine photo-2
US$ 16,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity
Packaging Type:
Barrel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity
Packaging Type Barrel
Packaging Material Metal, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V/50HZ
Power 1.5kw
Place of Origin Shanghai, China
Brand Name Shouda
Model Number SD-6W
Dimension(L*W*H) 2200X1500X1700MM
Weight 950kg
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

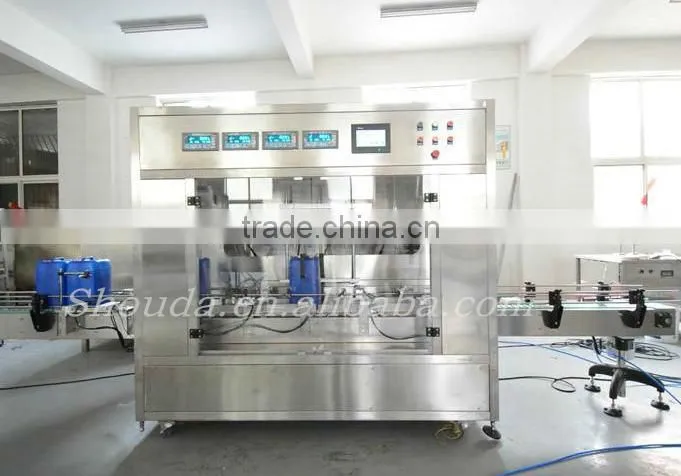

China  Manufacture Full automatic weighing filling capping machine



Introduction:

 This filling machine adopts the PLC and the weighing feedback system that makes a higher filling precision. All operations complete on the touching screen. It is reliable, stable, widely used for 20L oil filling.



Performance advantages

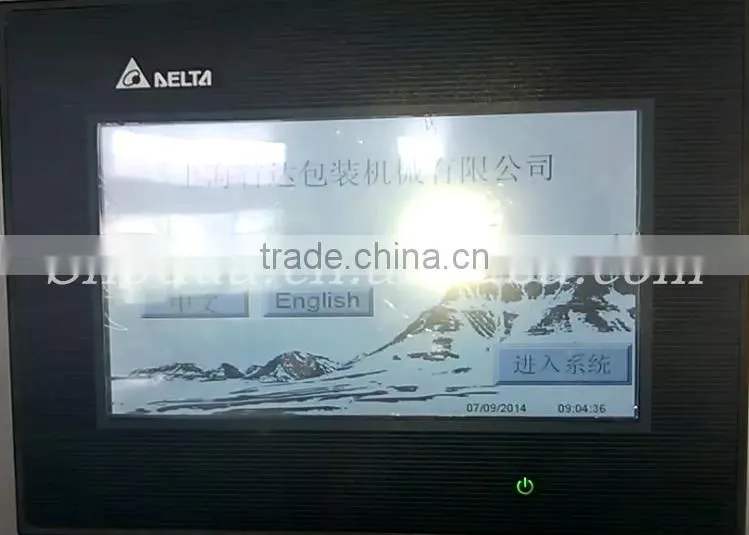

1. Control system--- Delta PLC, olorful touching screen, visible, easy to operate, weighing results displays on the screen, too.

2.Real-time alarm---automatic stopping and alarming when the system appears serious breakdown.

3.    Machine elements---the parts touching the material using the high-quality sus 316 and non-poisonous, anti-corrosive PTEF hose. Others use the sus 304

4.    Expansion function----- We can carry out special configuration according to the customers’ requirements.(material airtight, heating and sterilizing etc.)

5. Filling precision is ± 0.03%, more accurate than the original ± 1%.





China Manufactureer Full automatic weighing filling capping machine



Main technical parameters

1.      Filling head:  6 heads(2,4,8 customized)

2.      Application:  4-32L

3.      Power:380V, 50HZ

4.      Bottle size: 5L

5.      Filling precision: ±0. 1%

        Filling Speed: 1,200 bottles per hour for 5L oil

7.     Machine weight: 950kg

8.    Overall Dimension: 2000*1500*1700mm.

9.      Air source requirements: 0.6-0.8mpa



China Manufactureer Full automatic weighing filling capping machineChina Manufactureer Full automatic weighing filling capping machine

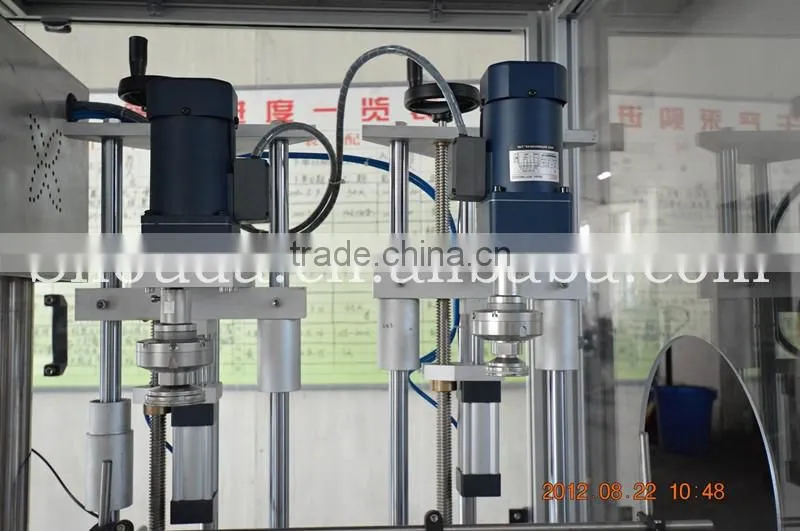

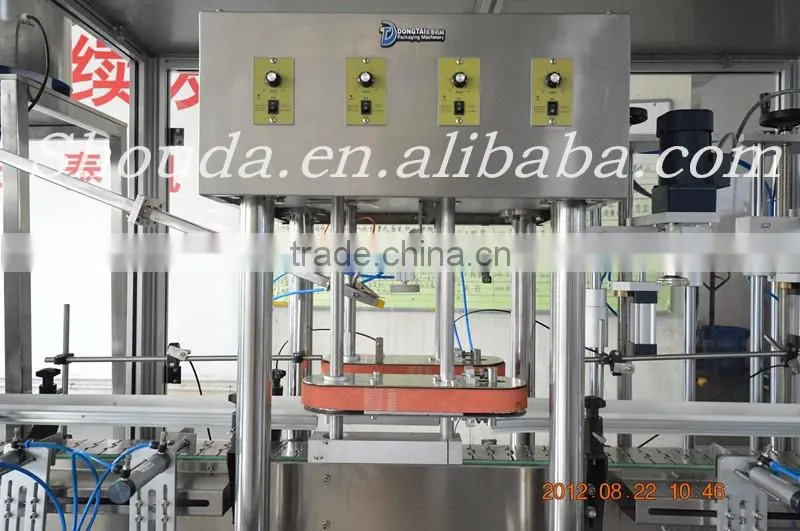

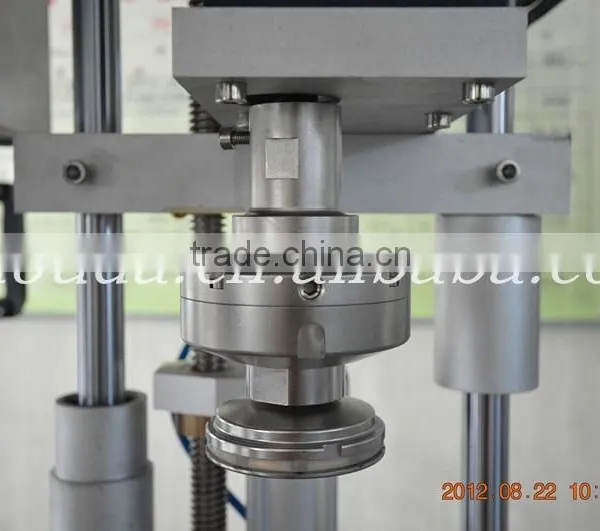

Automatic capping machine



China Manufactureer Full automatic weighing filling capping machine

China Manufactureer Full automatic weighing filling capping machineChina Manufactureer Full automatic weighing filling capping machineChina Manufactureer Full automatic weighing filling capping machine

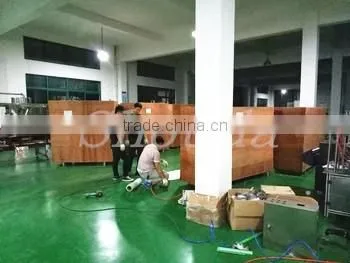

Packaging & Shipping

 China Manufactureer Full automatic weighing filling capping machineChina Manufactureer Full automatic weighing filling capping machine

China Manufactureer Full automatic weighing filling capping machine
