General description

The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catch es bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet

Bottle inlet structure

Adopt air conveyor system with high efficient filter to feed bottle, this can keep the inside of the filling machine clean

With bottle neck holding in the whole course and protect bottle block device.

Rinsing Part

The Transition Star wheel

The hold bottleneck poking wheel is made of high-quality stainless steel. We can meet the demand of adapt different bottle height by changing the bottle change parts; when the change of bottle is not big, do not need adjust.

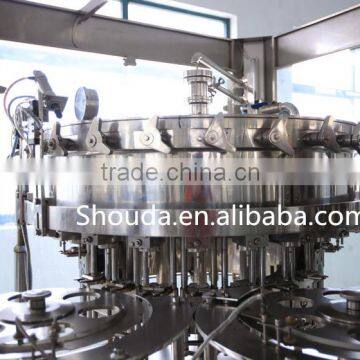

Filling Part

Capping Part

This unit is the highest degree of accuracy of 3-in-1 machine, it is important for the machine to run stably and the product quality.
