Olive Oil Plastic Jar Filling Machine

Olive Oil Plastic Jar Filling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food
Packaging Type:
Other, jar
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food
Packaging Type Other, jar
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220v
Power 2.2kw
Place of Origin Shanghai, China
Brand Name Shouda
Model Number SD-GZJ
Dimension(L*W*H) 2200*1200*1600
Weight 450kg
Certification CE ISO BV
After-sales Service Provided Engineers available to service machinery overseas

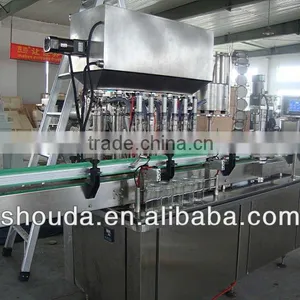

Olive oil plastic jar filling machine

Olive oil plastic jar filling machine



  Olive oil plastic jar filling machine



Name:   Olive oil plastic jar filling machine



Features:

(1) Adopts piston pump to fill, suitable for all kinds of liquid, high precision; The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.

(2) The piston ring of volumetric injection pump use different material of silicone, polyclonal or other kinds according to liquid characteristic, use ceramic pump in special industry.

(3) PLC control system, frequency conversion adjusting speed, high degree automation.

(4) No bottle, no filling, auto count the quantity. And have the anti-drop device.

(5) Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.

(6) Filling head is equipped with anti-dropping equipment.

(7) Filling head adopts rotary valve piston pump to anti-dropping.

(8) The tank adopts double-deck and keep warming structure.

(9) The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.

(10) The whole machine meets GMP requirement



Parameters:

 Name

Olive oil plastic jar filling machine



Filling head

 4.6.8 etc(optional)



Filling volume

50-300ml, 200-1000ml etc(customized)

Filling speed

2000-3000bph(based on 6 nozzles)

Filling precision

≤±1%

Power supply

380V 50/60HZ



Power supply

≤1.5kw

Air pressure

0.6-0.8MPa



Net weight

800kg

dimension

(mm)

1650*850*1800





If u are interested in the machine pls feel free to contact me I will send u more

detail information with video .and welcome to visit our factory .^=^
