Specifications
extruded polystyrene1.Board thickness:20-100mm
2.Board width:600-1200mm
3.Capacity:300-360kg/h
4.Power:380kw
2014 extruded polystyrene
XPS Foam Board Extrusion Line designed with a state-of-the-art technology accumulated through a continous R&D is for the production of homogeneous, closed-cell-structured, extruded polystyrene foam boards, an economical, optimal acoustic and thermal insulation materials, from Polystyrene and some additives using a blowing gas by the process of continuous extrusion thus forming a board of the desired thickness.

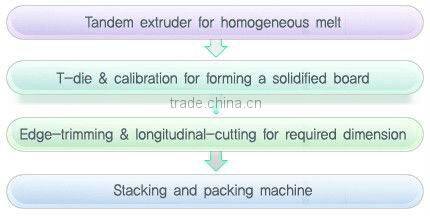

Production Procedure
Feature
1. High and lasting thermal insulating property; Energy saving solution
2. Minimal water & humidity absorbance
3. High mechanical resistance
4. Very high compression strength
5. Absolute dimensional stability
6. Self extinguishing properties
7. Homogeneous density of the mass
8. Immune to the attack of acids and bases
9. Inertia climatic at variation
10. Lightness

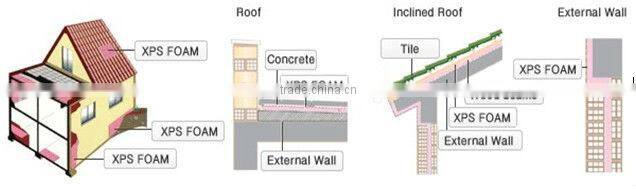

11. Excellent compatibility with building materials like cement, gypsum, lime and sand and superb adherence on concrete and mortar coatings via treatment of skinning and grooving boards
12. Easy to transport, cut and apply
13. Attractive appearance
14. Most of all, all these properties remain constant over the time
15. Easy Installation
Technical Parameters
Model |
DYXPS-135/150 |
DYXPS-150/170 |
DYXPS-170/200 |
|
Screw Diameter (mm) |
¢135/150
|
¢ 150/170
|
¢ 170/200
|
|
Heating Power (kw) |
50 52 |
58 68 |
78 100 |
|
Driving Motor Power (kw) |
75 90 |
90 110 |
110 132 |
|
Thickness of Board (mm) |
20-80 |
20-100 |
40-120 |
|
Width of Board (mm) |
600,900 |
600,900,1200 |
600,900,1200 |
|
Length of Board (mm) |
1200,1250,2450,2500 |
1200,1250,2450,2500 |
1200,1250,2450,2500 |
|
Output (kg/h) |
280-320 |
300-360 |
380-500 |
|
Mounted Power (kw) |
300 |
380 |
400 |
|
Overall Size (m) |
35×10×4 |
38×10×4 |
40×10×4 |
|
Total Weight (T) |
28 |
30 |
33 |
|
Available edge finish |
Square edge |
|
||
Ship lap |
|
|||
Tongue and Groove |
|
|||
Outstanding Insulation
