Specifications
Pe laminating machinea.sheet width:1500mm
b.no limit about thickness
c.driving power:2.2kw
d.CE
CE APPROVED Pe laminating machine
What is the features of our CE APPROVED Pe laminating machine ?
1.Damping,Resist static electricity,Dust-proof
2.packaging material:electronic equipment,pottery,glass products,furniture
3.insulation material:Agriculture,building
What is description of our CE APPROVED Pe laminating machine ?
PE foam sheet extruder producing fine closed cell Polyethylene foam sheet, by our unique designed
Screw and Barrel system, using Butane foaming agent, Talc powder or Talc master batch and
Anti-shrinking agent (GMS for short-Surface Active Agent) by accumulated experience and advanced technology.
1.PE foam and related products are made from PE resin and it is expanded and formed into
shapes by being heated and extruded. And it is easy to be decompounded and environment friendly.
2. Its key function is cushion protecting and warmth reserving.
3. Nowadays it is the most popularly used for modern batch production products, especially export
packaging industry, including electronic industry (such as PC computer, laptop, electronic chips and
parts, inverter, TV, air conditioner, refrigerator), furniture, glassware, garments, metal parts, etc.
4. Whoever aims at modern packaging and export, he has to use PE foam for the following reasons:
Packaging with air bubble film, EPS and plastic film is forbidden in many countries. Paper packaging
is so expensive.
5. PE foam products have quite a few varieties: Sheets for direct wrapping and to make bags;
PE sheet may be coated with plastic film, craft paper
and aluminum foil. It may be laminated (by electricity or LPG flame) into thick blocks. Then cut them
to make different containers or frames. PE fruit net is direct for fruit and small matter's wrapping.
If you add special molds, you may make different profiles for door hinges and furniture packing.Specification
Type |
TYEPE-90 |
TYEPE-105 |
TYEPE-120 |
TYEPE-150 |
TYEPE-170 |
Sheet Width (mm) |
1000-1400 |
1000-1500 |
1000-2000 |
1000-2000 |
1000-2000 |
Sheet Thickness (mm) |
0.5~4.5 |
0.5~6.5 |
0.8~8.0 |
1.0~12.0 |
2.0~16.0 |
Capacity (kg/h) |
80-110 |
100-150 |
180-250 |
350-400 |
420-500 |
Screw Diameter / L/D |
90/55:1 |
105/55:1 |
120/55:1 |
150/55:1 |
170/55:1 |
Foaming Component |
Butane Gas |
||||
Foaming Rate |
20-40 |
||||

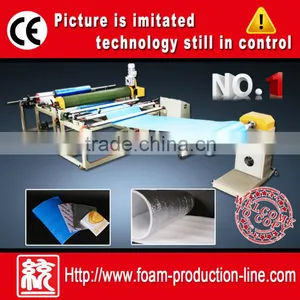

CE APPROVED Pe laminating machine product photo:
CE APPROVED Pe laminating machine Why choose us?
Steel Rack Structure
Rack material: carbon structural steel, standard steel section
Water recycling system: stainless steel connection
Talcum powder injection unit(Italy technology)
Feeding capacity: 0-1.5 kg/h
Feeding method: sprial and constantly
Driving motor : 0.25KW×2
Talcumpowder injection unit adopts Italy technology. Double screw substitute single screw,
Solve the poor mobility features of talcum powder.The motor is controlled by inverter to make talcum
powder injection accurate and stable.
Auto net changing system
Hydraulic station: 1 set
Motor power: 2.2 KW
Heating area: 3 pcs
Air ring & shaping drum unit
Air ring
Material: Aluminum
Blowing method: air blower
Shaping drum
Material: steel
Cooling method:wind cooling
Methods for cutting open: round cutter motor driven
Shaping drum size: customer product decided
Air blower: 1.5KW
Haul-off unit
Material: STPG tube hard chrome plating
Driving motor(adjustable): 1.5KW/4P×2
Material of expanding roller: stainless steel
Press roller: rubber, driven by cylinder.
Static electricity eliminator: ion fan
Length control: controlled by meter counter, could pre-set, equipped with the length alarm
Winding unit
Model: Double axis cantilever displacement type(air shaft type)
Maximum of rolling weight: Maximum 20kg×1m(diameter)
Driving motor regulative: Torque motor 16N.M×2 sets
Revolving driving motor:0.75KW×1/10 Turbine vortex stem reducer system

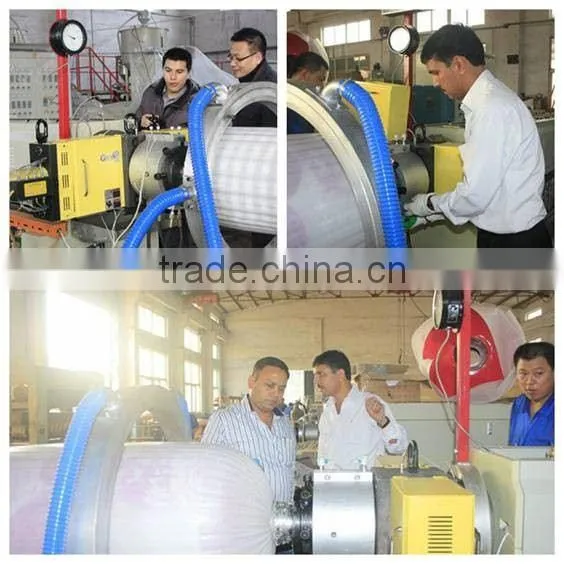

Successful orders:
CE APPROVED Pe laminating machine transport process:
CE APPROVED Pe laminating machine Packaging products:
payment process:
a.50% T/T earnest money
b.50%Remaining money,Paid before shipment
We can solve the problem for you is :
1.Our Professional engineer can help you go to your country. And adjustment the machine.
2.Our salesman will be 24 hours online for you to solve equipment problems.
3.Our machine is hight quality.
Company view and trade team:
We can provide to ensure is :
