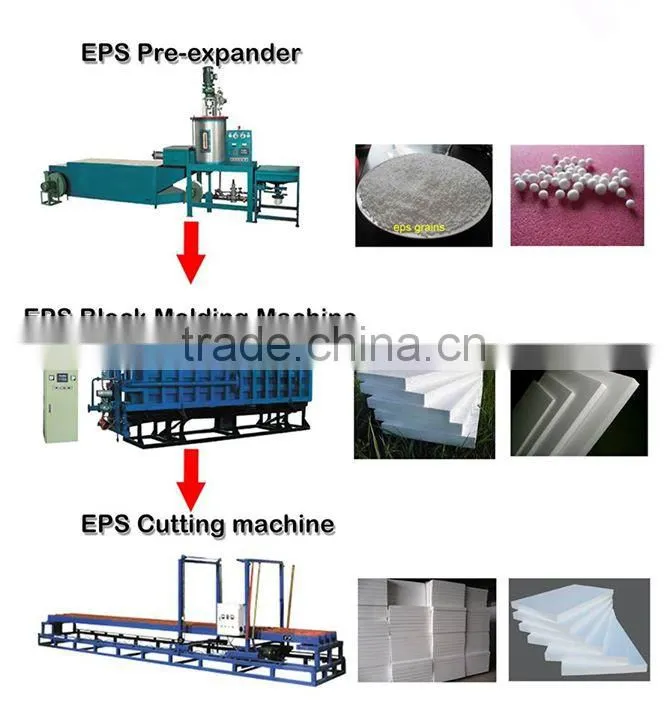

Fully Automatic eps foam block molding machine

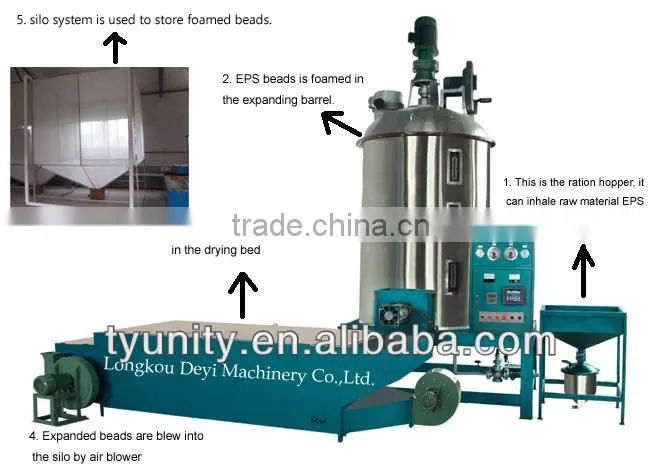

1. Expandable Polystyrene eps foam block molding machine (EPS batch pre-expander)

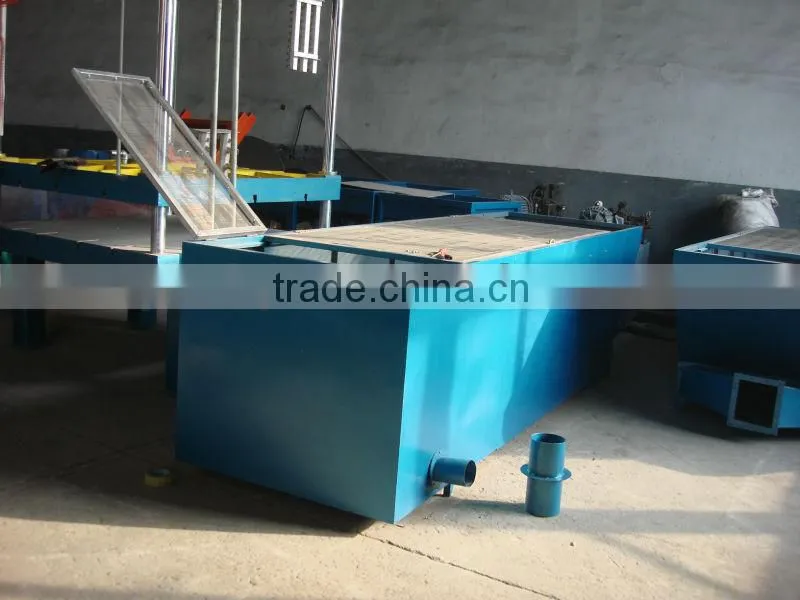

eps foam block molding machine Drying Bed

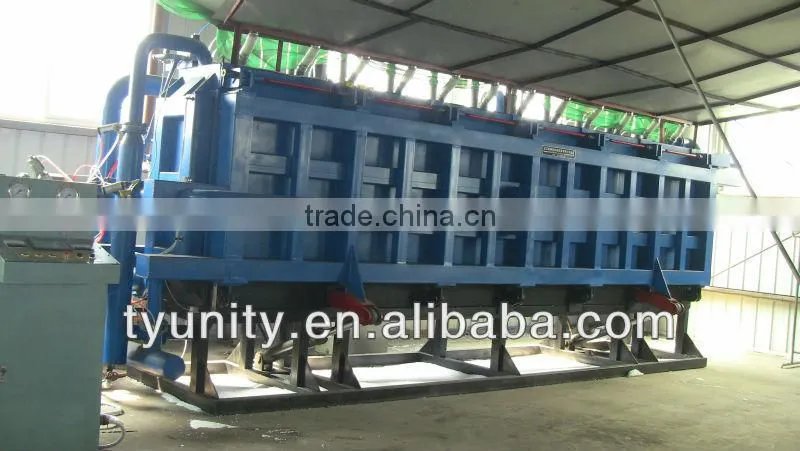

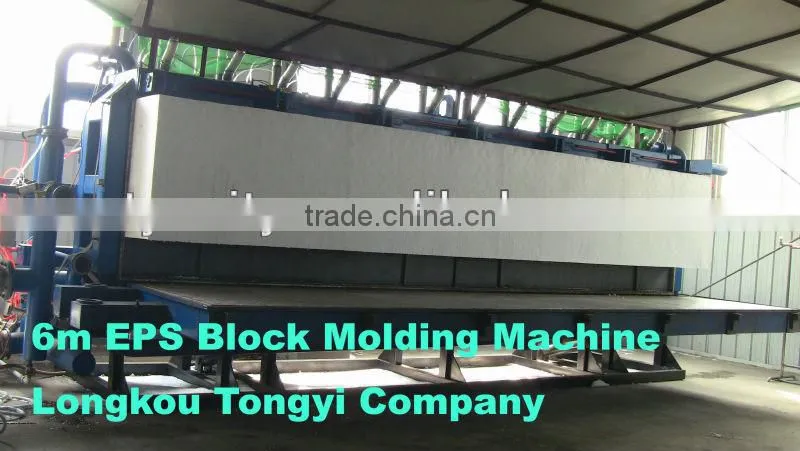

2. Expandable Polystyrene EPS Panel Production Line(EPS foam block molding machine)
A. Main features
1.It is welded by high-quality shape steel and treated in an effective way which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
2. The machine adopts PLC and touch screen for automatic mould opening ,mould closing ,material feeding ,steaming ,temperature keeping ,air cooling ,de-moulding and ejecting;
3. The surface of the mould is made of special aluminum ally which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
4.Adopting advanced moulding technique ,the machine is applicable to produce blocks of high-density and low-density and can ensure same quality of inside and outside block.
B. Technical Date:
Item |
Unit |
PSB-2000 |
PSB-3000 |
PSB-4000 |
PSB-6000 |
Mould chamber internal size |
mm |
2040x1020x530 |
3060x1250x630 |
4080x1250x630 |
6100x1250x630 |
Mould chamber volume |
M3 |
1.10 |
2.41 |
3.21 |
4. 82 |
Product density |
Kg/m3 |
4-45 |
4-45 |
4-45 |
4-45 |

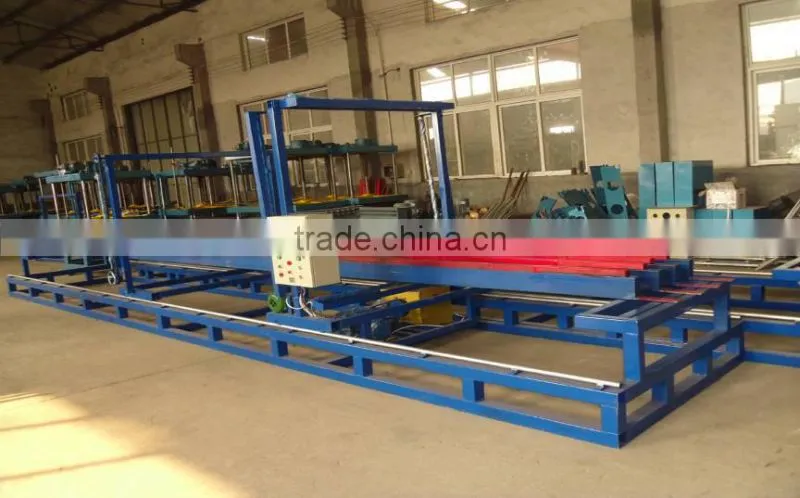

3. eps foam block molding machine (EPS Cutting Machine)
Adopts high quality rectangle steel pipe which features in reasonable structure, firm, high intension, without deformation. Equipped with horizontal, vertical and block cutting equipment. Stable movement, precise cutting size and adjustable. Realize three directions cutting.

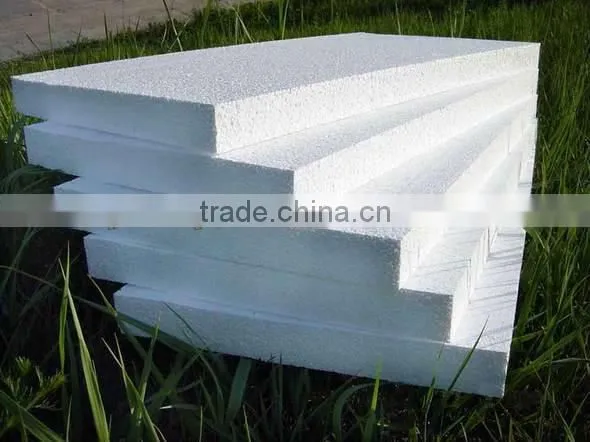

EPS foam blocks

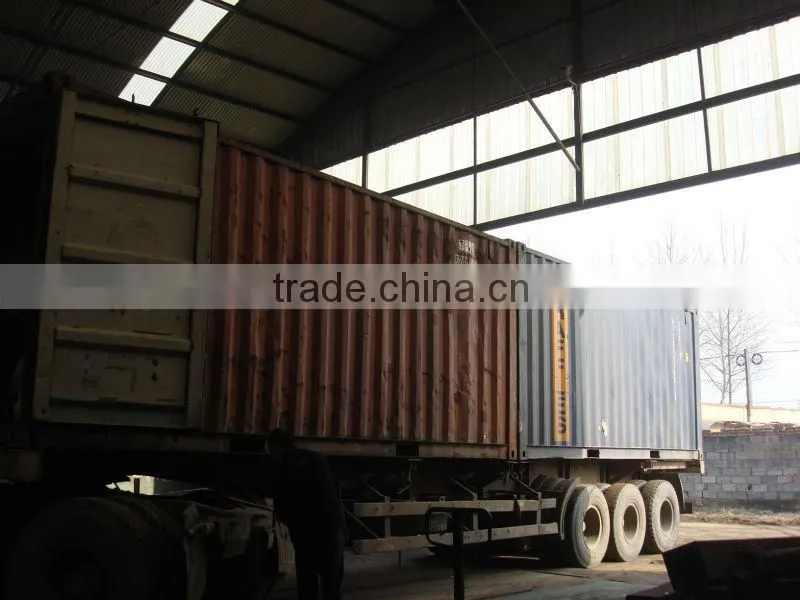

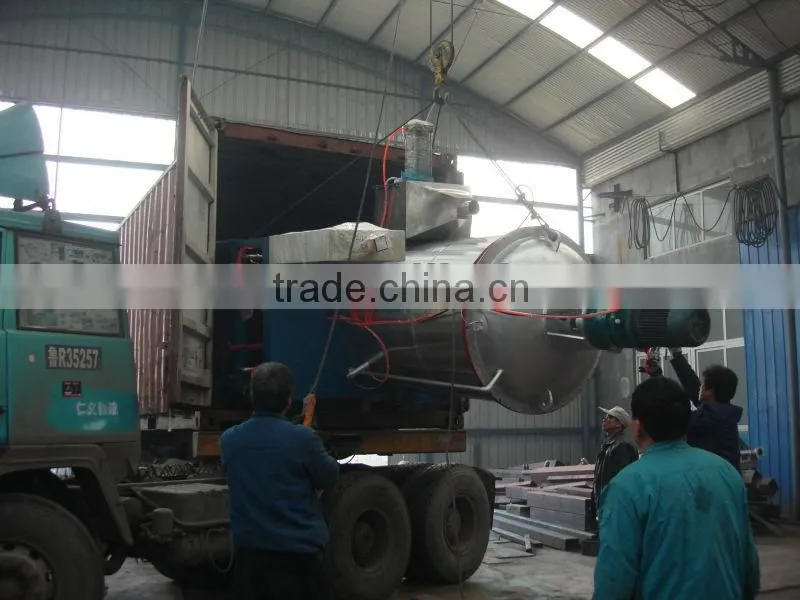

eps foam block molding machine Shipping
Dear friend, if you want to see running machine video please contact me,
I will send video to you ASAP, Best Regards.
Contactor: Peggy Pan
Skype: nancyjiang186
QQ: 1067903769
Trademanager ID: cn1501260530
Phone: 0086-15266538114
