Specifications

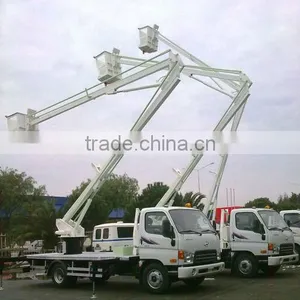

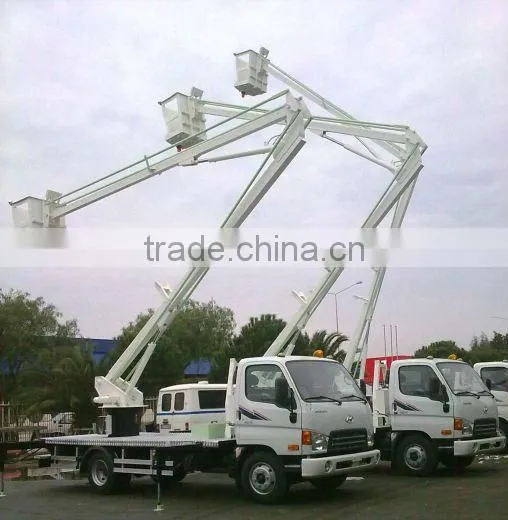

The articulated booms are fabricated of light but stiff M.S. box selection. The Structure is fitted with wide pivot bushes...Aldera Machines Telescobic Platform is a series of platforms installed on a vehicle with a GVW of minimum 3.5 tonnes (apart from the other machines which can be installed on vehicles with a GVW of minimum 6 tonnes) with double pantograph joint.
The double pantograph compared to the single pantograph offers the possibility to perform “plumb line” movements, i.e. up to the total opening of the articulated arms, up/down movements following a totally straight line can be performed using the pantograph; this saves a great deal of time especially when the platform is used to clean facades or for similar applications.
Aldera Machines Telescobic Platform differs from other products not only for its exceptional performance and equipment but also because it is the most compact series on the market, for example the Aldera Machines Telescobic Platform (20 m of height with 220 kg of capacity ) has a height when moving of only 2.4 m.
The articulated booms are fabricated of light but stiff M.S. box selection. The Structure is fitted with wide pivot bushes and pins for booms as well as hydraulic cylinders. The whole assembly is mounted on heavy duty slewing bearing.
Hydraulic cylinders are of double acting having precision honed tubes and induction hardened, deep grounded, chrome plated piston rods providing smooth operation, long steel life and resistance against corrosion.
