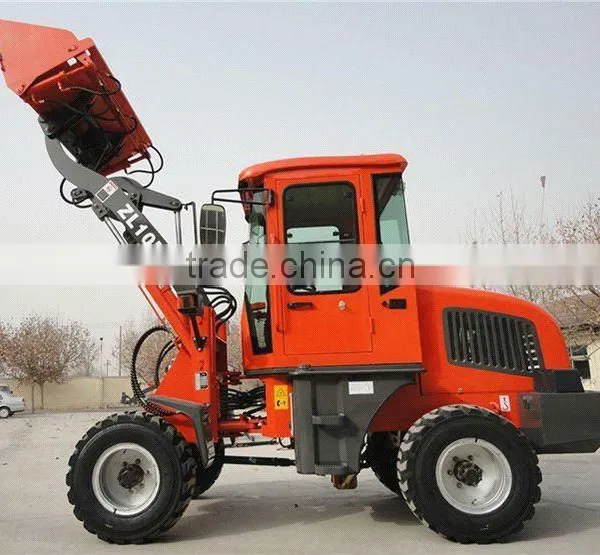

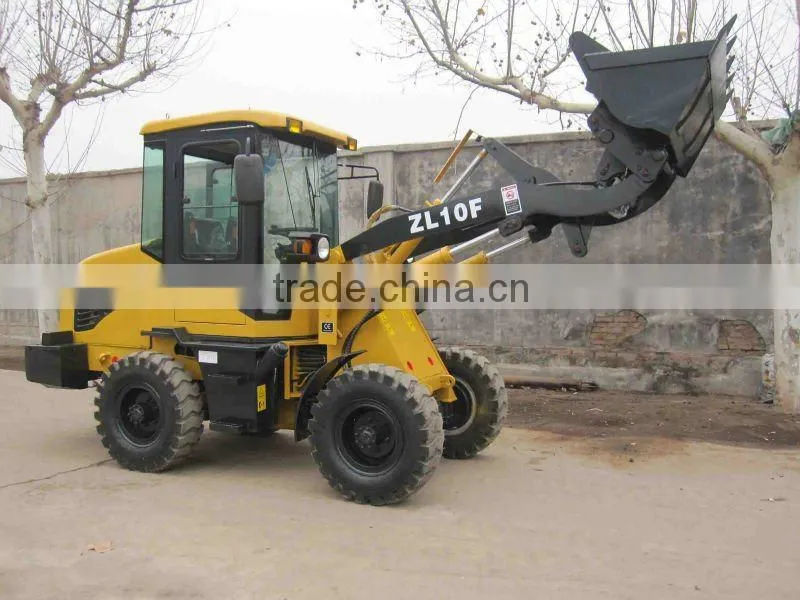

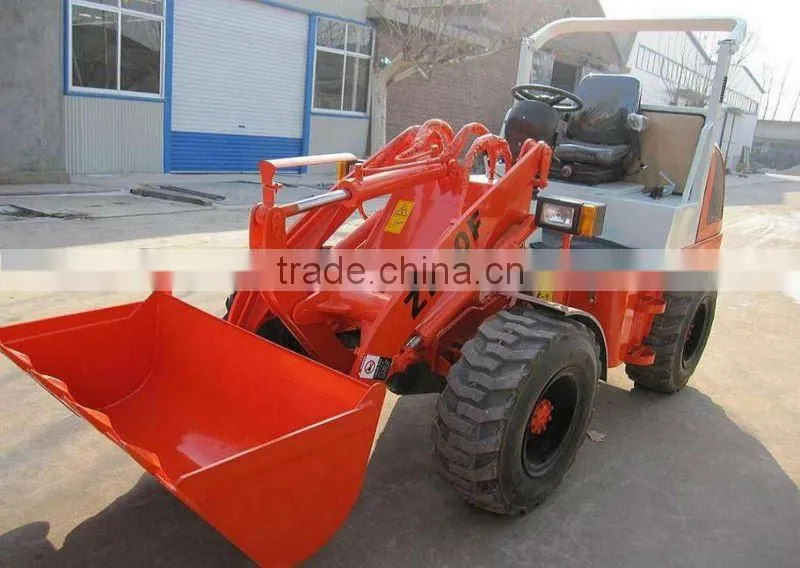

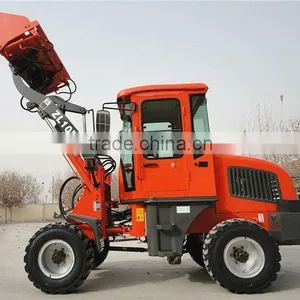

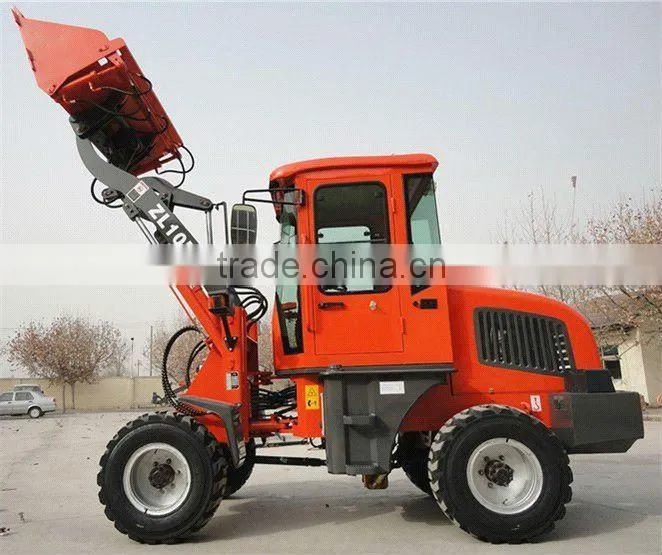

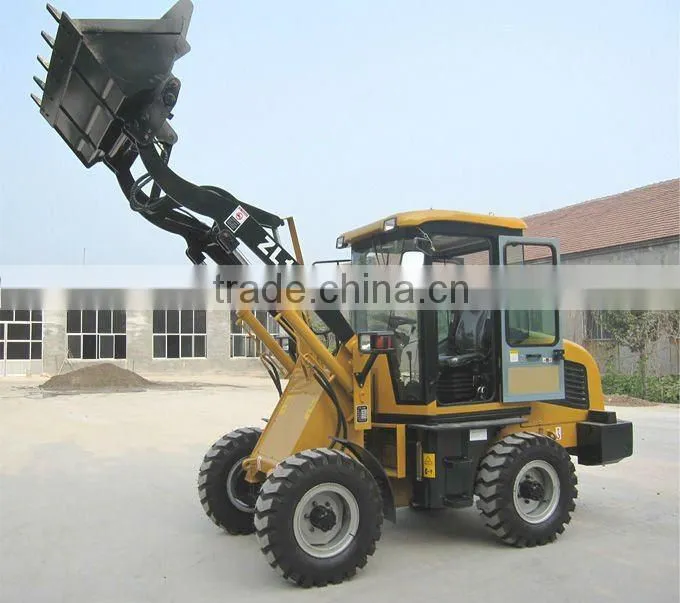

Help CenterZL10F Wheel Loader
Related Products
Specifications
wheel loaderwheel loader
1.0 Engine Details
(1) Model : Changchai 4L68/changchai490
(2) Engine type: In-line arrangement, water cooled, four-cycle diesel Engine
(3) Rated Power : 37KW/29KW
(4) Rated Speed : 2200 r/min(rpm)
(5)Rated power (KW/ps) (12hours) 37.5~50
(6)Acrotorque (N.m) 167
(7)Rotating speed at acrotorque (r/min) 1680~2240
(8)Number of cylinders (PC) 4
(9)Cylinder diameter (mm) 95
(10)Piston stroke (mm) 100
(11)Compression ratio 18: 1
(12)Fuel consumption ratio at rated condition (g/kw.h) ≤230
(13)Engine oil consumption ratio at rated condition (g/kw.h) ≤2.72
(14)Cooling mode forced water
(15)Colling
Lubricating mode force and splash compound
Initialization mode 24V motor driving
Net weight (km) 215
2.0 Steering System
Speed(Maximum traveling speed (km/h)
Advance I |
8 |
AdvanceII |
16 |
Reverse Ⅰ |
8 |
Reverse Ⅱ |
16 |
3.0 BUCKET
(1) Bucket Capacity : 0.5 m3
(2) Bucket width : 1400mm
(3) Bucket type : Heavy duty bolt on teeth
(4) Rated Load : 1000kg
(5) Operating Weight : 2500kg
4.0 OVERALL DIMENSION
(1) Overall Length ( Bucket on ground position ) : 4750mm
(2) Overall Height : 2720mm
(3) Overall Width : 1720mm
5.0 OPERATING SPECIFICATIONS
(1) Drive Means : Four-wheel drive
(2) Min Turning Radius : 3890mm
(3) Driving System : Hydraulic motor
(4) Dumping Height : 2200mm
(5) Min Base to the ground : 230mm
(6) Time of raise : 4sec.
(7) Hydraulic cycle time : 9sec.
6.0 Brake System
(1) Service Brake : Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake : Hand operated
7.0 Wheelbase : 1580mm
8.0 Track : : 1400mm
