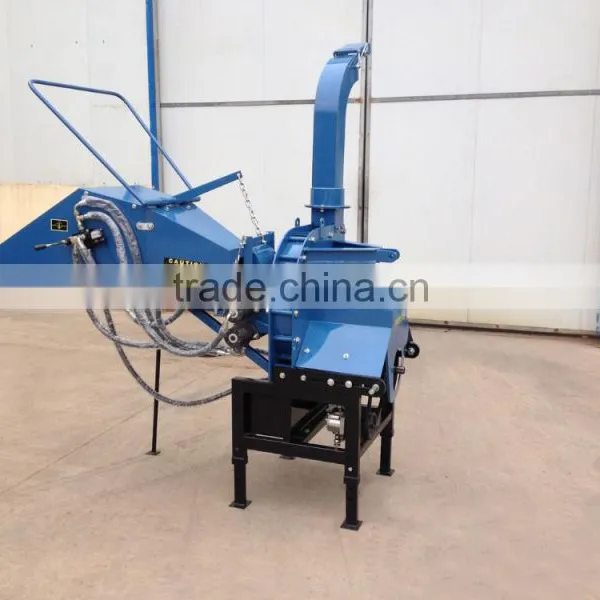

Tractor pto wood chipper CE approved
Features:
-Max. diameter wood chipping: 200mm
-Round flywheel housing, easy to change blades
-28mm thickness disc wheel, safty enough
-360 degrees discharge hood
-3 poing linkage, PTO driven
-Tractor powered PTO model,WC8H
Main specification sheet of WC-8 PTO driven wood chipper for tractor with CE certification
MODEL: WC-8H
Brief descripetion: Max.chipping dia.200mm(8''),PTO driven,3 pointed hitched wood chipper for 25-55hp tractor
Overall dimensions: 2000X1220X1950
Max.Dia. of Feeding: 200mm
Cutting Disk Dia.: 600mm
Cuting Disk Thickness: 25mm
Feeding Opening (outside): 620(W)X500(H)mm
Feeding opening (inner): 200(H)X185(W)mm
V-belt B1168X4PCS, B1120X1PC, Sanlux Brand
Tractor Power: Tractor 25-55hp,540/720rpm
Diameter of chipper disk: 600mm
Turning speed of chipper disk: 1080rpm/1440rpm
Feeding System: Hydraulic Feeding, Adjustable Speed, Stop-Reverse-Forward Function, dual feeding rolls
Number of Blades: 2PCS
Chip Size: Thickness≤4mm
Rotation Angle of Discharge Spout: 360 degree
PTO size: 35mm, 6 teeth, rectangle
PTO Rev: 540rpm
Hydraulic pump:CBN-F304 2000rpm counter clockwise
Weight: 380kg
Working Efficiency: 7~9m3/h
Volume of hydraulic tank: 26L
Package dimension (W*D*H): 1180X900X1250mm
Packing method: Iron Crate
Delievery date:within 20 days after received the payment
