China most advenced technolgoy sesame oil extraction equipment
Why choose us?
We are the first and the biggest manufacturer in the field of rice bran oil machinery in China for 22 years.

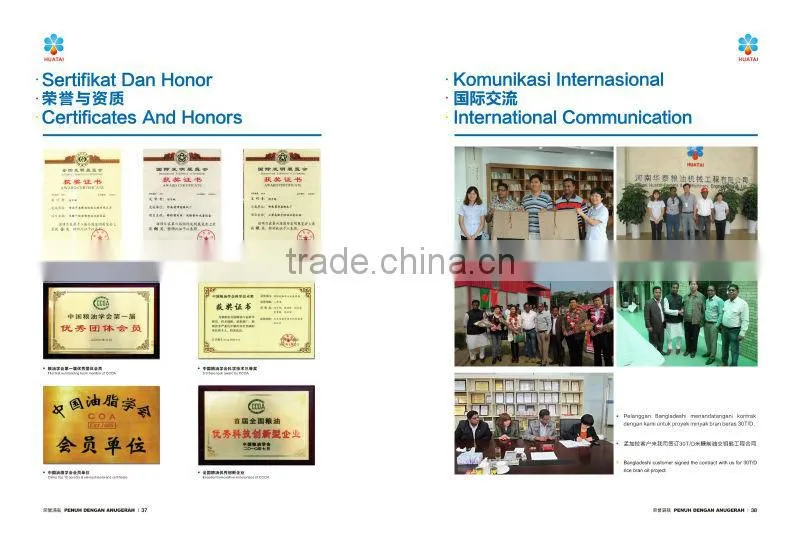

Our brands Huatai&Hangpeng won TOP 10 Cereals&Oil Machinery Brand in 2012.

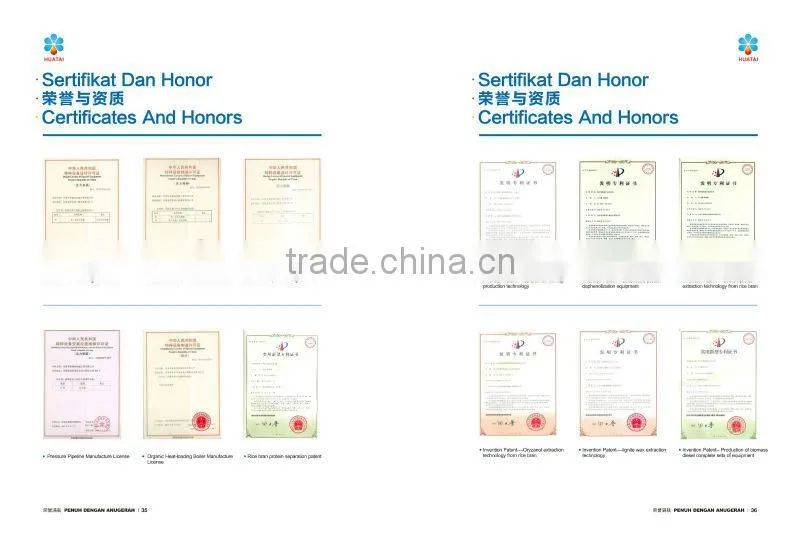

We have obtained 7 patents and 13 honors for rice bran oil equipment.
The whole sesame oil extraction equipment contains three workshops
1.Pretreatment&Expansion Workshop
Craft flow:
Crude rice bran → cleaning → softening → expanding → drying → to extraction workshop
Pretreatment and prepressing section is a very important section before extraction.It will directly affect extraction effect.
Craft features:
1.Create good production enviroment
2.Minimize the total fat loss,increase oil yield and output and improve the quality of oil and cake&meal.
3.Comprehensively utilize impurities and offal.
4.Perfectly match extraction production line,design different production processes according to different materials.
The sesame oil extraction equipment we have obtained patent for expanding,Patent No. is ZL2007 20092291.7.
2.Oil Extraction Workshop
Craft flow:
solvent steam
↓ ↓
extraction → mixed oil → evaporation→ steam-stripping → crude rice bran oil
Extractor types:
Level rotation extractor, loop type extractor, chain extractor
Extraction methods:
Use organic solvent through soaking or spraying contact methods to extract oil from oilseeds.
Advantages of extraction craft:
1.High oil yield, low residual oil in meal;2.Low labor intensity;3.Good working environment;4.Good meal quality.
Negative pressure evaporation helps to improve crude oil quality.
Craft features:
1. Adopting negative pressure evaporation can ensure excellent oil quality;
2. Extraction system is highly adaptable, and can adapt to different raw material ;
3. All equipments are provided with exhaust gas absorption systems with excellent absorption effect;
4. Full energy-saving design utilizes heat energy for many times and saves steam consumption;
3.Oil Refining Workshop of plant oil extraction equipment
Craft flow:
crude rice bran oil → degumming&dephosphorization → deacidification → drying → decolorization → deodorization →
defatting → dewaxing → finished oil.
Refining methods:
oil refining is according to the different usage and requirements, utilizing the physical methods and chemical processes
to get rid of the harmful impurities and needless substance in the crude oil, getting standard oil.
Advantages of refining craft:
1. After refining the impurity of oil must be less than 0.2% ;
2.Recycling system save power and money; 3.Lower oil waste.
Technicals of sesame oil extraction equipment
Moisture of extraction material |
5-8% |
temperature of extraction material |
50-55°C |
oil content of extraction material |
50-55°C |
oil content of extraction material |
14-18% |
thickness of extraction cake |
less than 13mm |
powder porosity of extraction material |
less than 15% (30 mesh) |
steam |
more than 0.6Mpa |
solvent |
national standard No. 6 solvent oil |
electric power |
50HZ 3*380V±10% |
Electric lighting |
50HZ 220V ±10% |
Temperate of supplement water |
less than 25°C |
Hardness |
less than 10 |
volume of supplement water |
1-2m/t raw material |
temperature of recycle water |
less than 32°C
|

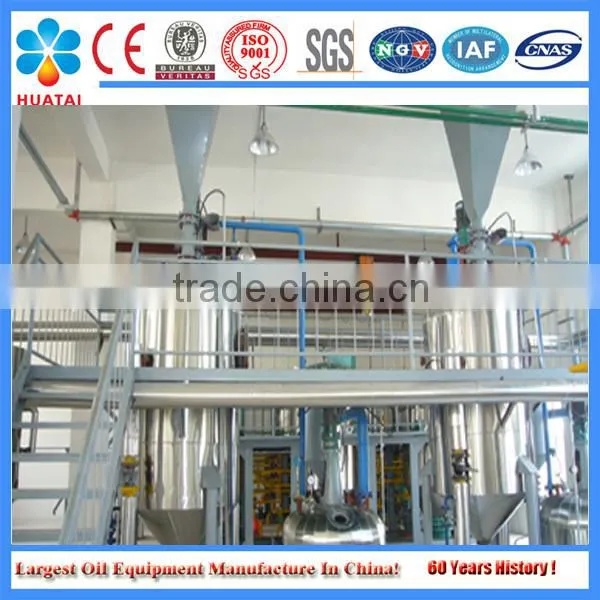

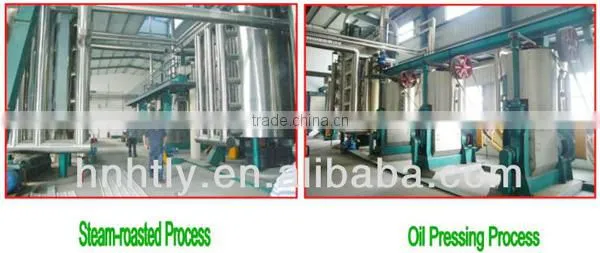

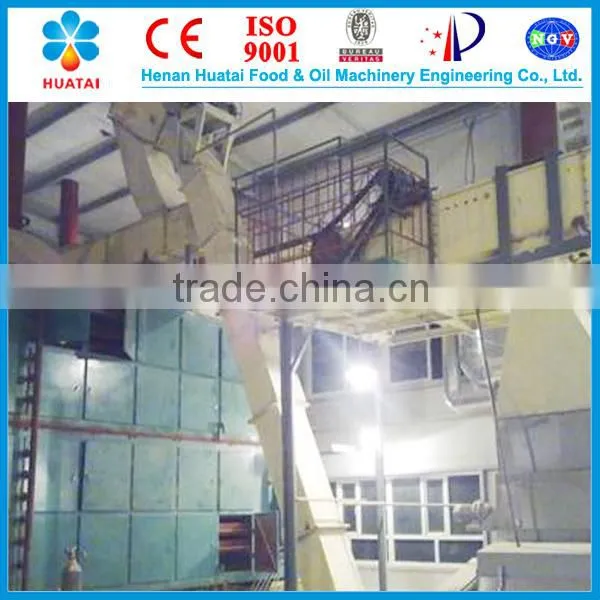

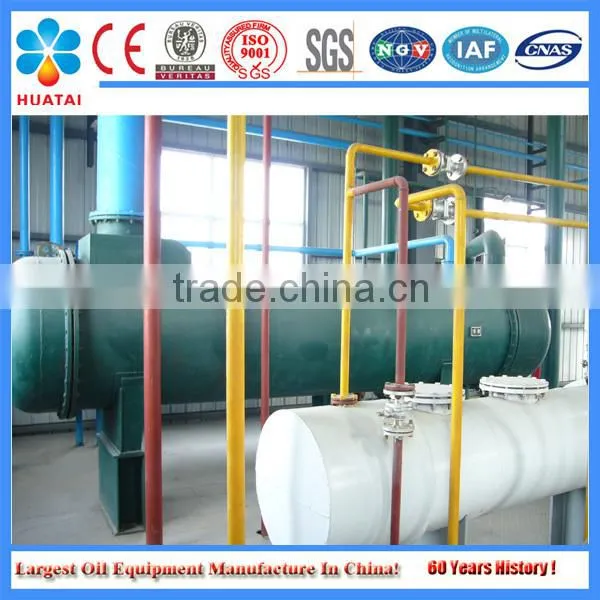

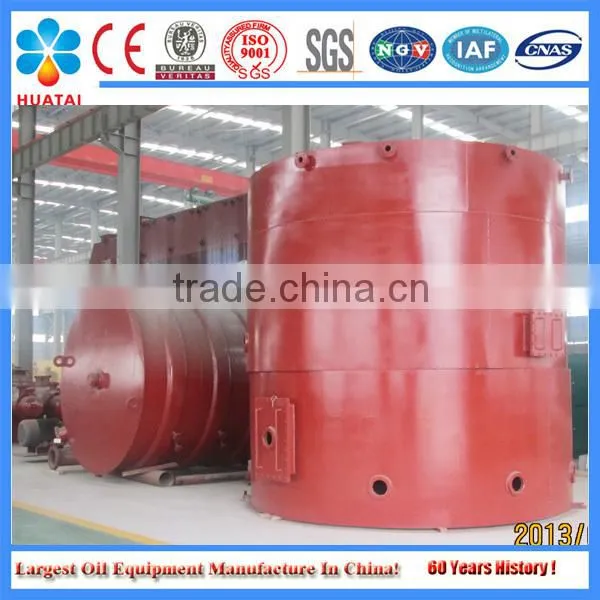

sesame oil extraction equipment pictures

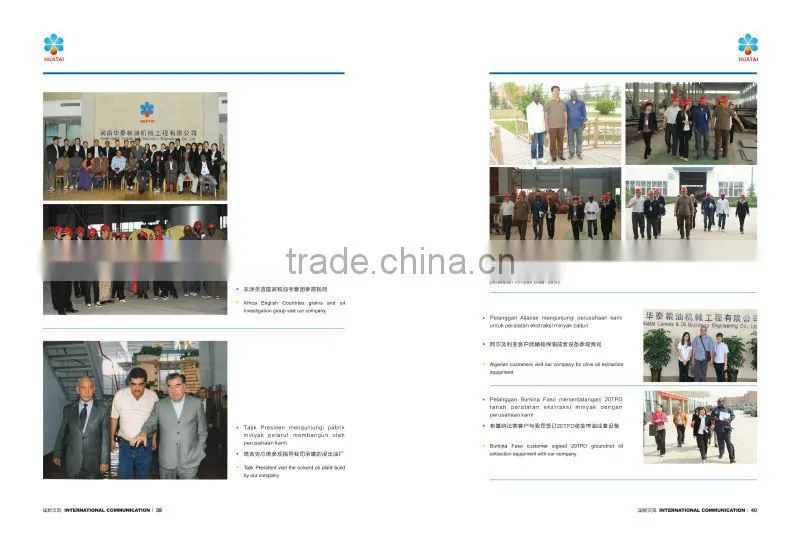

Huatai Machinery Factory Pictures
