Direct Solvent Extraction Sunflower Oil Extraction Machine
1 Direct Solvent Extraction Sunflower Oil Extraction Machine
- Processing Capacity : 10TPD To 1000TPD
- Suitable Raw Materials: Sunflower
- Bucket Elevator
- Cleaning Sieving

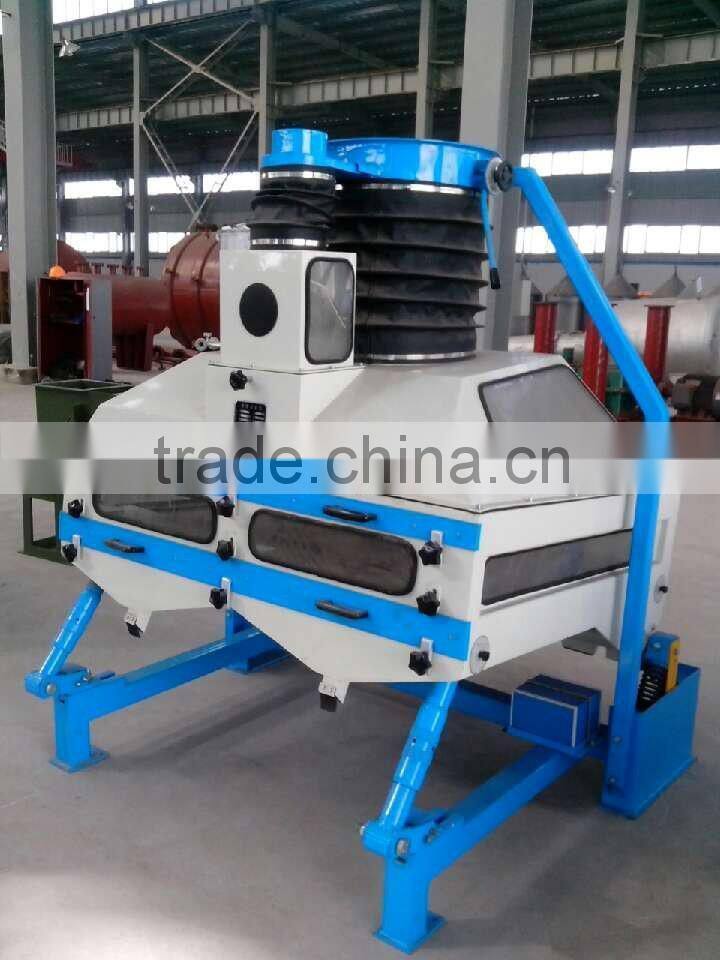

- Destoner
- magnetic separator
- dehuller ( for some oil seeds)

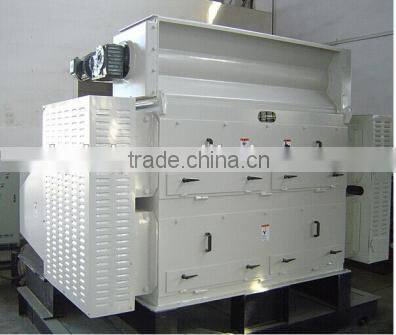

- crusher/Flaker
- cooker
- Presser ( Expeller)
| Head roll | diameter*width | 600*350mm |
| Covered with rubber material | A3 anti-friction,imported rubber | |
| Cover thickness of the rubber | 12-15mm | |
| Hardness | >=70Duro |
|
| Tail pulley | diameter*width | D600*350mm |
| Structural style | Squirrel cage | |
| Tensioning gear | Shape | Screw tensioning |
| Stroke of tension | 300mm | |
| Holdback | NYD85-D80 | |
| Tacho-generator | PNP/NO/DC24V/NI5-M12-OP6L | |
| Off track sensor | CDS 80C(optional ) | |
| Explosion venting membrane | Stainless steel(optional) | |

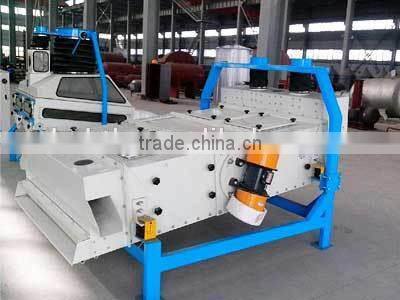

soybean Oil seeds Cleaning sieving is specifically designed for the preliminary cleaning of all types of seeds at high flow rates in preparatory section. It effectively removes all size impurities from the seeds. The seed cleaner is fitted with an Aspiration channel for the removal of finer particles like husk, chaff etc.Model Item |
YPSG25×80 |
YPSG25×100 |
YPSG25×125 |
YPSG40×100 |
capacity(t/d) |
68-80 |
100-150 |
160-200 |
280-350 |
particle size after cracking(section) |
1/4-1/8 |
1/4-1/8 |
1/4-1/8 |
1/4-1/8 |
Fines content |
4% |
4% |
4% |
4% |
Speed ratio |
1:1.51 |
1:1.51 |
1:1.51 |
1:1.51 |
Pin roll specification(diameter×length)(mm) |
Φ250×800 |
Φ250×1000 |
Φ250×1250 |
Φ400×1000 |

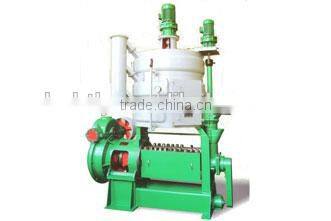

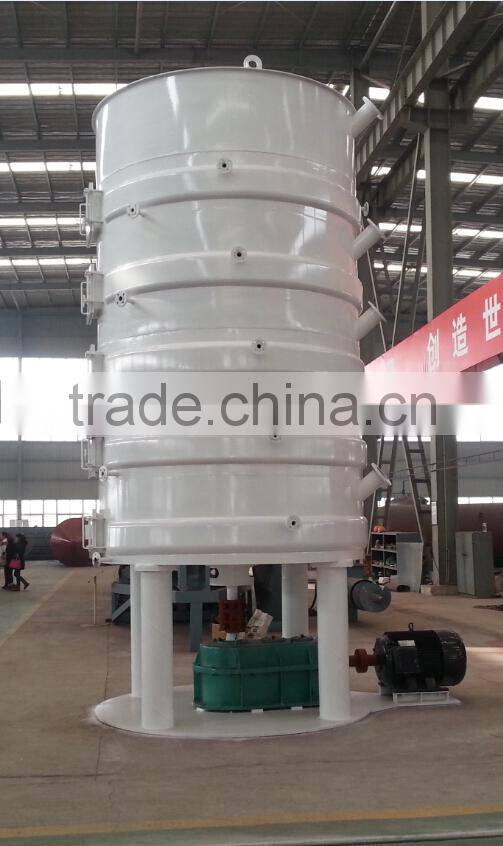

Cooker is designed for the cooking and/or conditioning of oilseeds during the preparation process before the mechanical pressing or flaking. Vertical Cookers are multi staged and big size stages are used. Besides sterilizing and decontaminate the seeds, the cooking process is to provide the cooked seeds with plasticity to reduce the oil’s viscosity and clot the proteins
Model |
Capacity(t/d) |
Power(kw) |
Heating area (m2) |
|
softening |
cooking |
|||
YZCL150×5 |
40-60 |
20-30 |
22 |
14.5 |
YZCL180×5 |
80-100 |
40-50 |
30 |
20 |
YZCL210×5 |
100-150 |
60-70 |
30 |
26.2 |
YZCL250×5 |
160-200 |
80-90 |
37 |
42 |
YZCL250×6 |
180-250 |
90-100 |
45 |
50.4 |
YZCL280×5 |
220-260 |
110-130 |
55 |
52 |
YZCL280×6 |
260-300 |
130-150 |
55 |
62 |
YZCL300×5 |
250-300 |
120-140 |
55 |
56.8 |
YZCL300×6 |
300-350 |
150-200 |
75 |
67 |
YZCL400×5 |
550-600 |
280-300 |
110 |
89.4 |
YZCL400×6 |
700-800 |
300-350 |
132 |
107 |
YZCL400×7 |
800-900 |
350-400 |
132 |
120 |

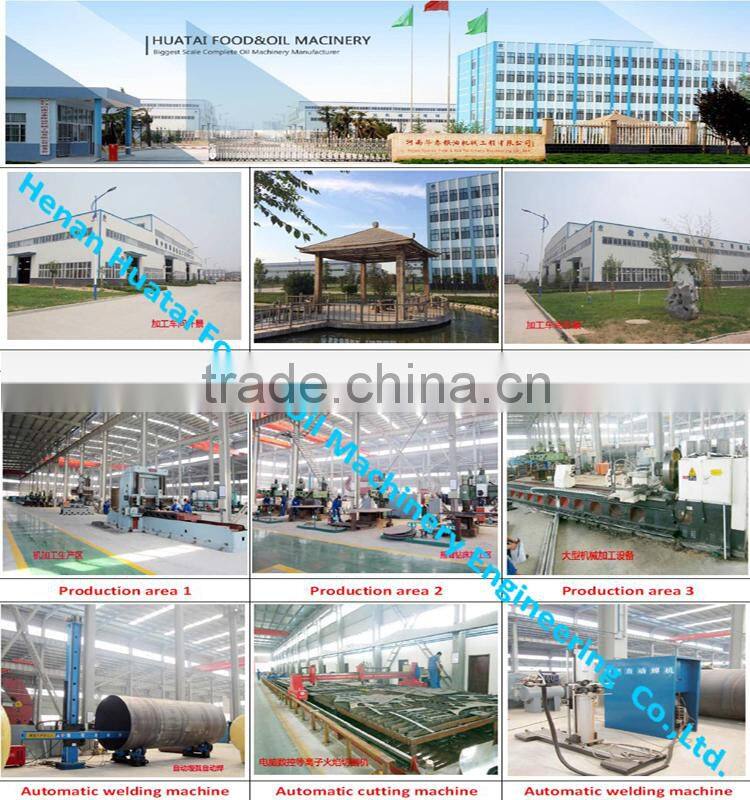

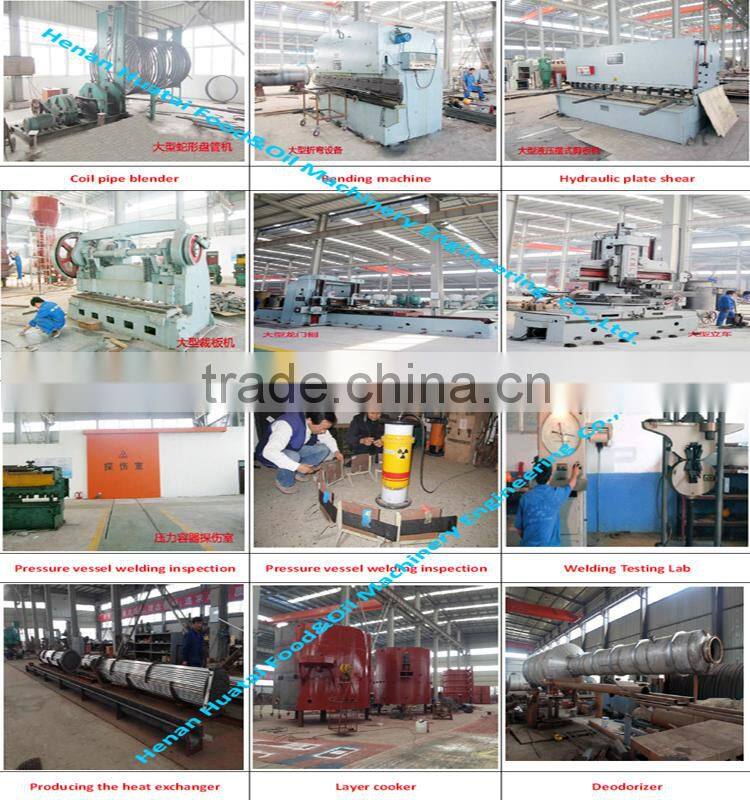

Henan Huatai Cereals And Oils Machinery Co., Ltd. (short for HHFOME) is a manufacturing enterprise specialized in producing oil and cereal processing equipments in China. HHFOME consists of Henan Huaxian Grain Machine Factory, Huaxian Hangpeng Grain Machinery Co., Ltd. and Beijing Huakang Xiwang Biological Technology Co., Ltd.. Established in 1988, HHFOME covers an area of 63,000 square meters and has 210 senior engineering technicians. Our company has 202 sets of automatic processing equipment. Processing capacity of our enterprise is more than 3000 sets every year. HHFOME has obtained independent export rights and has passed the evaluation of ISO9001:2000 Quality System Management Certification. We have got 22 national patents, 4 international awards, 2 national awards and 2 provincial awards.
Main Projects Scope:
-----30-5000T/D oilseeds pretreatment project
-----30-5000T/D oilseeds extraction project
-----10-500T/D crude oil refining project
-----10-500T/D crude oil fractionation project
-----Oil interesterification project
-----Oilseeds protein, phospholipid project
-----Natural pigment extraction project
-----Grain deep processing project
Typical Project:
----30-1000T/D rice bran pretreatment, expanding, extraction project
----30-600T/D rice bran oil refining project
----150-1000T/D cottonseed dephenolizing protein
----10-120T/H palm fruit oil pressing project
----10-500T/D Non acid method biodiesel production project
----10-2000T/D corn deep processing project
Newest Technology:
---Energy saving oil vacuum deodorization technology
---Concentrated protein extraction technology
---Mixed oil extraction technology
---Mixed oil refining technology
---Molecular distillation technology
---Broken rice desaccharification technology
