Specifications
Domestic advanced automatic control system for feed production line;Various feed machines sold separately.

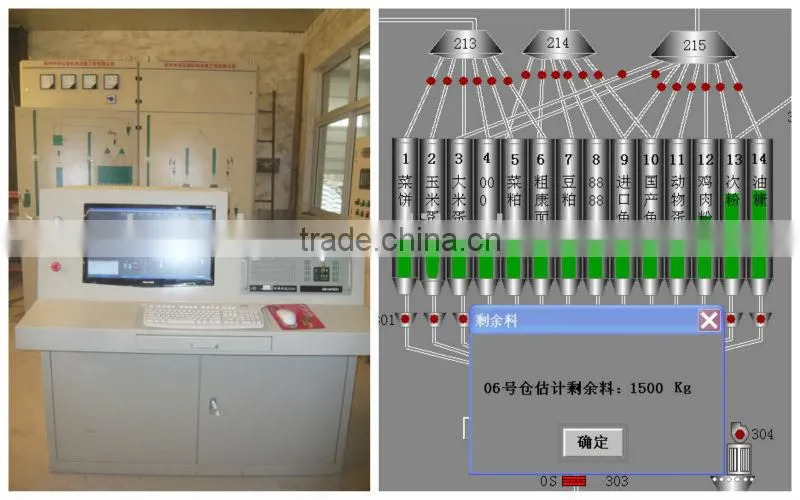

Advanced automatic control system
After more than 10 years of practice accumulation,our company developed domestic advanced automatic control system for feed production line, with the functions of the real-time monitoring system of production process, ingredients error recordrecord, store, playback, out-of-tolerance alarming. It has omnidirectional tracking for fee productive processes, and automatically adjust parameters to ensure the accuracy of feed ingredients ,that can make the feed equipment achieve the biggest effect.
Pellet mil

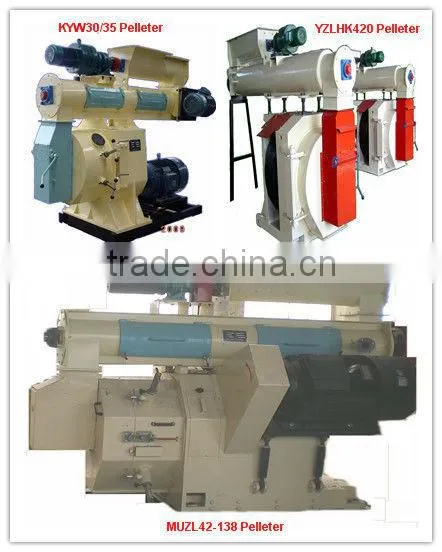

MUZL42-138 Pellet mil is a novel granular-feed press produced by our company.This machine has features of high quality ring die, press roller, advanced technology ect.,and which’s drive system adops the double motor triangle belt drive in the advantages of less ground demand,even stress, simple structure, convenient operation maintenance. This machine can also transform motor and ring mode to adapt the needs of different production capacity and specifications to obtain an ideal technical and economic benefit.
1.Component
Mainly composed by three major part: feeder,modulator and pelleter.(see Figure1)
Through adjusting and coordinating the feed rate, curing degree and production capacity, Can obtain best result of granulating.
2.Technical parameters
| Main motor power | 45(55)KWX2 |
| Feeder motor | 1.5KW |
| Modulator motor | 7.5KW |
| production capacity | 10t.p.h |
| Hollow spindle speed | 335r.p.m |
| Ring die effective size | φ420x138 |
| outline dimension LxBxH(mm) | 2386x2150x2175(mm) |
3.Structural features
(1) Ring die is adopted precision machined high chromium alloy steel forgings, and applied vacuum heat treatment process with high finish holes and long service life
(2) High strength cast iron cast the machine frame to ensure the rotation safe ,stable and reliable.
(3) The alloy structure forging main shaft, has good strength and toughness.
(4) The flywheel effect of the cast steel hollow main shaft with large pulley, make the granulating work smooth, low noise, little vibration.
(5) The Feeder, Modulator and Granulating chamber are all using stainless steel material,and the independent cutter mechanism is adopted set piece of structure for durable.
(6) Bolted machine enclosure is easy disassembly and maintenance.
(7) When running, roller can always get good lubrication through lubrication piping.
(8) Granulating machine equipped with ring die lifting mechanism.
(9) The three parts of the complete machine can be Sold separately.

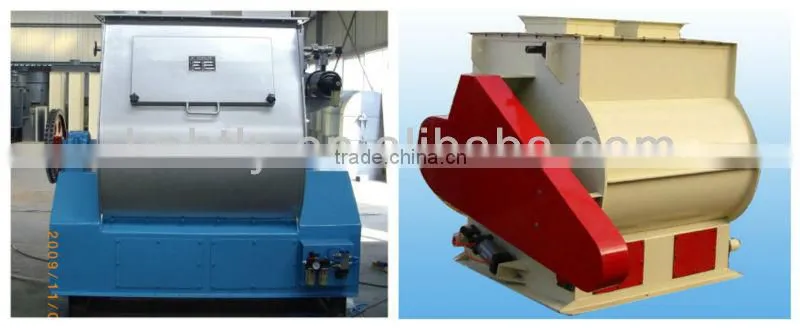

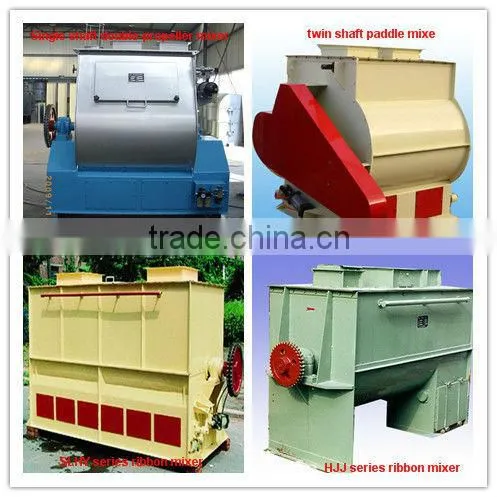

Single shaft double-propeller mixer Twin shaft paddle mixe
specification
1.short mixing period ,high mixing evenness: mixing uniformity CV≤5% for common material in 40-60 seconds
2.mixing with no segregation:material will continue to mix after mixing uniformly, with no grading phenomenon.
3.quick discharging, low residue
4.lareg addition amount of liquid
main parameters
Modle |
SJHS0.5 |
SJHS1 |
SJHS2 |
SJHS4 |
power |
5.5KW |
11KW |
18.5KW |
30KW |
Capacity /Batch |
250kg |
500kg |
1000kg |
2000kg |
SKLN series countercurrent cooler
1.Air and material reverse flow, low dynamic consumption, high cooling efficiency.
2.output temperature less than 50°C ,more than the room temperature.
3.With automatic auto-layout , manual forced drawing function.
Model |
SKLN11X11 |
SKLN14X14 |
SKLN19X19 |
Power |
1.3KW |
1.85KW |
2.25KW |
output |
3T |
5T |
10T |

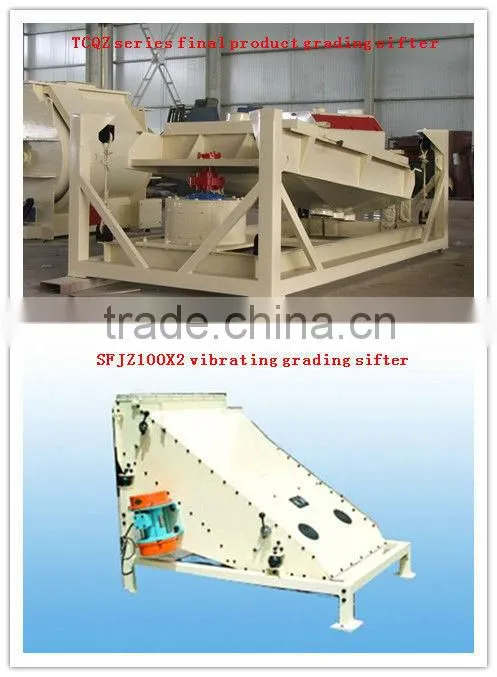

TCQZ series finished goods inspection screen
|
Model parameter |
TCQZ51 |
TCQZ55 |
Output(t/h) |
40-60 |
80-100 |
Efficiency of removing impurity |
≥95% |
≥95% |
Sieve barrel specifications(mm) |
510×460×900 |
550×460×1500 |
Striking board number |
3 |
4 |
Feeding spiral diameter size(mm) |
305 |
305 |
Rotor speed (r/min) |
203 |
230 |
Motor Model |
Y180L-8 B3 11KW |
Y225S-8 B3 18.5KW |
Outlook size (LxHxW)(mm) |
1900×1325×838 |
2578×1280×878 |
Aperture size: According to the different material characteristics and separation requirements,that could choose different size of aperture,which factory configuration 25mm.

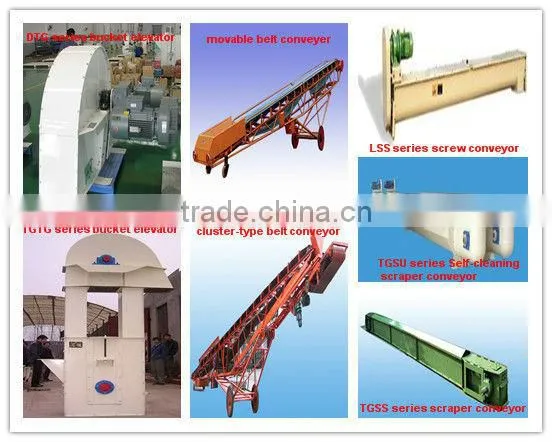

DTG series bucket elevator
-----------------------------------------------------------------------------------------------------------------
Pls contact us to learn more about us and our equipment at anytime,thanks.
