Corn oil press machine
1. AVAILABLE RAW SEED of corn oil press machine
2. The features and processes of corn oil press machine
2. 1. Pretreatment and prepressing of corn oil press machine
2.1.1 Features of corn germ pretreatment & propressing machines - corn oil press machine
♦ Innovative designs to meet various pretreatment and pressing of multiple oil seeds. Oil seed pretreatment and pressing equipments adopt advanced process design, being equipped with different process on basis of oil seed property. - corn oil press machine
♦ Affordable oil processing solution with low cost. Huatai Food & Oil Machinery provides reasonable designed oil pretreatment and pressing machines with durable structure, low production cost and affordable invest on major oil equipment. - corn oil press machine
♦ Environmental protection and energy saving oil plant. Combing the consideration of local climate and water quality with oil pretreatment and pressing process, Huatai assures the most reliable and lowest cost oil machine designs for users worldwide. -corn oil press machine
♦ Full set of production line and services. Huatai promises complete set of oil seed pretreatment & pressing machine production line including design, manufacturing and installation as well as on time after sale service. - corn oil press machine

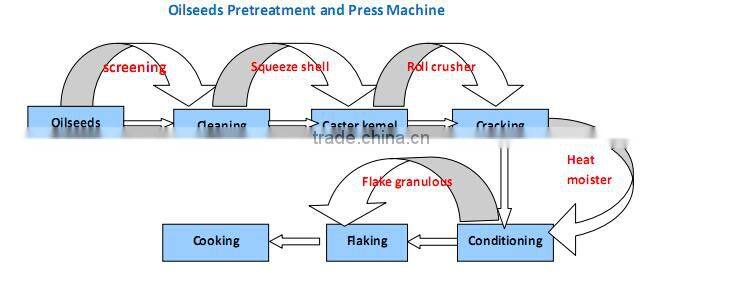

2.1.2 The process of oil seeds pretreatment and prepress - corn oil press machine
2.1.3 Capacity of corn oil expeller machine:50-5000t/d.
2.2: Extraction system of corn oil mill
2.2.1 Extraction processes - corn oil press machine
1). Solvent pumps: continuously spray solvent to the rotary-type extractor.
2). Roary extractor: Spray and soak the preressed cake with solvent so that oil fats can be
dissolved in solvent(form miscella). After processing, you can get wet meal and miscella
(mixed oil).
3). DTDC: usd to separate the solvent from the wet meal.
4). Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add
saline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5). Miscella tank 2nd: the purified miscella will be pumped into it.
6). Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will
be discharged to condenser for recycling.
7). Condensers: to cooling the solvent gas separated from the wet meal and miscella for
recycling.

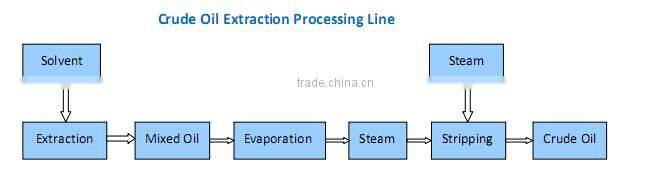

2.2.2 The flow chart of extraction processing line - corn oil press machine
2.2.3 Capacity of 50tpd corn germ oil press machinery: 30-5000T/D.
2.3 The refining process of oil seeds - corn oil press machine

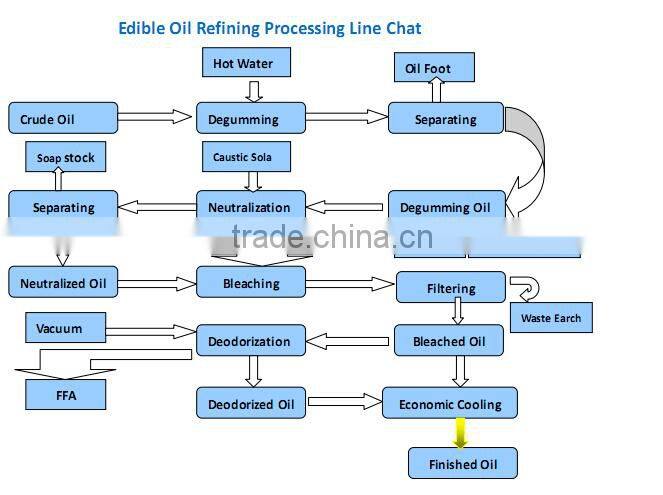

2.3.1 The flow chart of refining processing - corn oil press machine
2.3.2 The specification of refining system- corn oil press machine
Technical Parameters | |
Name |
Specification |
Steam consumption |
700KG/T oil |
Electric consumption |
28Kwh/T oil |
Water (soften water) |
150Kg/T oil |
Phosphoric acid |
2~3 kg/T oil |
Alkali |
acid valuex1-3kg/T oil |
Circulating water cooling water yield |
150M3/ |
Bleaching earth consumption |
3-5Kg/T oil |
Waste bleaching earth oil content |
≤25~35% |
Refining losses |
acid valuex1.2 (chemical refining) |
acid valuex 0.6 (physics refining) | |
Bleaching losses |
the quantity of bleaching earth×0.25% |
Deodorization loss consumption |
≤0.5%≤0.5% |
Refining rate |
1-refining consumption |
2.3.3 Refining process capacity: 10-600T/D.
3. ABOUT HUATAI CEREALS&OILS MACHINERY CO.:
♦ More than 60 years manufacture histories.
♦ Largest oil machine manufacturer in China.
♦ 100,000 m² of factory total area and 180 senior engineering technicians.
♦ 23 National patents.
♦ 87 million yuan fixed assets.
♦ 150 million annual sales turnover.

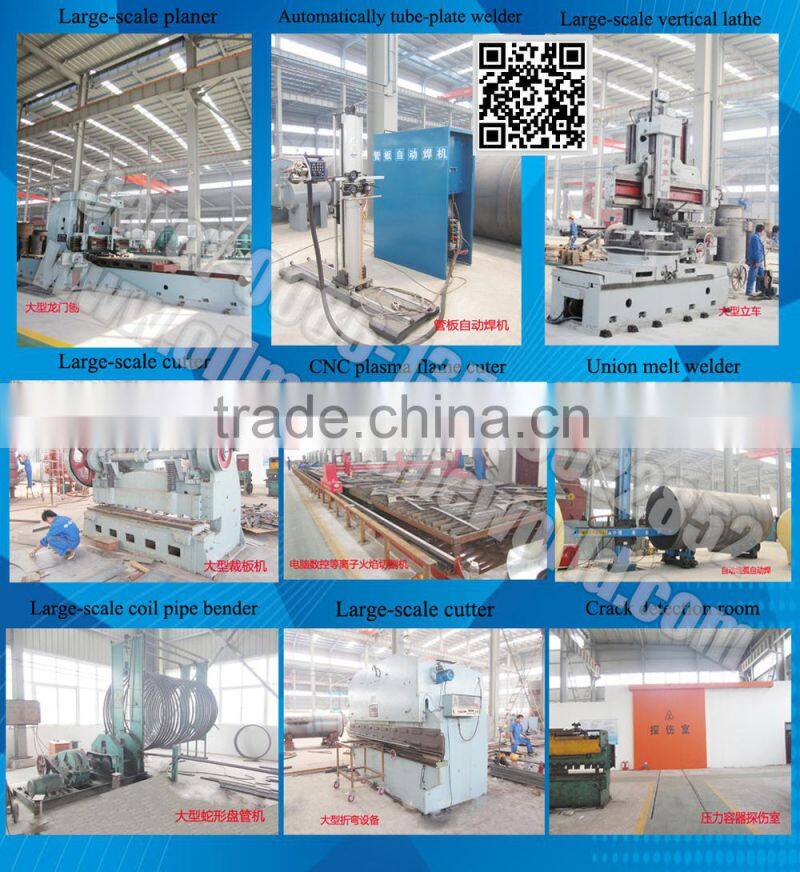

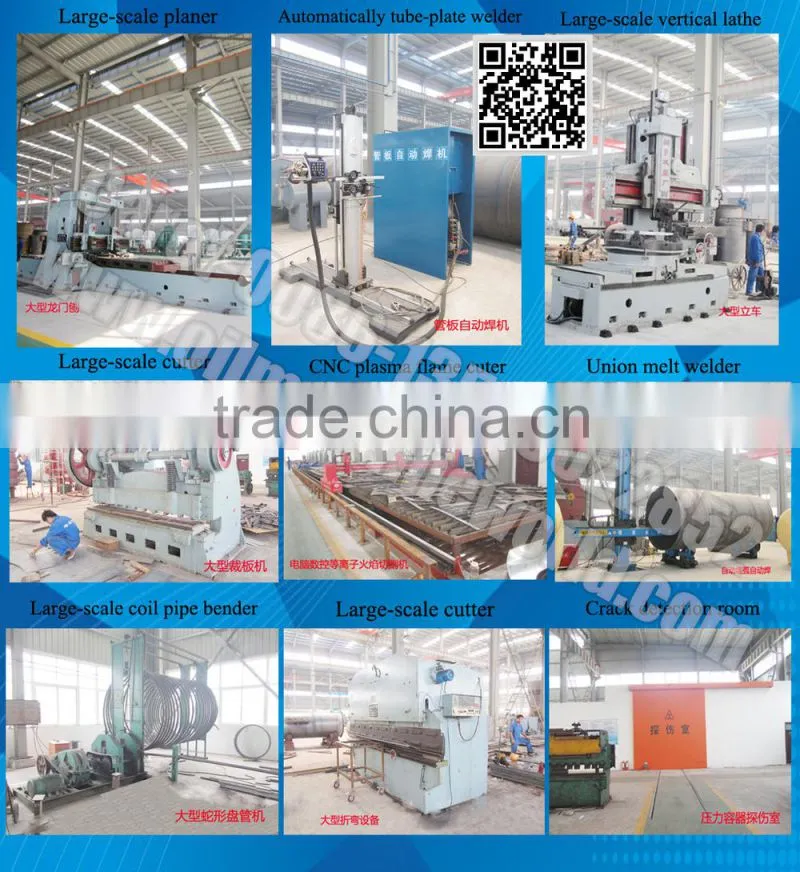

4. HUATAI COMPANY ADVANCED EQUIPMENTS:
5. HUATAI NATIONAL PAENTS:
6. HUATAI CUSTOMERS VISITING OVER THE WORLD:
7. STATE LEADERS VISITING TO HUATAI:
8. HUATAI CARGO DELIVERY:
9. HUATAI PROJECT INSTALLATION:
10. HUATAI OVERSEA EXHIBITION:
11. QUESTIONS & ANSWERS OF HUATAI:
1. Q: Which kind of materials can be processed?
A: All kinds of oil seeds. For example, rice bran, corn germ, cottonseeds, peanut, sunflower, soybean, rapeseed, etc.
2. Q: What's the capacity?
A: 30-5000 tons per day. Of course, we can manufacture as customized order.
3. Q: How long is the warranty?
A: After installing qualified, we guarantee the main parts nature time 1 year.
4. Q: Can you install the machine in local place?
A: Yes! We are a collection of r &d, design, manufacture, installation and training! We can make turnkey project.
5. Q: How to contact with you?
A: Kindly check the below picture.
If you want to know more information about our project, Please Leave Messenge on below form and click " send" blew . I will reply to you . thanks!
