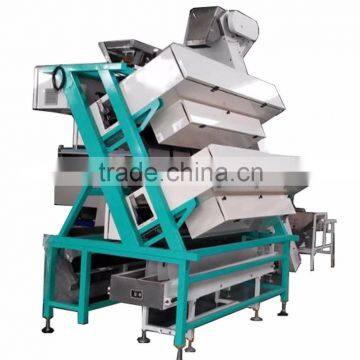

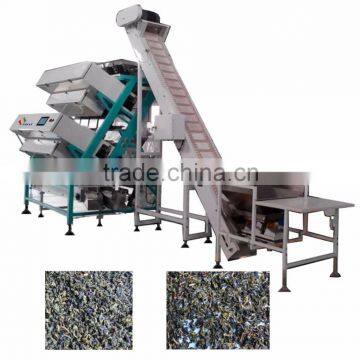

5000 * 3 Pixel CCD Camera Tea Color Sorter Machine for Various chutes
Quick details:
1) High Frequency, More Big Processing Capacity
2) High Definition, More Accuracy
3) High Sensitivity, Low Carryover Rate
4) Famous Ejector, Stable and Durable
5) Advanced Software, More Simple to Operate
6) Optimized Designing, More Easy Maintenance
7) Latest LED Sources
8) Reliable Quality, Good After-sales Services
Technical Specifications:
ITEM |
1R |
2R |
3R |
4R |
|
Model No. |
CST-1 |
CST-2 |
CST-3 |
CST-4 |
|
Weight (kgs) |
850 |
850 |
900 |
950 |
|
Light source |
LED light |
LED light |
LED light |
LED light |
|
Pixel of camera |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
|
Processing capacity (kgs/h) according to impurity |
100-200 |
200-400 |
300-600 |
400-800 |
|
Sorting accuracy |
≥99% |
≥99% |
≥99% |
≥99% |
|
Carryover rate |
≥8:1 |
≥8:1 |
≥8:1 |
≥8:1 |
|
Main machine power |
1.1 |
1.5 |
1.8 |
2.2 |
|
Air pressure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
|
Air consumption (L/min) |
400-1000 |
500-1500 |
600-2000 |
700-2500 |
|
Dimension (mm) |
L |
1100 |
1410 |
1730 |
2030 |
W |
1550 |
1550 |
1550 |
1550 |
|
H |
2300 |
2300 |
2300 |
2300 |
|
Power supply (V/Hz) |
The voltage/ hertz can be as required |
||||
Competitive Advantage:
1, High reliability
The optimized system structure, minimizes the complexity of the machine, and improves the reliability of the machine.
2, Advanced camera image acquisition system
Use 5000*3 pixel high-speed high resolution linear CCD image sensor, which can distinguish the heterochromatic regions of 0.025mm2 accurately.
3, Intelligent image processing algorithm
Special intelligent algorithms, world sole rapid and big data communication, implement special treatment for tiny spots, yellowish material, etc. to improve sorting accuracy.
4, World Famous Ejectors
Using world famous ejectors, 1000 times per second high-frequency, 10 billion times long working life, low air consumption to guarantee the big capacity, excellent rejection output.
5, LED light source
The LED light source, long life, more energy-efficient.
6, Multi-language 10” Touch Screen
Friend Human Machine Interface, easy and simple to operate.
7, Enable more applications, multi-function
Various rice can be sorted, and one machine can be used for sorting several similar materials, more flexible.
