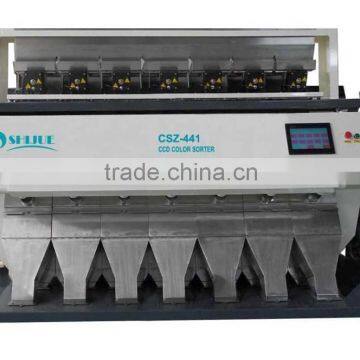

Shijue 2015 Hot Sale CCD Clove Color Sorter Machine With Factory Price
Quick details:
1) High Frequency, More Big Processing Capacity
2) High Definition, More Accuracy
3) High Sensitivity, Low Carryover Rate
4) Famous Ejector, Stable and Durable
5) Advanced Software, More Simple to Operate
6) Optimized Designing, More Easy Maintenance
7) Latest LED Sources
8) Reliable Quality, Good After-sales Services
Technical Specifications:
ITEM |
2R |
3R |
4R |
5R |
6R |
7R |
|
Model No. |
CSZ-126 CSZ-84 |
CSZ-189 CSZ-126 |
CSZ-252 CSZ-168 |
CSZ-315 CSZ-210 |
CSZ-378 CSZ-252 |
CSZ-441 CSZ-294 |
|
Channels |
126/84 |
189/126 |
252/168 |
315/210 |
378/252 |
441/294 |
|
Weight (kgs) |
850 |
900 |
950 |
1050 |
1150 |
1250 |
|
Light source |
LED light |
LED light |
LED light |
LED light |
LED light |
LED light |
|
Pixel of camera |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
|
Processing capacity (t/h) according to impurity |
1.5-3.0 |
2.0-4.0 |
2.5-5.0 |
3.0-6.0 |
3.5-7.0 |
4.0-7.0 |
|
Sorting accuracy |
≥99.95% |
≥99.95% |
≥99.95% |
≥99.95% |
≥99.95% |
≥99.95% |
|
Carryover rate |
≥9:1 |
≥9:1 |
≥9:1 |
≥9:1 |
≥9:1 |
≥9:1 |
|
Main machine power |
1.5 |
1.8 |
2.2 |
2.6 |
3.0 |
3.6 |
|
Air pressure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
|
Air consumption (L/min) |
750-1500 |
1000-2000 |
1250-2500 |
1500-3000 |
1750-3500 |
2000-4000 |
|
Dimension (mm) |
L |
1410 |
1730 |
2030 |
2340 |
2650 |
2960 |
W |
1550 |
1550 |
1550 |
1550 |
1550 |
1550 |
|
H |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
|
Power supply (V/Hz) |
The voltage/ hertz can be as required |
||||||
Competitive Advantages:
1) High reliability
The optimized system structure, minimizes the complexity of the machine, and improves the reliability of the machine.
2) Advanced camera image acquisition system
Use 5000 pixel, 3CCD chips, to get more higher definition of up to 0.025 mm2 , machine can do more better than 2048 pixel camera, more sensitive, more accurate.
3) Intelligent image processing algorithm
Special intelligent algorithms, rapid and wide band data communication, real time implement special treatment to tiny spots, yellowish material, etc. to improve sorting accuracy.
4) World Famous Ejectors
Using world famous ejectors, 1000 times per second high-frequency, 15 billion times long working life, low air consumption to guarantee the big capacity, excellent rejection output.
5) Advanced LED light source
The latest advanced LED light source, long life, more energy-efficient.
6) Multi-language 10” Touch Screen
Friend Human Machine Interface, easy and simple to operate.
7) Enable more applications, multi-function
Various rice and similar material can be sorted, and one machine can be used for sorting these similar materials, more flexible.
