Hot Selling Good Quality Walking Tractor Potato Harvester
Negotiable
MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TNS, NANGFANG
Model Number:
GN-12, GN-12
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling Good Quality Tractor Mounted Road SweeperNegotiableMOQ: 20 Sets -
E- SkateboardNegotiableMOQ: 1 Piece
-
Hot Selling Best Price Good Quality Mini Tractor With HarvesterNegotiableMOQ: 20 Sets
-
Hot Selling Best Price Good Quality Used Chipper for TractorNegotiableMOQ: 20 Sets
-
Electric Golf CartNegotiableMOQ: 2 Pieces
Place of Origin
Zhejiang, China
Brand Name
TNS, NANGFANG
Model Number
GN-12, GN-12
Type
Other, Farm Cultivator
Nanfang brand walking tractor and Cymbiform model GN 12 is designed for both pulling
and driving.
These models feature high and low speed output, compactness and simple construction, easy control and steering, lightweight, rugged durability and reliability.
It is suitable for working in dry and paddy field, orchard and slightly hilly land when completed with driver's seat and farm implements, such as plough, rotary tiller, disc plough, ditcher and harvester.
Walking tractor model GN 12 can also be used as transportation vehicle matched
with trailer and as a power in the rural area for stationary work, such as pumping,
spraying, feed grinding, flour milling and trenching.
The power output of the engine can be strengthened through changing the engine
type. Moreover, these Nanfang brand walking tractor and Cymbiform tractor can
also be developed as the electric start model with great performance.
and driving.
These models feature high and low speed output, compactness and simple construction, easy control and steering, lightweight, rugged durability and reliability.
It is suitable for working in dry and paddy field, orchard and slightly hilly land when completed with driver's seat and farm implements, such as plough, rotary tiller, disc plough, ditcher and harvester.
Walking tractor model GN 12 can also be used as transportation vehicle matched
with trailer and as a power in the rural area for stationary work, such as pumping,
spraying, feed grinding, flour milling and trenching.
The power output of the engine can be strengthened through changing the engine
type. Moreover, these Nanfang brand walking tractor and Cymbiform tractor can
also be developed as the electric start model with great performance.
MODEL | GN-12 | ||||||||||
| Overall dimensions:(L×W×H) | 2950×980×1240mm | ||||||||||
| Wheel tread | 570,630,690,750,810mm | ||||||||||
| Tyres | 6.00-12 | ||||||||||
| Ground clearance | 210mm | ||||||||||
| Working weight (with rotary tiller) | 500kg | ||||||||||
| Speed Forward | 1.39, 2.47, 4.15, 5.14, 9.12, 15.30 | ||||||||||
| (km/h) Reverse | 1.10, 4.10 | ||||||||||
| Turning speed | Low:199; High:250 | ||||||||||

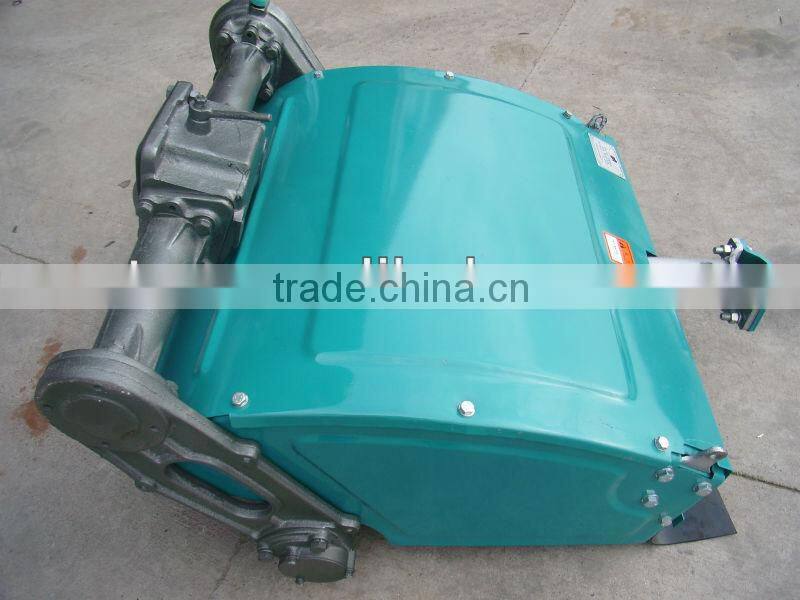

| Rotary tiller | Width | 600mm | |||||||||

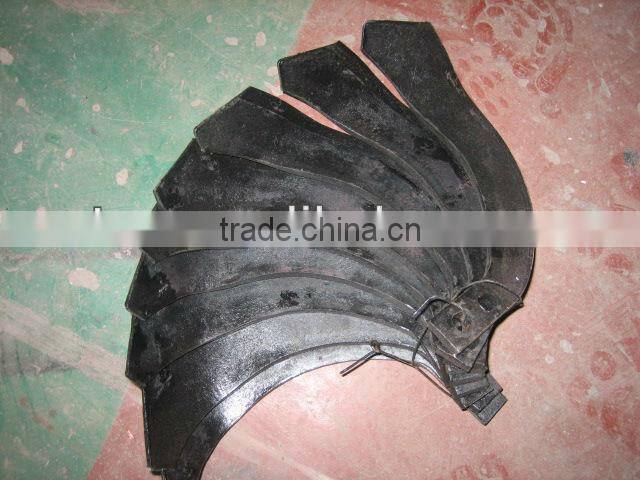

| Number of blades | 18pcs | ||||||||||
| Model | S195N | ||||||||||
| Type | Single cylinder,4-stroke,horixontal,water-cooled,diesel | ||||||||||
| Cooling mode | Condenser (Radiator) | ||||||||||
| Rated power | 8.82kw | ||||||||||
| Engine | Rated speed | 2000rpm | |||||||||
| Fuel efficiency: | ≤258.4gl/kw.hr | ||||||||||
| Net weight | 140kg | ||||||||||

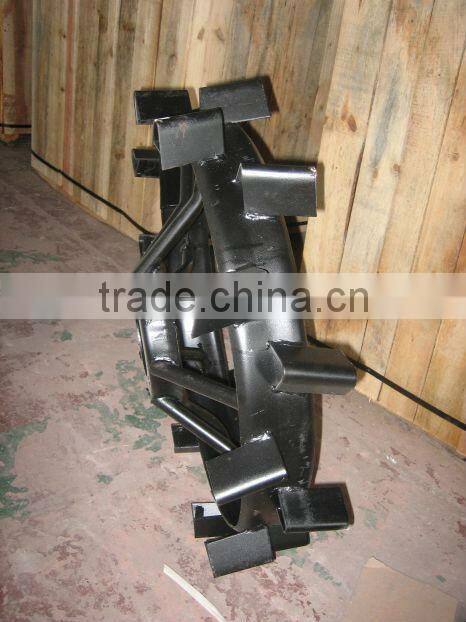

| Main farm implements | 1)Anti-skid steel wheel; | ||||||||||
| 2)Double-plough (optional) | |||||||||||
| 3)Trailer(optional) | |||||||||||
| Packing | Case dimensions | 116×108×108cm | |||||||||
| N.W/G.W.: | 480/540KG | ||||||||||
| Conveyance: | Qty/20' FCL.: | 20pcs | |||||||||
| Qty/40'(HQ) FCL.: | 40pcs(packing mud wheel inside box) 48pcs(mud wheels | ||||||||||
