14 inch silicone rubber roller,aluminum drum rubber roller
- 6000 Piece / Pieces per Month
- Shanghai Port Ningbo Port Wuhan Port
- T/T
- High Quality Silicone Rubber Foam Sponge Bumper Buffer Extrusion Profile Seal Strip
- Medical grade 2 inch rubber hose Silicone extrusion Tubing Chemical resistance silicone rubber hose
- Factory Supply ABS or PVC/UPVC /PS /PE/PP/PC Plastic Rigid Extrusion Profile for Refrigerator Parts with Good Price
- Manufacturer High quality smooth and elastic food grade silicone rubber vacuum hose for extrusion machine
- Customized Automotive Weather Striping EPDM Rubber Form Sealing Strip
- High temperature heat resistant Double-e shaped silicone rubber Extrusion oven door seal strips
Product Details
Place of Origin: | Hubei, China | Brand Name: | Hongqi Bridge | Model Number: | LG 355 for rubber roller |
Product Description
Rubber Roller

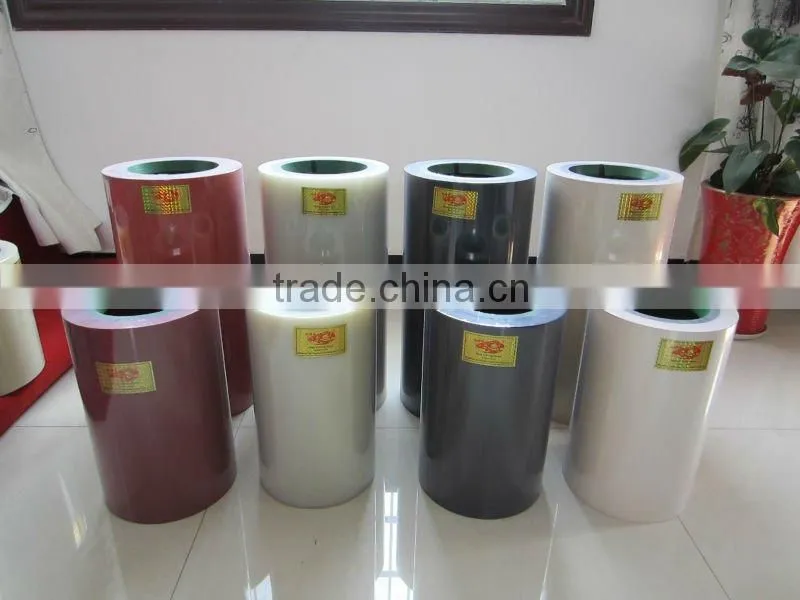

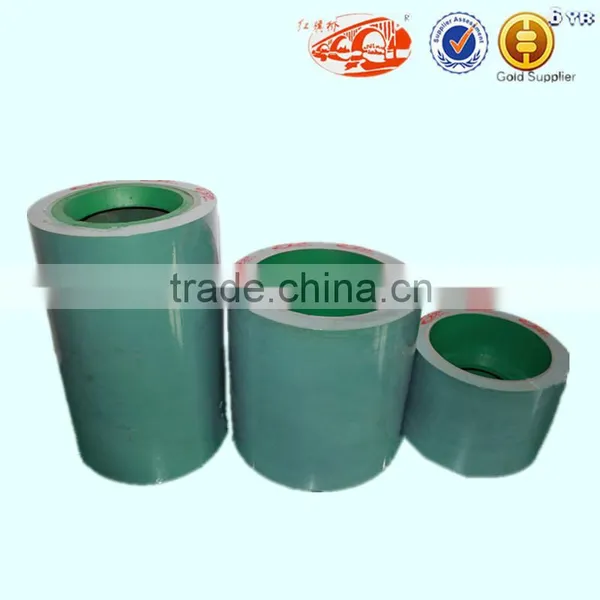

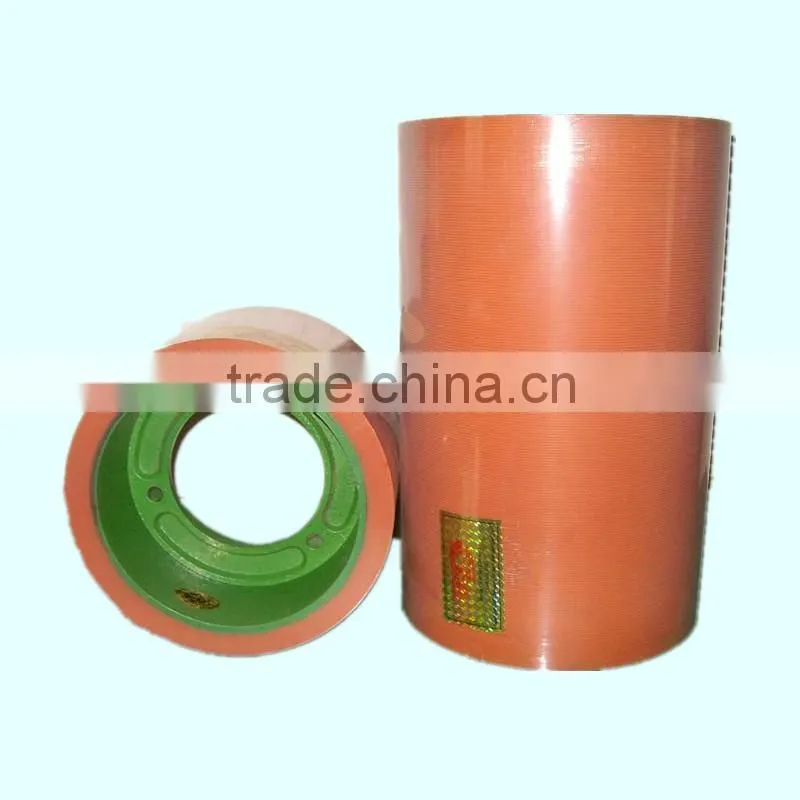

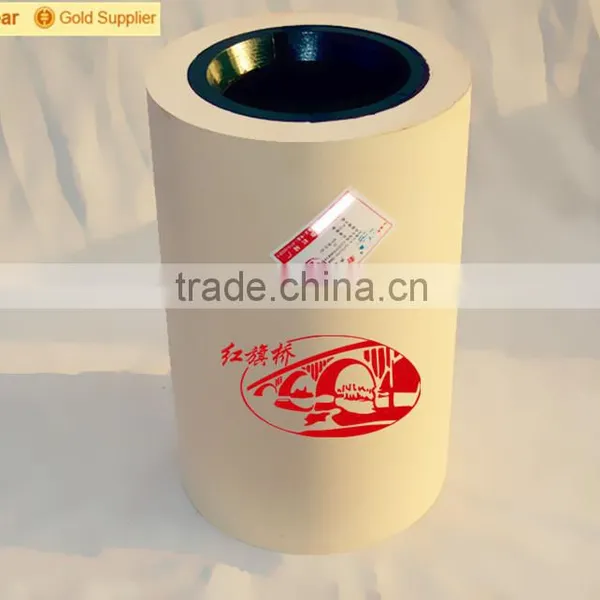

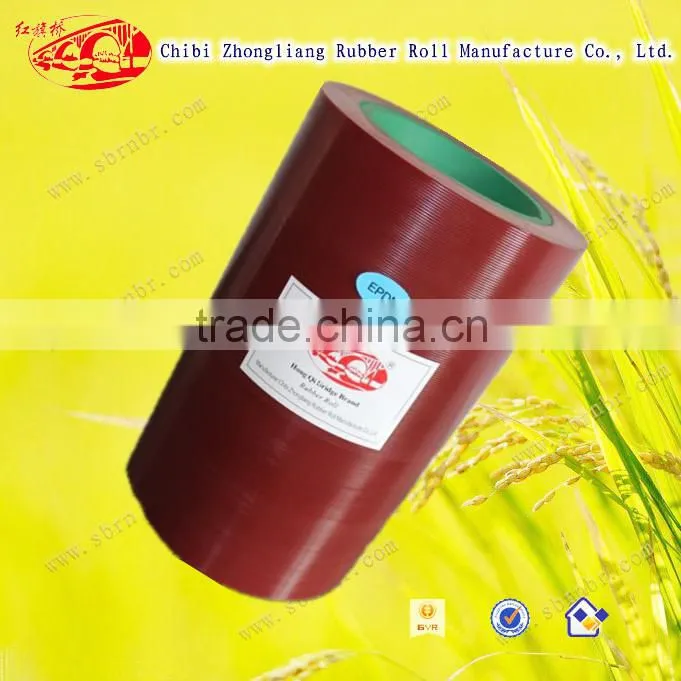

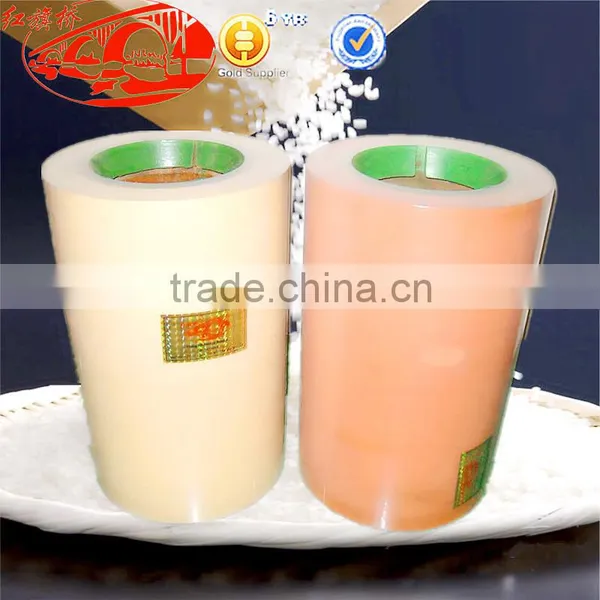

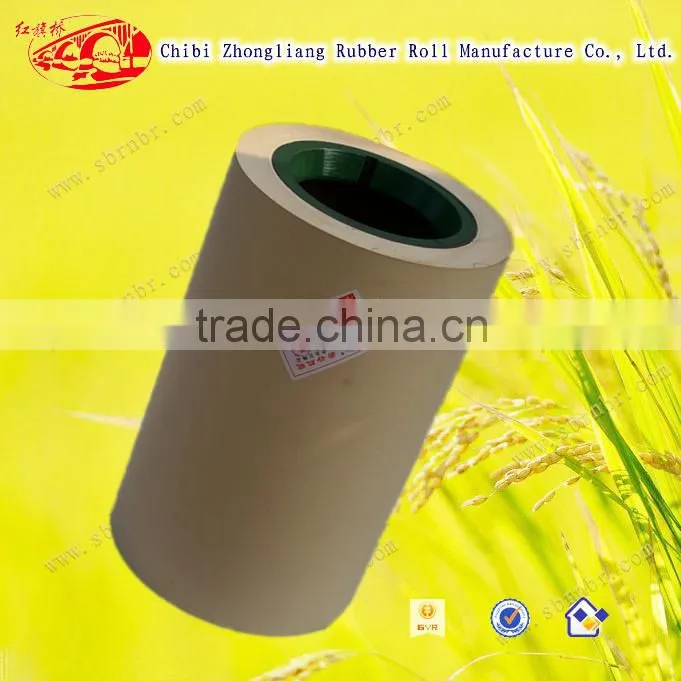

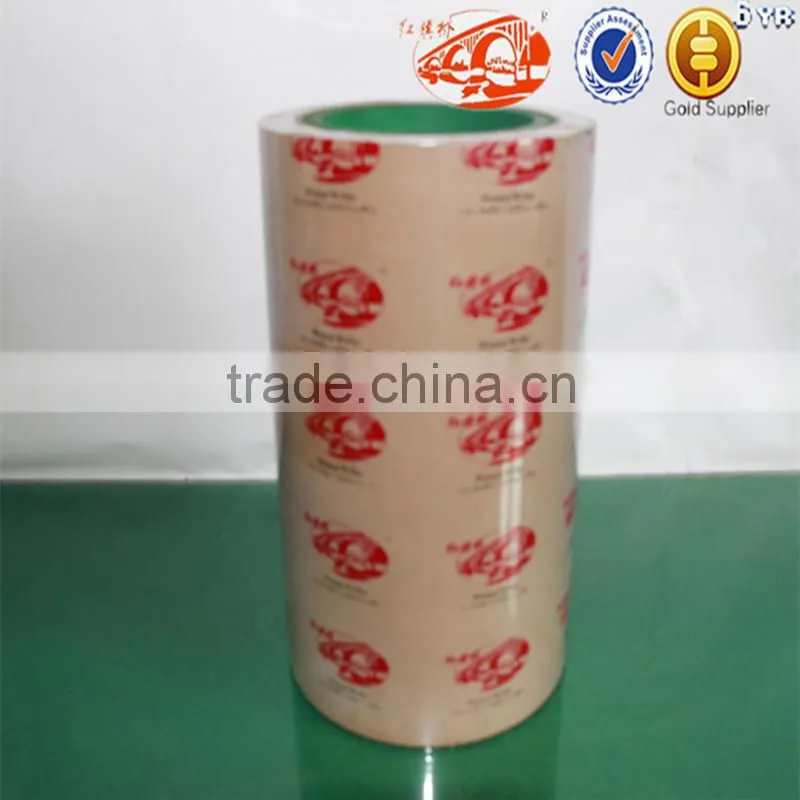

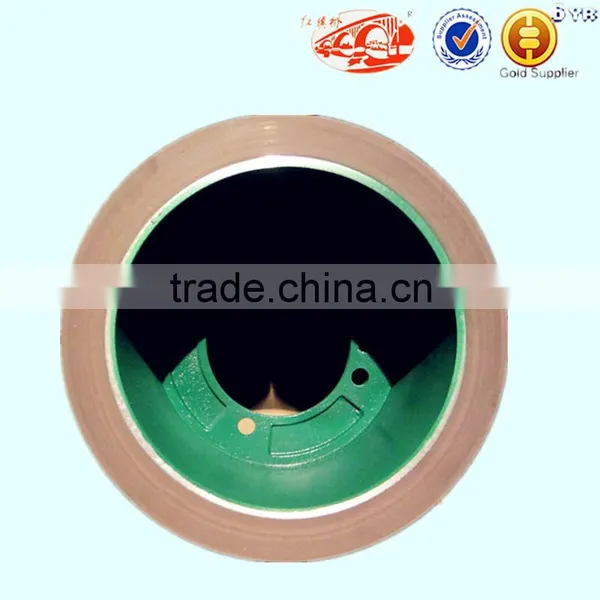

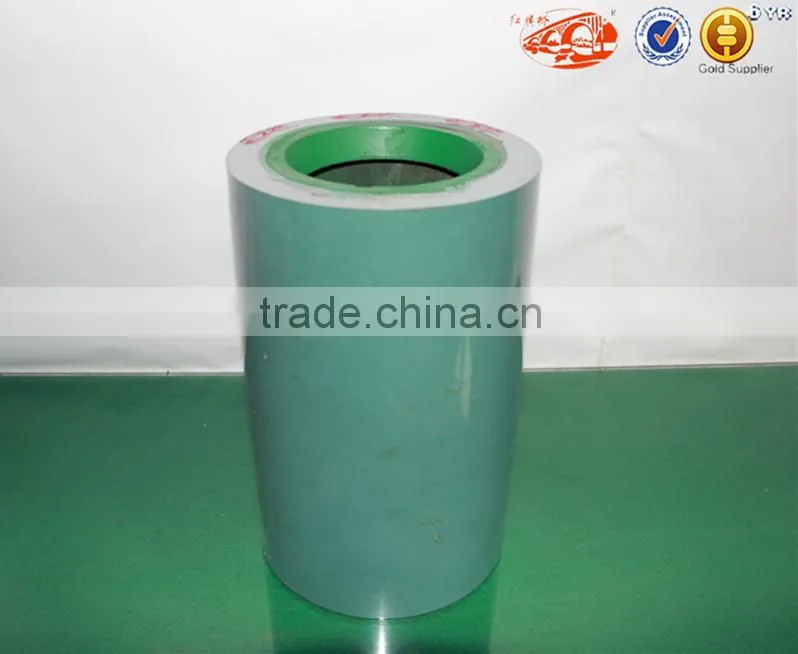

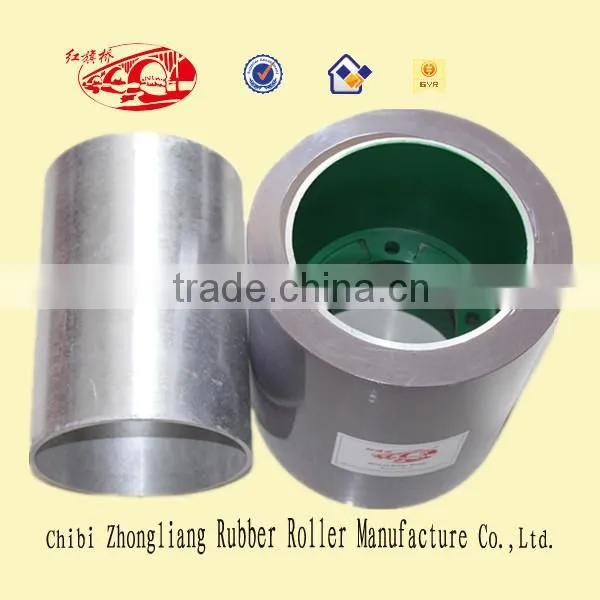

14 inch silicone rubber roller,aluminum drum rubber roller
Brand: The brand of "Hongqi bridge" has high market share, and is the first choose of customer all the time. we also accepte the OME order with your logo.
Production and administration conception:
We have tried our best to provide wonderful goods and service to customers through perfect managment,precise style of work,sincere attitude and enthusiastic cooperation spirit.
Operating principle:

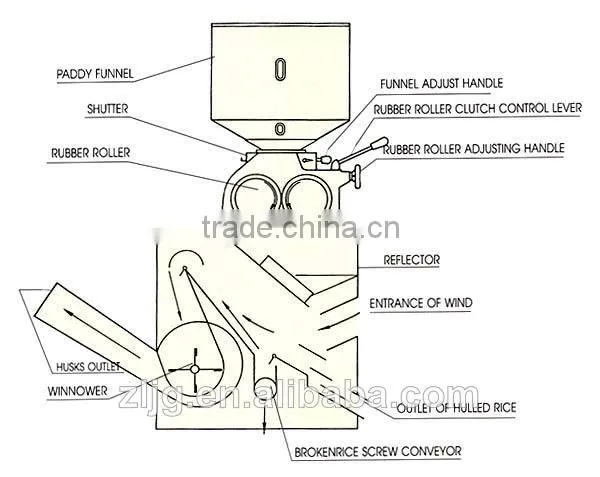

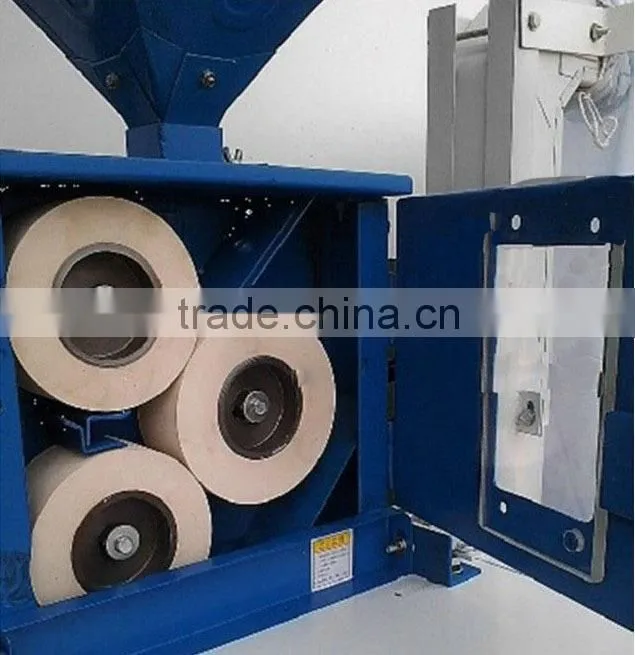

Because of speed difference of veer and reversion between two rubber rollers, paddy are torn up by two rubber rollers.In the end, rice grains come out.
Variety:
Rubber Roller , 14 inch silicone rubber roller,aluminum drum rubber roller
Specification:
Type | Inch | External diameter | Length | Thickness of rubber |
Wheel Type | 4” | 222 mm | 100 mm | 19.5 mm |
6” | 222 mm | 152 mm | 19.5 mm | |
8” | 225 mm | 200 mm | 25 mm | |
10” | 255 mm | 254 mm | 24.5mm | |
Casing Type | 14” | 227 mm | 355 mm | 29.5 mm |
18” | 232 mm | 457 mm | 30.5 mm | |
20” | 258 mm | 508 mm | 30.5 mm | |
| 25” | 255 mm | 635mm | 30.5mm |
| 28” | 255mm | 710mm | 30.5mm |
Color | White & Brown & ember | |||
Hardness Shore A | 95±3° | |||
Tensile Strength | ≥21.0(Mpa) [Superior to international advanced level] | |||
Elongation Rate | ≥250% [Superior to international advanced level] | |||
Brand | Hong QI Bridge, Tiger & Lion, JinBao |
Production and administration conception:
We have tried our best to provide wonderful goods and service to customers through perfect managment,precise style of work,sincere attitude and enthusiastic cooperation spirit.
Advantage:
1.Strong bonding between rubber roll and drum
2.Ensure high degree of heat resistance and durability
3.High peeling efficience at minimum broken rice to be attained by its well balance of elasticity, hardness and abrassion resistance.
Useful tips:
1.Take away sand from rice,make sure the cleanliness of rice before hulling.
2.Two rolls should be placed at the parallel side,the space must be equal.
3.The flow or discharge should be balanced,the flow layers should well-arranged.
4.Control the segregation efficiency,and use it within the limits.
Standard Quotation Sheet |
Model No. | Meas.(mm) | Packaging | Weight(1carton) | 20"HQ/PCS | Capaciy | Mill rate | hardness |
| |||
14 inch silicone rubber roller,aluminum drum rubber roller | Product Size:355*227 | Carton or as your request | N.W:33KG | 950PCS | 300 tons/pair | 90%-95% | 91°~93° |
| |||
| Carton Size:470*242*370 |
| G.W:34KG |
|
|
|
|
| |||
Material | indicate the different material applied |
|
|
|
| ||||||
Delivery | Depend on the quantity in details | ||||||||||
Payment | 30% T/T in advance,70% against copy of B/L,or by L/C | ||||||||||
MOQ | 200 pcs |
Attention matters:
1.Handle carefully during the transportation.
2.Store in dry place,away from Acid,Alkali,Salt,oil and dirty,forbidden to put under sun for long time.
3.Take sands away from the paddy,keep paddy dry and cleaning when using the rollers.
4.Two rollers should be at the same level,the space must be equal.
5.The paddy inputting should be keep the blance.
6.Keep the rate of the re-hulling under the limited.
7.Don't make the machine work for a long time,in case effecting the hulling capacity.
8.The surrounding temperature is better under the 50°C.
9.Change the fast and slow roller at a certain time.
