Semi-automatic potato chips packaging machine
Desceiption of potato chips packaging machine
Semi-automatic potato chips packaging machine is used to packaged such as Puffed food, potato chips, crispy rice,Jelly, candy, chocolate, banana slices, Boiled dumplings, small pieces of metal, cookies and so on.
Combined parts:
1 Model vffs machine
2. bucket chain conveyor
3 Finished product conveyor
1.vffs machine:
Features:
Import PLC computer control system, human-machine screen, easy touch screen operation.
With imported servo film transporting system and mark sensor,accurate positioning, perfect packing.
Perfect automatic alarm function, to minimize the loss.
Combine with metering device, it can finish the process of metering,feeding, filling, bag making, printing.

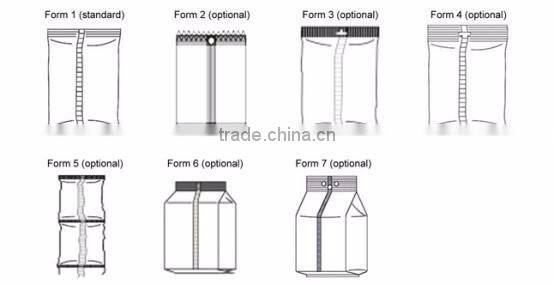

Bag type: can make it with pillow bag and vertical bag according to customer needs.
Technical parameter of vffs machine:
TYPE |
HS-420 |
Bag length |
80-300mm(L) |
Bag width |
80-200mm(W) |
Max width of roll film |
420mm |
Packing material |
OPP/CPP,OPP/PE,PET/PE |
Packing speed |
5-60bag/min |
Measuring range |
50-500ml |
Air consumption |
0.65mpa |
Gas consumption |
0.3m2/min |
Power voltage |
220V |
Dimension(mm) |
1440*1180*2040 |
Weight |
450kg |
2.Bucket chain conveyor
Applications:
Suitable for the lifting of frangible and non-frangible material such as potato slice, prawn cracker, crispy rice, metals and medicines etc.
Features:
1. The elevator and electronic metering scale shall be used together, control circuit is used to control the position of the material, realizing automatic feeding and stopping function.
2.The elevator can be made of stainless steel and carbon steel according to the customer choice.
Specifications:
Power |
380V,50/60Hz,0.75kw |
Conveying Speed |
3-6m3/h |
Gross Weight |
90kg |
Dimension(mm) |
2810*560*410 |
3.Finished product conveyor
Features:
1. Adopt imported miniature motor and featured with low noise,long life.
2. It can transport finished products to platform, reducing waste during the process.
3. Take the finished products away in time, to make packing machine work more smoothly.
Specifications:
Power |
220V,50/60Hz,40W |
Conveying Speed |
60 bags/min |
Gross Weight |
70kg |
Dimension(mm) |
1500*510*960 |
Final products of pakaged food
Package and Delivery
Transportation:by ship or by air
1.Q:Are you a factory or trading company?
A:we are a factory
2.Q:Where is your factory located?How can i visit there?
A:Our factory is located in Zhengzhou city,Henan province,China,about 2 hours by fly from
Guangzhou.We open our arms and warmly welcome to vist us!!
3.Q:What is the material of your products?
A:The materials is according to the international standard quality raw material to make
it,also can as our customers' requirements.
4.Q:How does your factory do regarding quality control?
A:We have the person check the machine from beginning to end.Our factory has gained
BV,Intertek,SGS authentication.
5.Q:What is your payment terms?
A:30%T/T in advance,70% when receiving B/L copy.or IRREVOCABLE L/C.
6.Q:What is your lead time?
A:With 3-10days after receiving deposit or original L/C.
