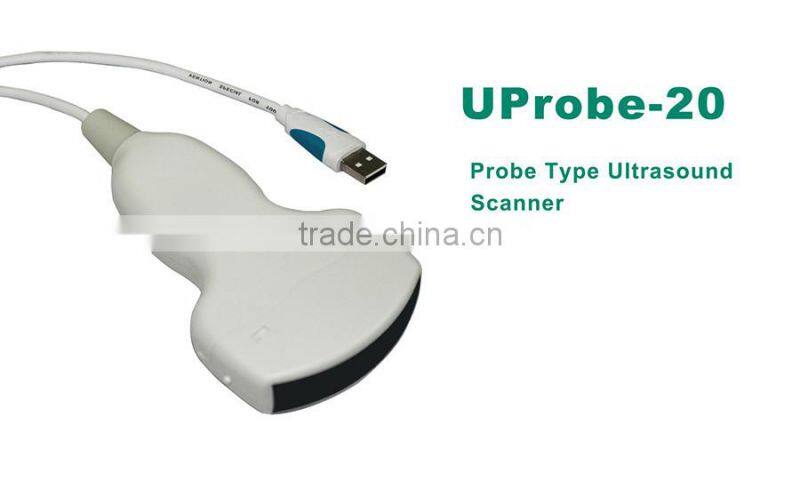

UProbe-20 Probe Type Ultrasound Scanner for laptop

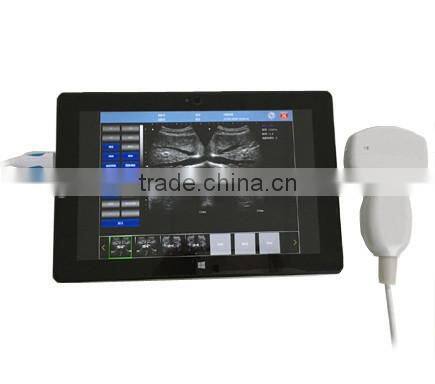

UProbe-20 Probe Type Ultrasound Scanner is work with computer(windows) or tablet/phone(Androi), connect by USB Cable.

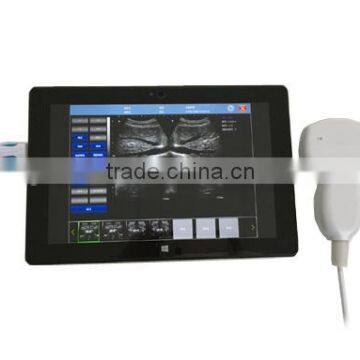

UPad-10 Tablet PC based Ultrasound B Scanner

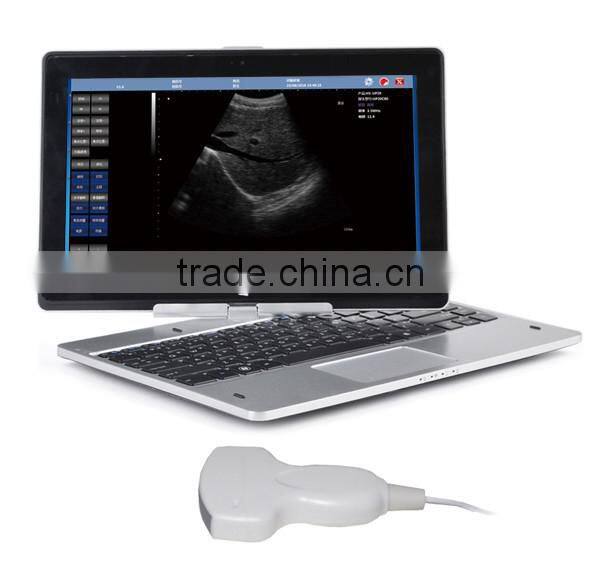

UBook-8 Laptop PC based ultrasound scanner

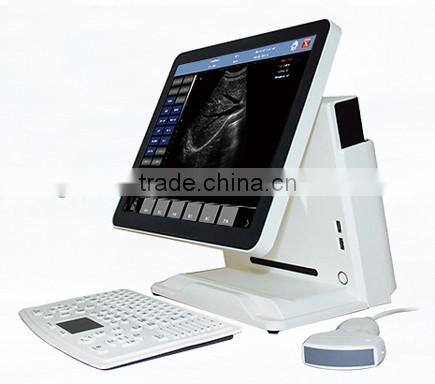

UTouch-10 Touch Screen PC Based B/W Ultrasound Scanner

Feature:

-Smalle and light

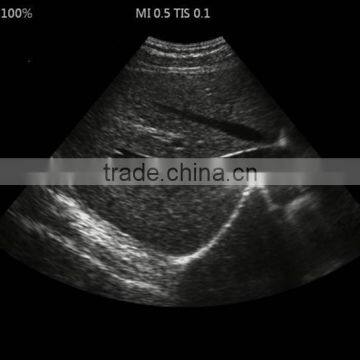

-Full digital imaging technology, crystal-clear Image
-Work with windows system computer or tablet
-Abundant functions, powerful report management
-Suit for emergency, clinic, outdoor outdoor and vet inspection

Specification:
1. Scanning type: Electronic convex array scanning

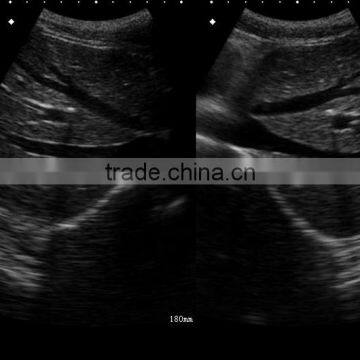

2. Scanning mode: B, B/B, B/M, M, 4B
3. Probe type: Convex array probe, Radius 60mm, Frequency scope: 2.0 MH~4.5 MHz(Center Frequency 3.5MHz, 80 elements, USB connect
4. Operating System: User's computer or tablet, Win XP, VISTA, WIN7, WIN8, Wind10.
5. Software language: Chinese/English, switchable
6. Multi-frequency switch: 2.0MHz, 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 4.5MHz.
7. Focus: Electronic focus selection
8. Six kinds application preset: General, Gynecology, Obstetrics, Cardiology, Small parts, Urology

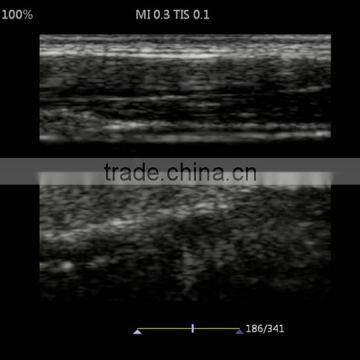

9. Image Processing
   Pre-processing: Frame Correlation, Dynamic Rang, THI, Smoothing and sharpening
   Post-Processing: γ adjustment
10. Image Magnification: 1.0, 1.2, 1.5, 2.0
11. Gain Adjustment: Total Gain and Steps Gain adjustment
12. Measurement and Calculation
    B mode: distance, circum, area, volume, angle, ratio, stenosis, profile, histogram;
    M mode: heart rate, time, distance, slope and stenosis;
    Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
    Obstetric: gestation weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), fetal weight, AFI;
    Cardiology: LV, LV function, LVPW, RVAWT;
    Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
    Small parts: optic, thyroid, jaw and face.
13. Image save and Cine loop memory: HDD Save/Preview image files (JPG), Data files preset, 512-frame memory,manual/automatic cine loop
14. Image flip: Left/right Mirror Horizontally Flip, Up/down Vertically Flip
15. Notation: Date, Time, Name, Patient ID, Age, Doctor, Hospital Name; Full screen annotation edit; Probe direction mark; Body mark
16. Image report and print function
18. Continues working time: Max. 8 hours

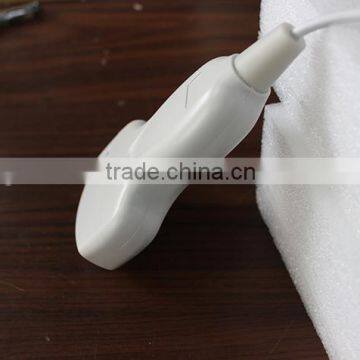

19. Probe dimension and weight:
    a) Probe size:23mm×150mm×70mm
    b) Cable Length: 190cm
    c) Weight: 0.2 KG

Standard Configuration:
-Convex probe(R60, 3.5MHz) 1pcs
-Software disk 1pcs
Optional:
-Computer, tablet
-Ultrasound keyboard
