Help CenterDigital 12-channel ECG Machine
Related Products
Main Features

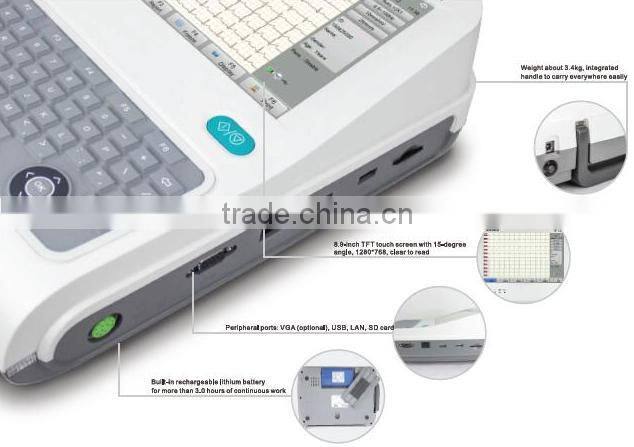

• Smart and portable design
• 8.9-inch high resolution TFT touch screen with 15-degree angle, easy to view
• Waterproof and full alphanumeric keyboard with shortcut keys, efficient in operation
• Broad frequency response 0.05~250Hz for weaker signal recognition and capture, more suitable for pediatrics
• Specific age and gender differential validity in Biocare CardioProTM analysis program maximizes the accuracy of the ECG interpretation

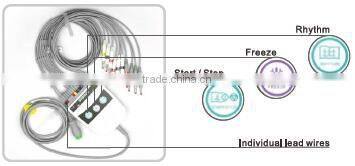

• Unique ECG acquisition module with 3 independent keys streamlines the whole workflow
• ECG electrode placement diagram for lead connection guide and alarming
• Up to 300 seconds frozen waveforms reviewable and recordable
• Up to 300 seconds R-R analysis in 1 or 3 rhythms for easier in arrhythmia locating
• Cabrera mode available
• Support various file formats: Biocare, XML, DICOM, JPG and PDF
• Massive local storage for up to 3000 files
• 3 ways of file storage: local memory, SD card, USB flash disk

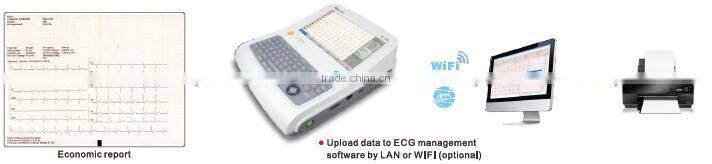

• ECG management software by LAN or WIFI (optional)
Efficiency in Acquisition
• Advanced 24-bit A/D converter technology, better in weak signal detection
• Complete filtering technology against AC, EMG interference and baseline wandering
• Individual lead wires can be exchanged
• 3 operation keys for efficiency improvement and time saving
Excellence in Measurement and Interpretation
• CardioProTM ECG analysis program, proven by CSE/AHA/MIT database with high accuracy and reliability in measurement and interpretation.
• 0.01Hz for high-pass filter, more sensitive in weaker ECG signal detection, contributes to undistorted ST segment measurement and analysis
• Exclusive analysis module for pediatrics with 250Hz low-pass filter, meets the latest standard of AHA/ACC/HRS 2007.
• Auto-trigger printing when an arrhythmia is detected under trigger mode
• Extending printing prompt
• Up to 300 seconds R-R analysis in 1 or 3 rhythm leads for easier in arrhythmia locating
• R-R trend and histogram for clinical reference
• Up to 300 seconds of uniterrupted 12-lead frozen waveforms for intermittent arrhythmia analysis
• Seleteable any 10 seconds for a fully interpreted report
• Cabrera mode available to orientate the original position of myocardial ischemia or arrhythmia
• Identify pacemaker types and working status through ECG analysis
• 3 status for various pacemaker type: weak, normal, enhance
• Automatically measure wave complex duration and amplitude
Streamlined Workflow from Start to Finish

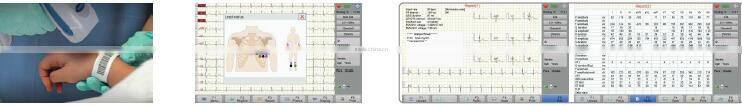

• Icon buttons on the screen for intuitive operation
• Various report formats for printing
• Barcode scanner to quickly input patient ID
• On-screen operation guide to check the ECG procedure
• Preview the report before printing
Data Management Solution
• File formats: XML, DICOM, JPG, PDF
• Internal memory can be 3000 files
• Support SD card and USB flash disk
Delivery Time
• Within 15 working days when 100% T/T in advance
Packing Details
• Size: 450x370x26mm/unit
• Net weight: 3.6Kg
• Gross weight: 6.9Kg
• Warranty: 1 year (12 months) from the date of AWB or Bill of Lading issued. In case of defects during warranty, we will send you spare parts for changes for free. If it is man-made problems, we have to charge neccesary cost of spare parts if need.
• Any problem during operation, you can contact us freely, we are delight to help you.
