Specifications
fractional rf dot matrix rf1.Wrinkle removal
2.CO2 fractional laser
3.Air+water+semiconductor cooling system
Popular most popular fractional rf dot matrix rf
Fractional laser is the newest and hottest laser technique in the last two years and also attracts the most attention of hairdressing technology all over the world. it is a micro-invasive treatment between invasive and noninvasive. Fractional laser was called fractional Photothermolysis with English theory, which was first expressed by Dr. Rox Anderson, a laser medicalspecialist of Harvard University, in 2004. Immediately, that was agreed by specialist all over the world and applied to the clinical treatment reapidly.
Fractional Photothermolysis is a stretch theory of traditional Selective Photothermolysis. Not only the rapid and remarkable effect with invasive therapy, but also the advantage of less side effects and short recovery time with noninvasive.
Applications of fractional rf dot matrix rf
- Skin renewing and resurfacing;
- Skin tightening;
- Acne and acne scar removal;
- Smooth burnt scars and surgery scars, dermabrasion etc-;
- Remove intractable chloasmas and pigmentation;
- Sun damage recovery
Action principle

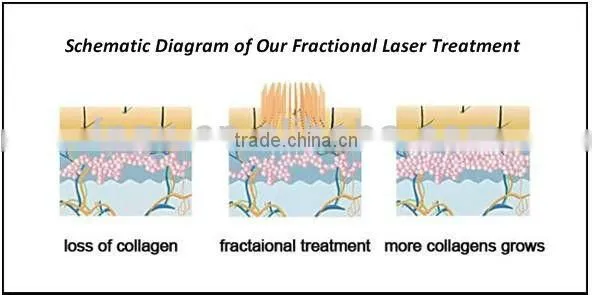

Fractional laser treatment is using laser drilling tiny holes on skin evenly, which cause a series of skin biochemical reactions. Achieving refirming, tender skin and remove stain. As fractional laser treatment can only cover partial skin tissue and the new drilled holes won't overlap with each other, part of normal skin gets reserved to speed up recover. The patient will return to normal life in four or five days. The therapy itself is safe and can cure any part of the body. The indication include acne scars, stain, surgery scars, traumatic scars, scalded scars, chloasma, civatte poikiloderma, wrinkle, flabby, light aging and etc. These clinical application are used in domestic and international with confirmed efficacy.
Main features
1. with 8.4 inches large-colored touch screen. Comprehensive Operator Interfaces greatly simplify the time of learning so as to bring our client economic benefit more effectively.
2. Maximum output power of 30W, ensuring the clinical demand of maximum output power, thus safeguarding validity of a single monopulse peeling various skin organizations and best effect.
3. The unique fractional output. Application of galvanometer scanning mode actively provide as much as seven speckle patterns that guarantee each part gets evenly in the facial.
4. The unique choice of focal spot density. Doctors can choice treatment area of exfoliative organization freely, which could easily hold the patient of appeal, tolerance and postoperative complications.
5. The unique Atlantic technology. CO2 fractional laser can change to CO2 Ultra Pulse laser by switching interface easily.
6. Equipped with various treatment tools. To satisfy different parts of the organization in different treatment needs.
Parameters of fractional rf dot matrix rf
| Laser Type | Carbon Dioxide Fractional Laser |
| Laser Wavelength | 10600nm |
| Laser power | up to 40W(optional) |
| Light system | 7 joint arms |
| Pulse Duration | 100-5000us |
| Facula | single mode |
| Focussed diameter of the beam | 0.25mm |
| Focal area | 0.05mm2 |
| Output form | Ultra Pulse, fractional |
| Work Mode | Intermittent loading |
| Scanning Mode | Sequence, random, parallel (switchable) |
| Scanning Shapes | Triangle/square/rectangle/round/ oval/hexagon/linear |
| Area of diagram | ≤20mm*20mm |
| Interface Colorful Touch Screen | 8.4 inch |
| Refrigerating system | Air-cooling, water-cooling |
| Input Power | AC 230V±10%,50HZ/ AC 110V±10% 60HZ |
| Net weight | 50Kg |
| Gross weight | 62Kg |
More Pictures of fractional rf dot matrix rf
The Package - Air box
Our service
1.Your inquiry related to our products or prices will be replied in 24 hrs.
2.Well-trained and experienced staffs to answer all your inquires in fluent English
3.OEM&ODM, any your customized products we can help you to design.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information.
Warranty:We have 1 years Warranty,lifetime maintenance.Within warranty, we offer free repairingservice and provide replacement parts for free.
